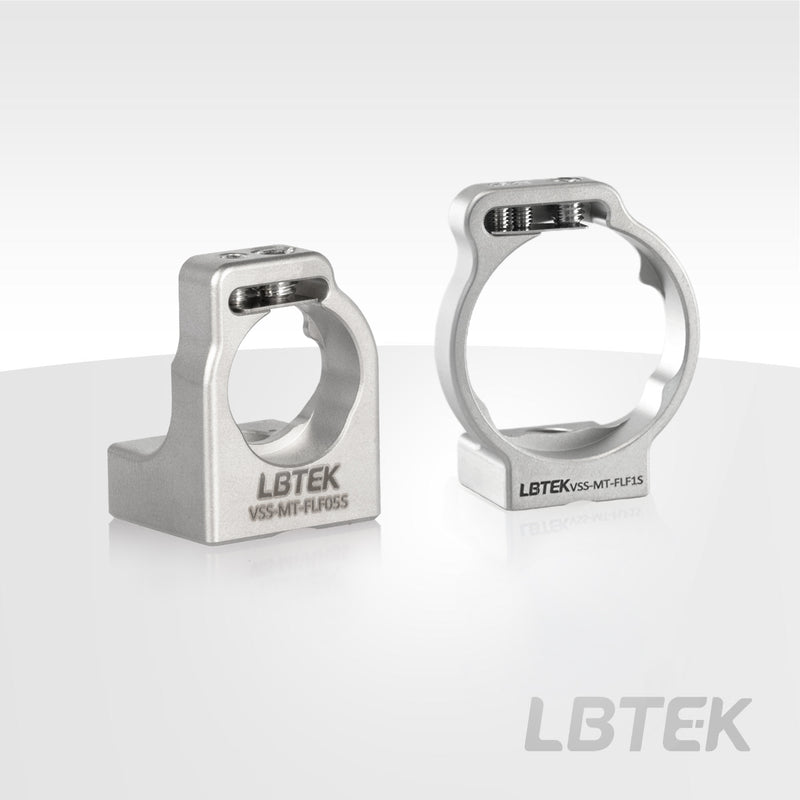

Fixed vacuum-compatible optical component mount VSS-MT-FLF1S

LBTEK Fixed Vacuum Stainless Steel Optical Mount is designed for mounting optical components with a diameter of Ø12.7 mm or Ø25.4 mm. The optical component mounting slot features a cutout to increase the clear aperture, making it particularly suitable for installing beam splitters at a 45° angle of incidence, as well as mirrors. The optical component is secured by flexible spring leaves and fixing screws, ensuring stable mounting. The VSS-MT-FLF1S/VSS-MT-FLF05S mount accommodates optical components with a minimum thickness of 2 mm/2 mm, provides a clear aperture of 23 mm/11.5 mm, and has a center distance of 19 mm from the base to the optical component. The mount base includes M4 threaded mounting holes and comes with M4 vacuum screws (with air holes) for connecting to Ø12.7 mm or Ø25 mm vacuum optical posts.
