Free-space displacement adjustment mount TXY2-N

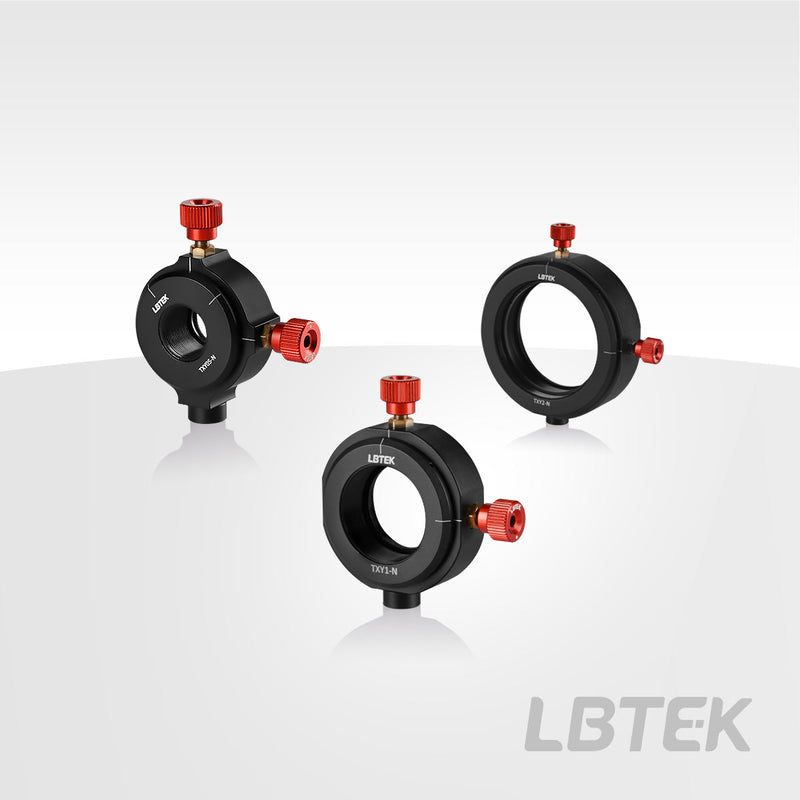

        LBTEK's XY translation mounts can accommodate Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm optical components. The product series offers precise adaptation solutions for different sizes of optical components: the TXY05-N can mount Ø12.7 mm optical components with a maximum thickness of 10.3 mm; the TXY1-N is suitable for Ø25.4 mm optical components with a maximum thickness of 7.5 mm; while the TXY2-N supports Ø50.8 mm optical components with a maximum thickness of 13 mm. All mounts in the series use SM series threads to secure optical components, making them compatible with almost all components featuring external SM threads, and they also match with various SM05, SM1, and SM2 lens tubes.
        The core adjustment components of the product utilize M4×0.2 precision adjustment screws, providing up to ±1 mm of adjustment travel perpendicular to the optical axis. The translation resolution of the adjustment screws reaches 200 microns per revolution. When paired with a high-precision adjuster, equally precise fine adjustments can be achieved. Each adjustment screw features a hex socket at its end, allowing for small incremental fine-tuning with a hex key, making operation convenient and efficient. The bottom of the mount is equipped with M4 mounting holes, enabling direct connection to posts, simplifying the installation process and improving experimental setup efficiency.
        Please note that when adjusting in the XY directions, the central SM threaded hole will rotate. This rotation can be performed manually or by using the wrench hole on the top.
