Free-Space Filter Wheel Mounts FWM12S
✔ In Stock — Ships Today

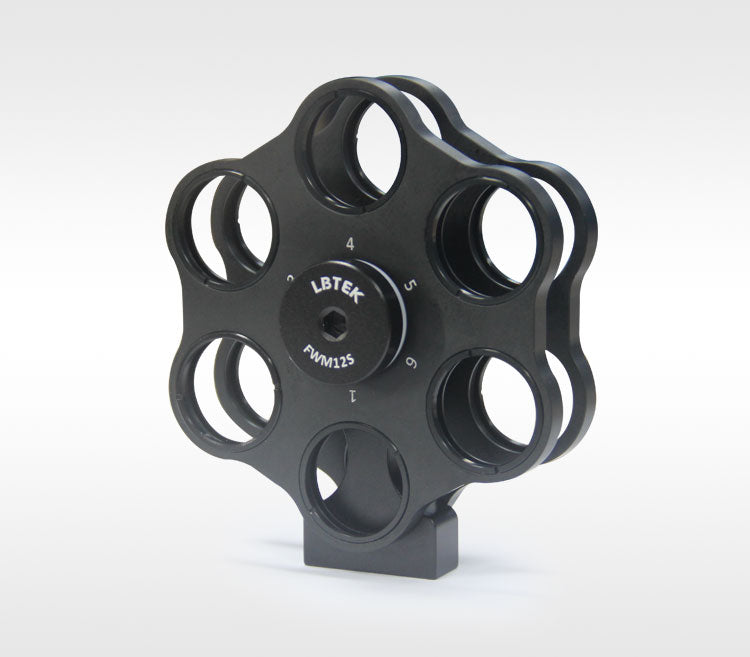

LBTEK Free-Space Filter Wheel Mount, designed for 25.4 mm diameter optical components, includes 12 SM1R retaining rings. The minimum rotation angle per step is 30°, with 360° continuous rotation capability. The filter wheel base features 2 M4 threaded holes and 1 M6 threaded mounting hole, allowing direct support by LBTEK stainless steel optical posts or integration with LBTEK mounting bases (such as the PB-X series) for direct fixation on breadboards or optical experiment platforms.
Key Features
- Compatible with optical components diameter: Ø25.4 mm
- Number of filters: 12
- Minimum rotation angle of the wheel: 30°
- Bottom threaded holes: M4 and M6
Application
The Free-Space Filter Wheel Mount is often on a Ø25 mm optical post with a base.
| Main material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Applicable optical element diameter | Ø25.4 mm |
| Degrees of freedom (displacement) | SM1 internal thread |
| Attribute 529 | 12 |
| Maximum applicable thickness of optical components | 3.6 mm |
| Bottom mounting threaded hole specification | M4/M6 |
| Inner Diameter (ID) | SM1R/12 pcs |
| Attribute 688 | 25.4±0.1mm |
| Attribute 689 | 30° |
| Attribute 531 | No |
Product Family: Free-Space Filter Wheel Mounts (1 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Free-Space Filter Wheel Mounts FWM12S Current |
FWM12S
| — | — | — |
