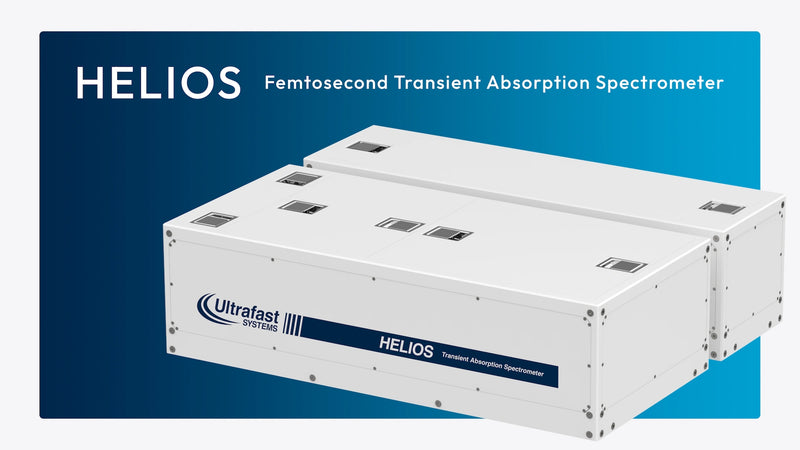

HELIOS is an automated femtosecond transient absorption (pump–probe) spectrometer designed to work with a wide range of amplified femtosecond lasers, including high-energy Ti:Sapphire amplifiers and high repetition-rate Yb amplifiers. Combined with a patented optical delay line and FastScan acquisition, it delivers broad UV–SWIR probe coverage with sub-3 fs delay resolution and a high level of automation and user-friendliness.
Key Features
- Broad probe spectral range spanning UV, VIS, NIR and SWIR (280–2400 nm)
- Automated switching between UV, VIS, NIR and SWIR detection
- Automated pump-beam alignment and automated optical-delay-line alignment
- FastScan continuous acquisition — every pulse registered; ~3× faster data collection even at 1 kHz
- Patented optical delay line: 8 ns window, 2.8 fs resolution, >10 ns/s scan speed
- Rapid full-surface previews ideal for photodegradable samples
| Models | Specification |
|---|---|
| Technique | Femtosecond pump-probe transient absorption |
| Probe Spectral Range (Ti:Sapphire pump) | 280–2400 nm (UV / VIS / NIR / SWIR, configurable) |
| Probe Spectral Range (Yb pump) | 350–2000 nm (configurable) |
| Delay Line — Time Window | 8 ns |
| Delay Line — Resolution | 2.8 fs |
| Delay Line — Max. Speed (FastScan) | >10 ns/s |
| Delay Line — Acceleration | > 260 ns/s² |
| Automated Alignment Time | 3–5 min |
| Beam Pointing Drift | <10 µm over 8 ns delay range |
| Spectral-Range Switching | Automated UV / VIS / NIR / SWIR |
| Compatible Lasers | Ti:Sapphire & high-rep-rate Yb amplifiers |
Probe coverage around the fundamental (~800 nm Ti:Sa, ~1030 nm Yb) requires manual filter adjustment.
Configuration is application-dependent — contact WaveQuanta for a tailored quotation.
Source: Ultrafast Systems manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
