Helium-Neon Lasers LGK7665P
LGK7665P$6,537.06
In Stock
Key Specifications
Wavelength
632.8nm
Avg Power
0.015W
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH

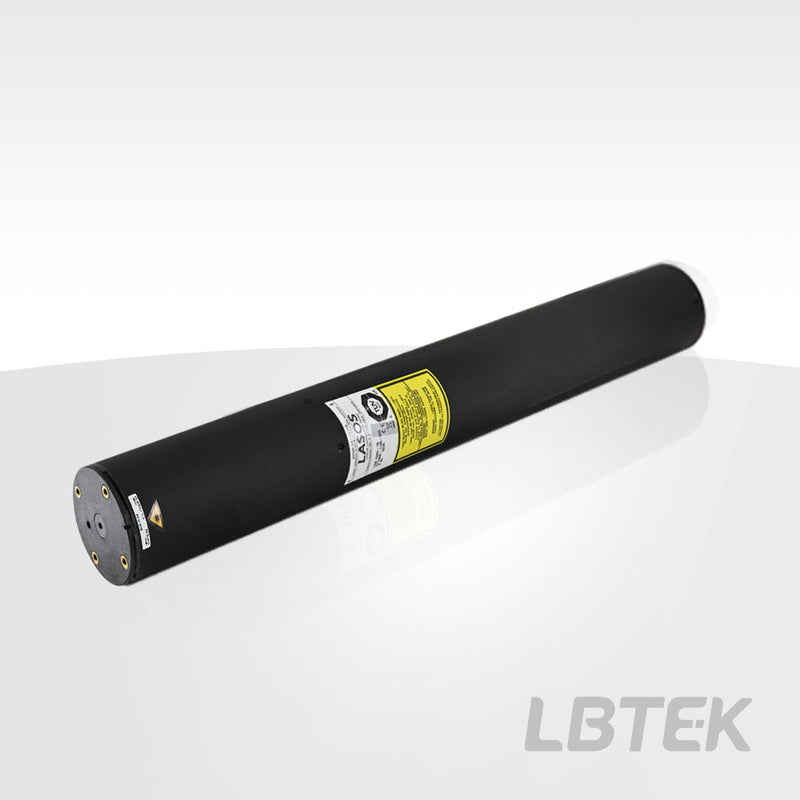

The LGK7665P from LBTEK is a tubular helium-neon laser delivering ≥15 mW of randomly polarized output at 632.8 nm. Its rugged tube design with separate AC power supply enables plug-and-play integration, while the long-lifetime gas tube and stable single-line emission make it the workhorse of precision metrology, alignment, interferometry, holography, and polarization-sensitive experiments.
Typical Applications
- Precision metrology & alignment
- Optical interferometry
- Holography
- Fluid flow velocimetry (LDV)
- Polarization-sensitive experiments
- Education and laboratory demonstrations
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength | 632.8 nm |
| Output Power | ≥15 mW |
| Polarization | Random |
| Beam Type | TEM00 (single transverse mode) |
| Design | Tubular (lab-grade) |
| Lead Time | Contact |
Lead Time: Contact. Listed price is reference; contact our sales team for B2B quote.
| Center Wavelength | 632.8 nm |
| Average Power | 0.015 W |
No documents available for this product.
No CAD drawings available for this product.
Product Family: Helium-neon laser (16 variants)
