High Performance Bandpass Filters, FWHM=25 nm — Model ET395/25x

ØØ25.0 mm.

Product Description

• Stopband Optical Density: OD5, OD6
• FWHM: 10 nm, 25 nm, 50 nm
• Center Wavelength: 365 nm-1064 nm
• Outer Diameter 25.0 mm, with Mechanical Retaining Ring
• High Environmental Tolerance, Long Service Life

LBTEK offers CHROMA high-performance bandpass filters with a diameter of 25 mm and a mechanical retaining ring. The bandpass filter only allows complete transmission at the center wavelength, with a blocking range optical density as high as OD5 and OD6. The CHROMA high-performance bandpass filters provided by LBTEK utilize magnetron sputtering coating technology, featuring high transmittance, high blocking depth, and high steepness. In applications with high signal-to-noise ratio requirements, such as fluorescence imaging, using high-performance bandpass filters can effectively block stray light to reduce background noise, while efficiently transmitting the sample's own fluorescence to maximize the collection of effective signals, resulting in better imaging performance.

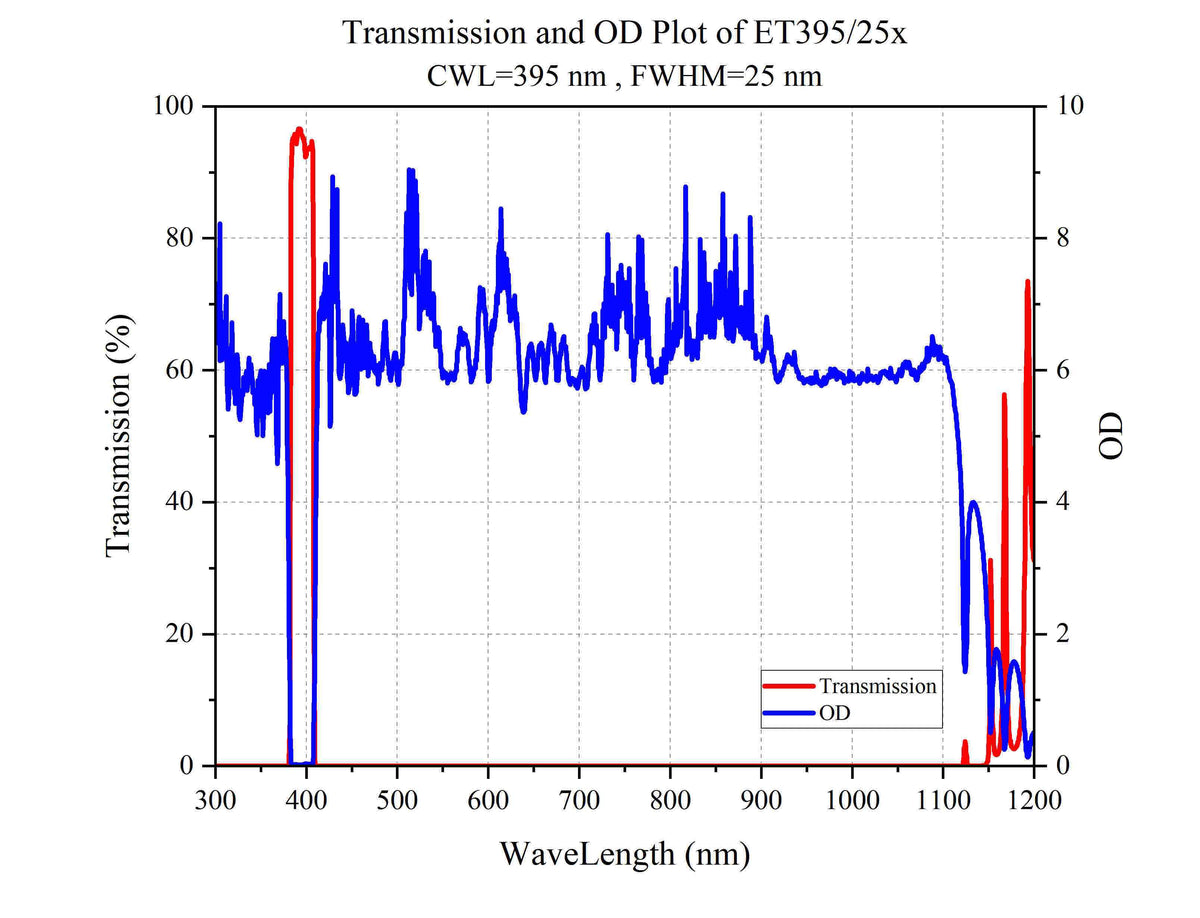

High Performance Bandpass Filters, FWHM=25 nm

• Center Wavelength: 395 nm-580 nm
• FWHM: 25 nm
• Transmittance: >90%
• Stopband Optical Density: OD5, OD6

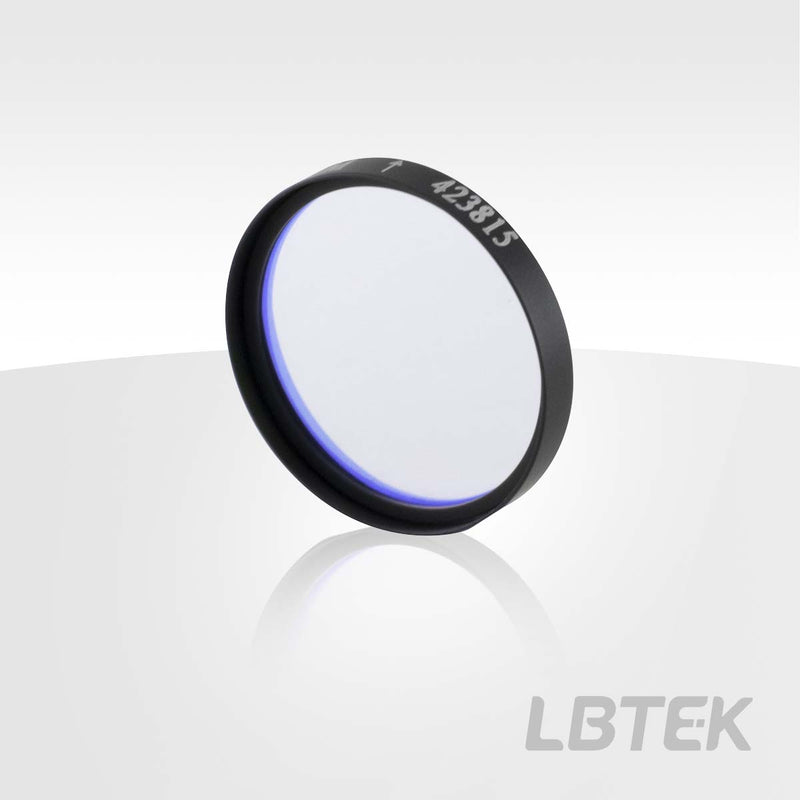

LBTEK offers CHROMA High Performance Bandpass Filters with a diameter of 25 mm and mechanical retaining rings. The mechanical retaining rings are marked with arrows indicating the incident direction, with light coming along the arrow direction for easy installation and use. When used at incident angles deviating from the design angle, the center wavelength may shift. It is recommended to use them at the designed angle.
