High-Performance Engineering Diffuser ED25Q-C-20

Overview

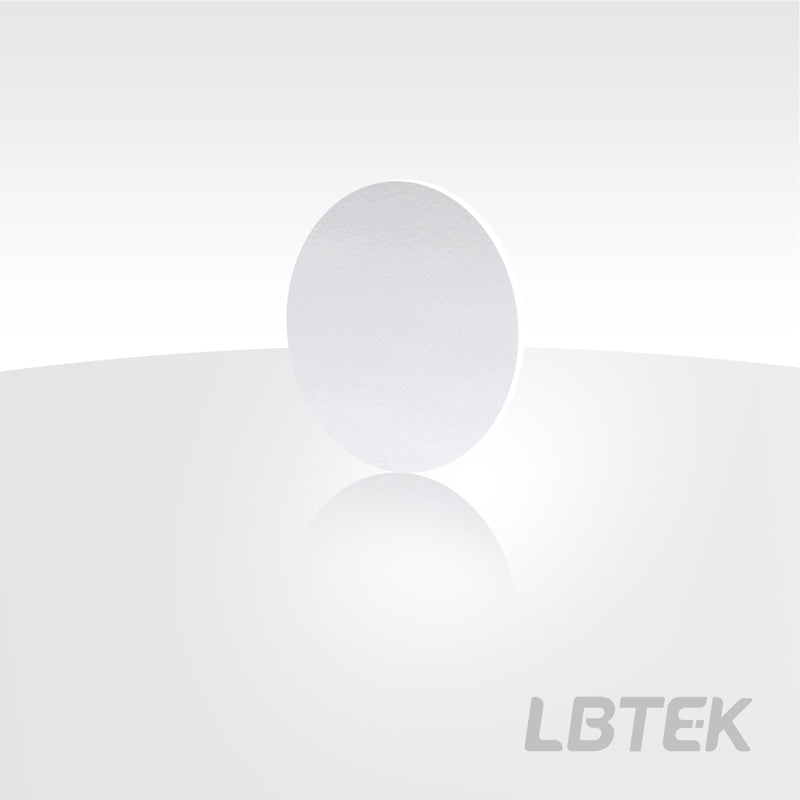

The ED25Q-C-20 is a high-performance engineered diffuser that shapes an incident beam into a well-defined circle spot while homogenizing its intensity profile. A precision micro-structured surface is formed on a Corning 7980 HPFS substrate, giving a 20°±2.0° scattering angle across the 193 nm-2000 nm operating range. The 25.4 mm element is 1.0 mm thick and offers a >92%CA clear aperture, so it can be dropped straight into a standard 25.4 mm mount.

Applications

• Laser beam homogenization and flat-top illumination
• Machine vision and structured illumination
• LiDAR and 3D sensing transmitter optics
• Display backlighting and general beam shaping

Construction & Performance

Unlike a ground-glass diffuser, the micro-structure is deterministic, so the output spot keeps its circle shape and the scattered energy stays inside the specified cone instead of spreading into a wide random halo. Transmittance is >90% and the refractive index is 1.457 @ 633 nm. Diameter tolerance is ±0.1 mm and thickness tolerance is ±0.1 mm. Key specifications for this model:

• Diameter: 25.4 mm
• Overall Thickness: 1.0 mm
• Operating Wavelength: 193 nm-2000 nm
• Spot Shape: Circle
• Material: Corning 7980 HPFS
• Clear Aperture: >92%CA
• Scattering Angle: 20°±2.0°
• Diameter Tolerance: ±0.1 mm
• Thickness Tolerance: ±0.1 mm
• Transmittance: >90%
• Refractive Index: 1.457 @ 633 nm
• Numerical Aperture: >0.70

Storage & Handling

Handle the diffuser by its edges and keep the structured surface free of dust and fingerprints; the micro-structure is more delicate than a polished glass surface, so avoid abrasive wiping. When cleaning is unavoidable, blow off loose particles first and then use clean optical-grade solvent with lens tissue. Note the orientation of the structured face when mounting, and store the part in its original container in a clean, dry environment away from direct sunlight.
