High-Power Laser Line Polarizing Beamsplitter Cubes MPBS24-808-HP

Name: High-Power Laser Line Polarizing Beamsplitter Cubes MPBS24-808-HP
Brand: WaveQuanta
SKU: MPBS24-808-HP
Price: 1080.56 SGD
Availability: InStock

MPBS24-808-HP

$1,080.56

In Stock

Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more

View all 49 calculators →

RoHS REACH

High-Power Laser Line Polarizing Beamsplitter Cubes — Model MPBS24-808-HP

UV Fused Silica, PBS cube, optimized for 808 nm, cube size 25.4 mm×25.4 mm×25.4 mm, extinction ratio >2000:1.

Overview

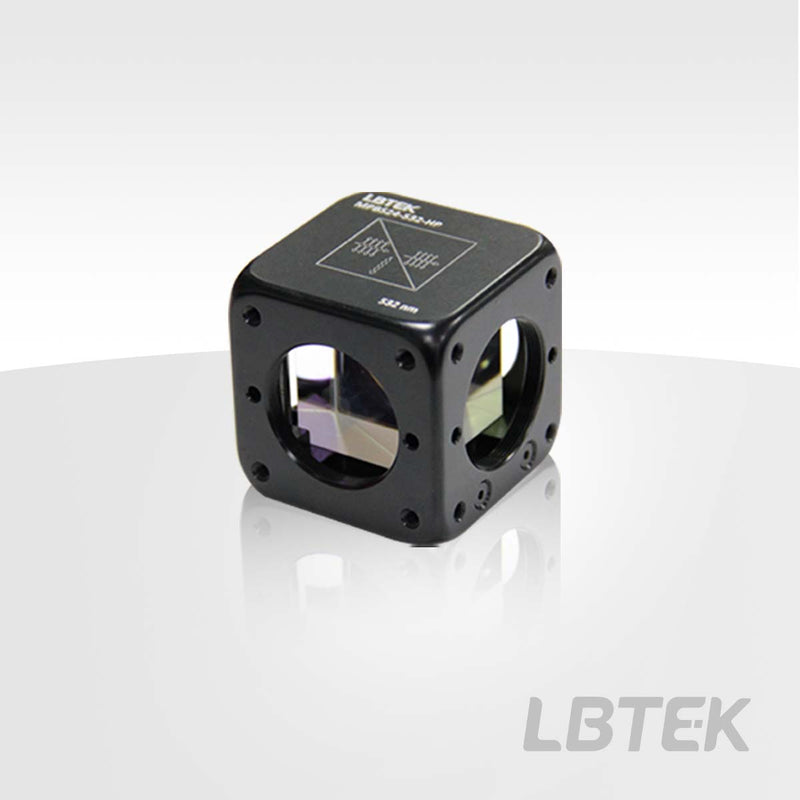

LBTEK provides multiple operating wavelengths from 266 nm to 1550 nm. LBTEK mounts the 25.4 mm high-power laser line polarizing beamsplitter cube inside a cubic housing compatible with 30 mm cage systems. A scribe line on the top face marks the beam direction. The housing provides M3 threaded holes on the side for compatibility with 30 mm cage systems, and four SM1 internal-thread ports for simultaneous compatibility with 25.4 mm lens tubes. The base of the cube also provides M4 threaded holes for post mounting.

Key Features

Extinction ratio (Tp:Ts) >2000:1
Spectroscopic film: Tp>97%, Rs>99.5%
AR coating: V-type AR coating, Ravg <0.25%@808 nm
Substrate: UV Fused Silica
Transmitted wavefront error: λ/4
Surface quality: 20/10

Applications

Laser polarization control and beam separation
High-power laser systems requiring stable polarization extinction
Interferometry and polarimetry setups
Optical isolators and magneto-optic modulators
Polarization-sensitive imaging and spectroscopy

Optical component material	UV Fused Silica
Size	25.4 mm×25.4 mm×25.4 mm
Operating Wavelength	808 nm
Extinction ratio (Tp:Ts)	>2000:1
Clear Aperture	80% CA
Transmitted Wavefront Error (TWE) (@633 nm)	λ/4
Surface finish (scratches/pits)	20/10
Spectroscopic film	Tp>97%, Rs>99.5%
Anti-reflective coating	V-type AR coating, Ravg <0.25%@808 nm

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

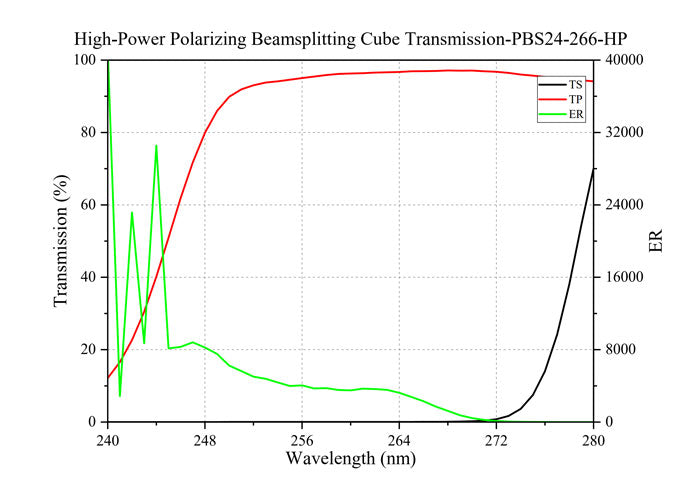

Curve 1

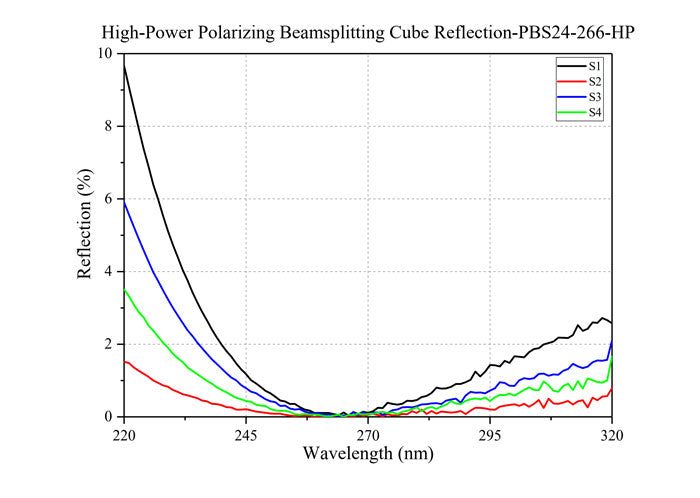

Curve 2

Curve 3

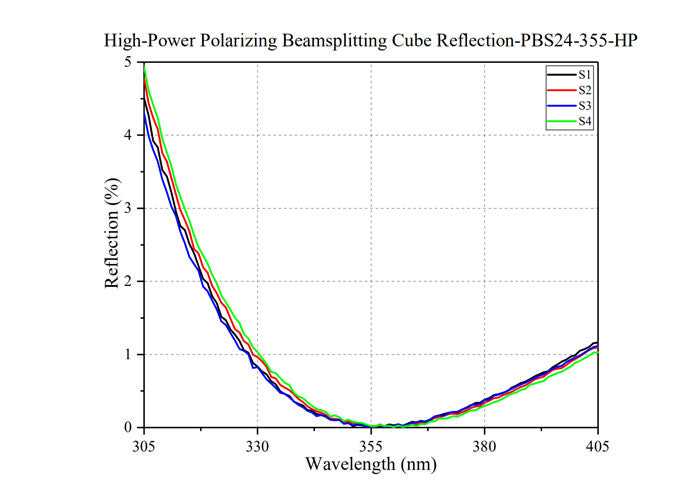

Curve 4

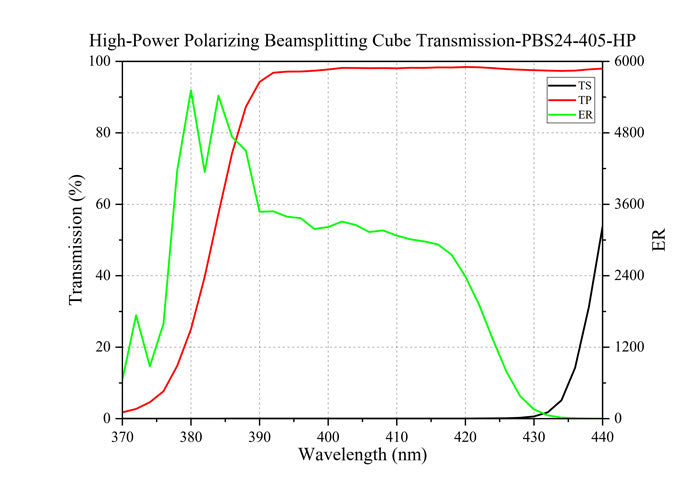

Curve 5

Curve 6

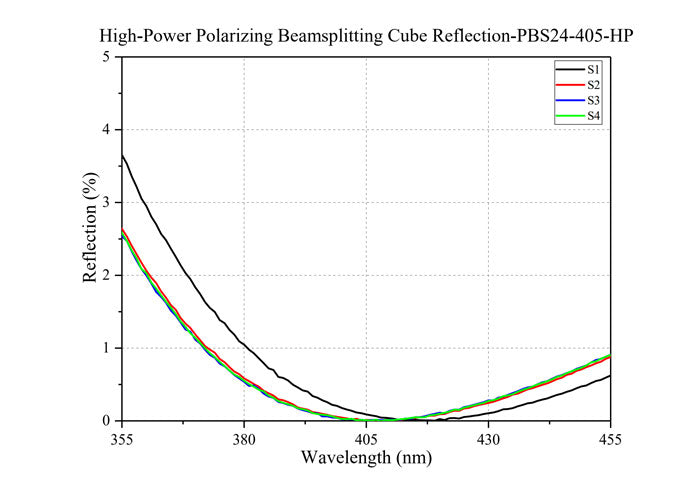

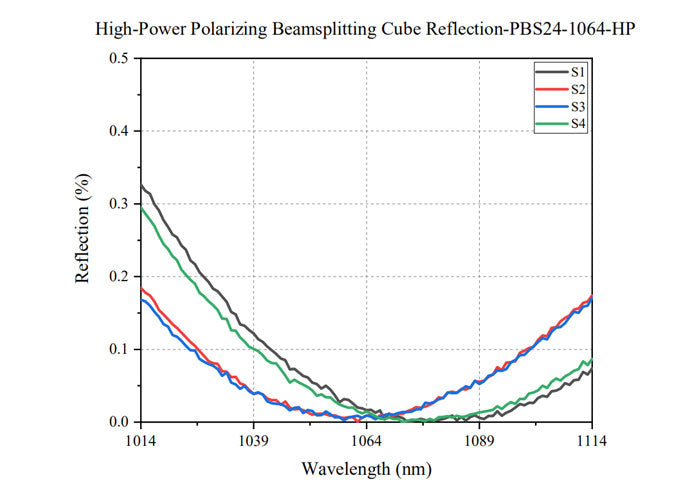

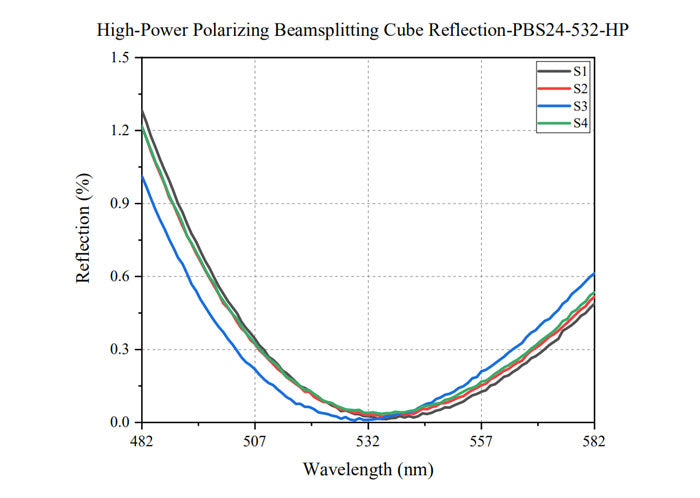

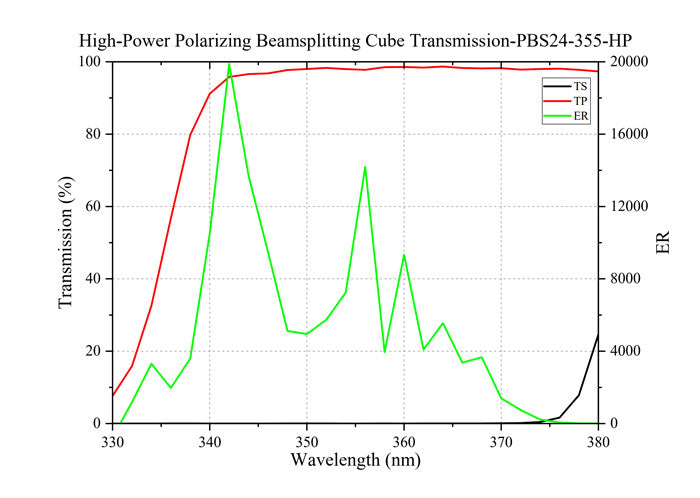

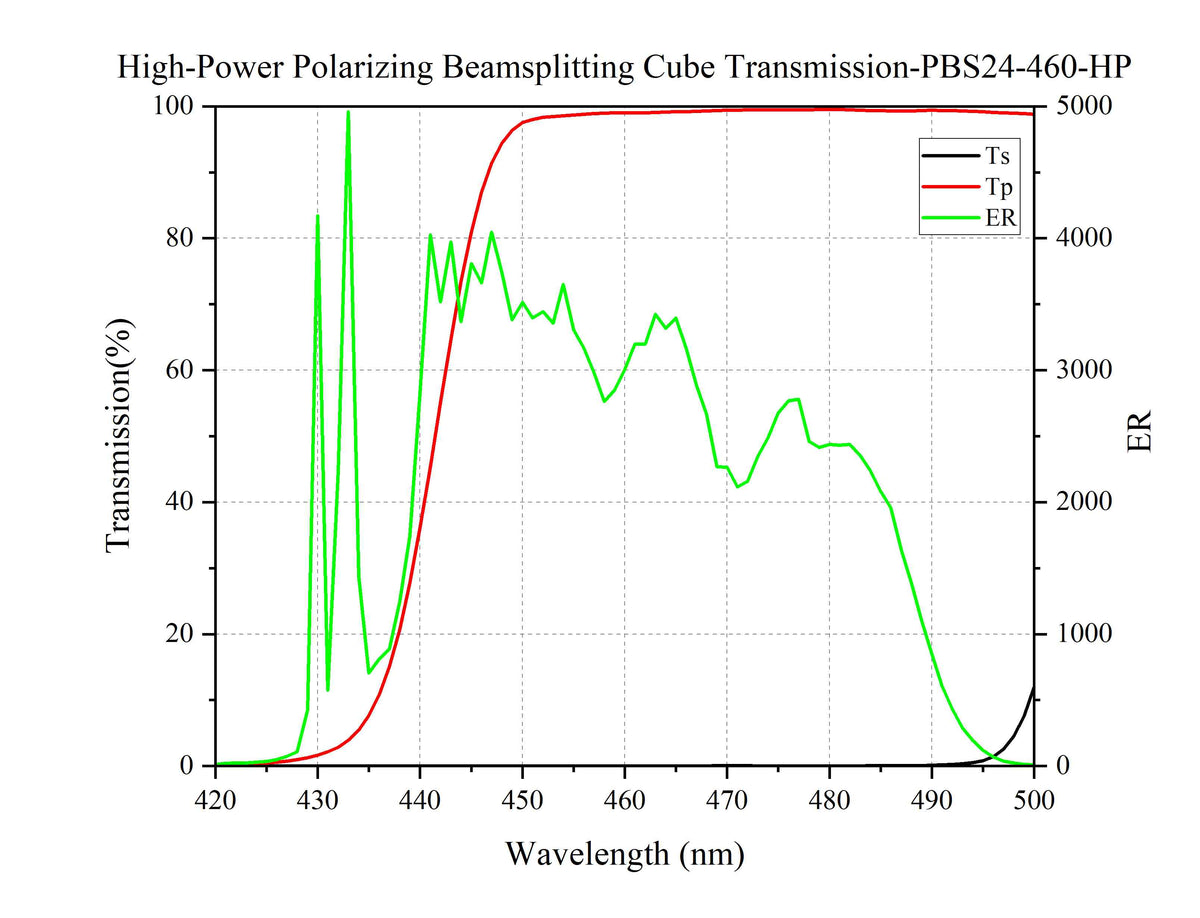

Curve - T-PBS24-460-HP

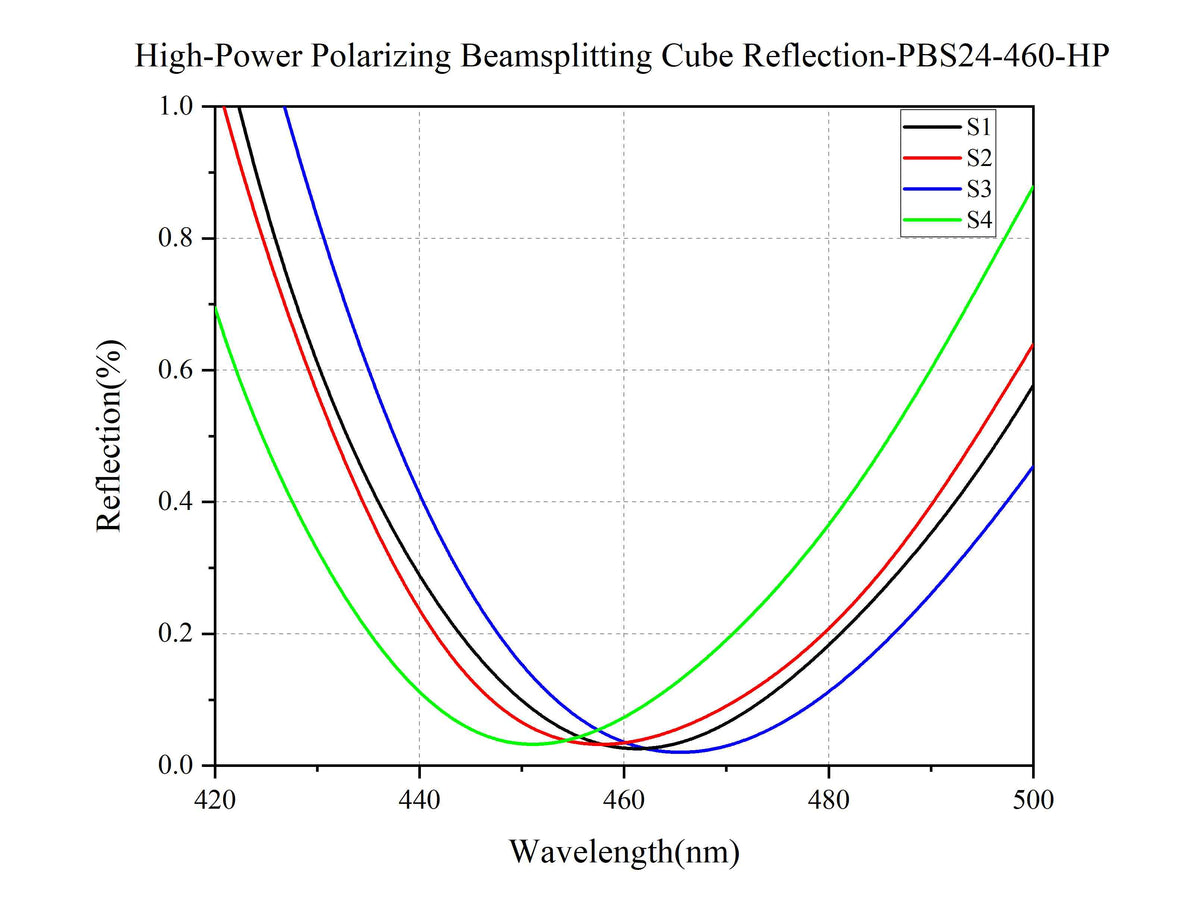

Curve - R-PBS24-460-HP

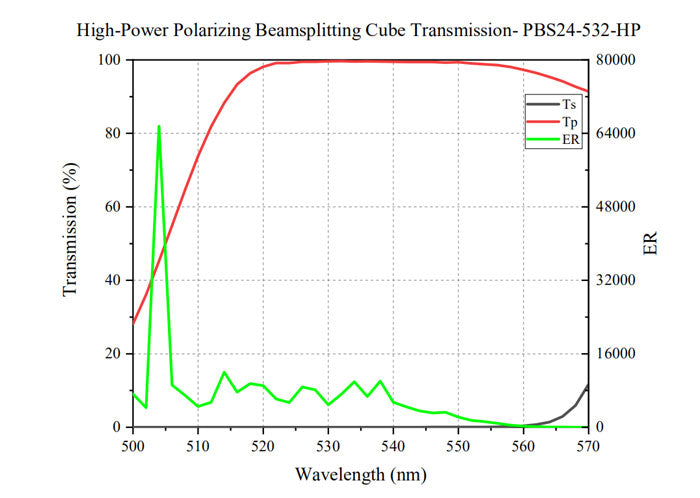

Curve 9

Curve 10

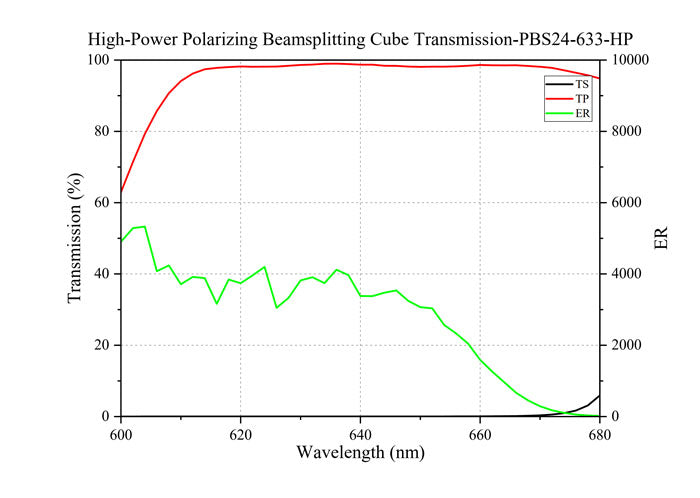

Curve 11

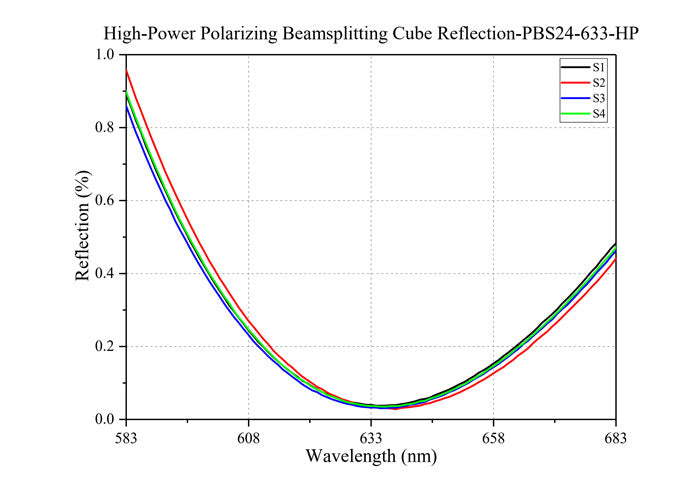

Curve 12

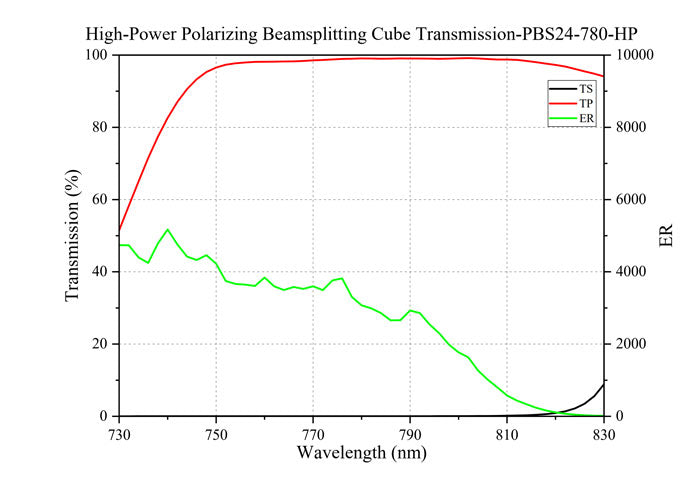

Curve 13

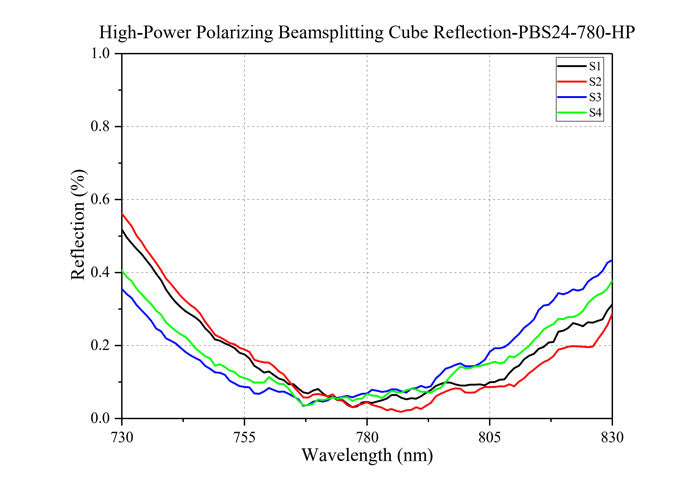

Curve 14

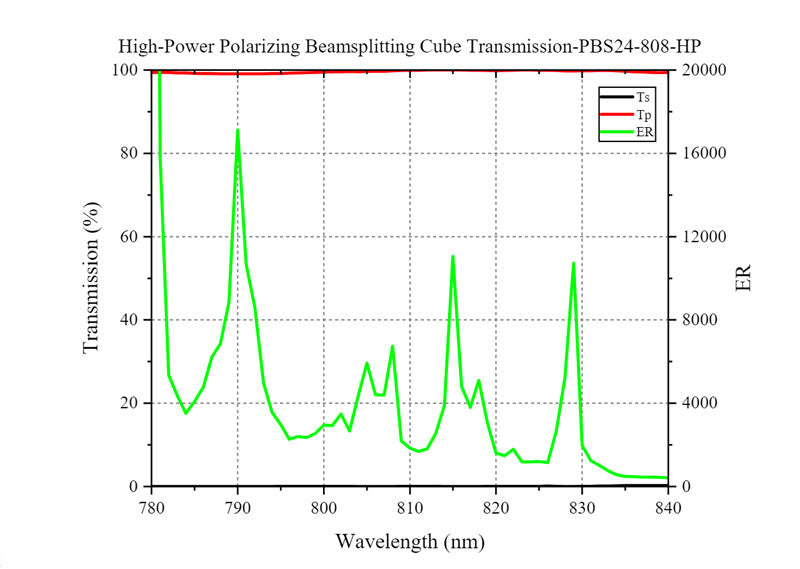

Curve 15

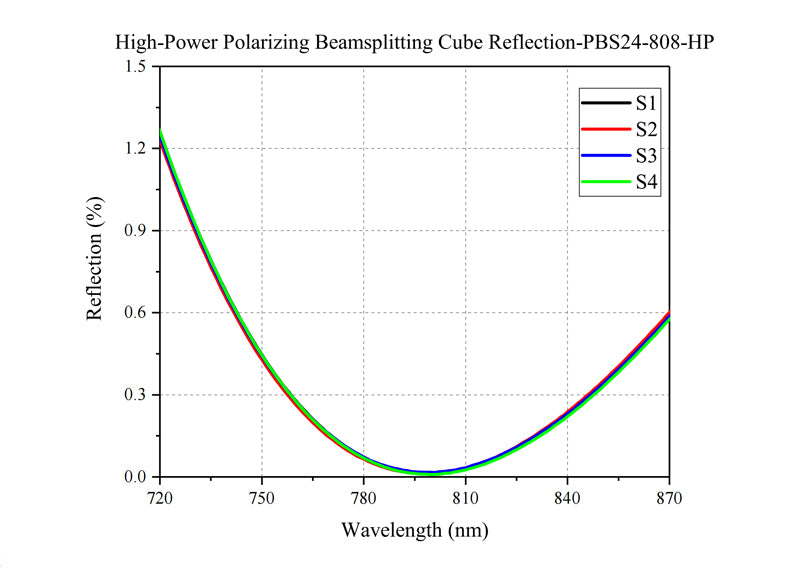

Curve - High-Power Polarizing Beamsplitting Cube Reflection-PBS24-808-HP

Curve 17

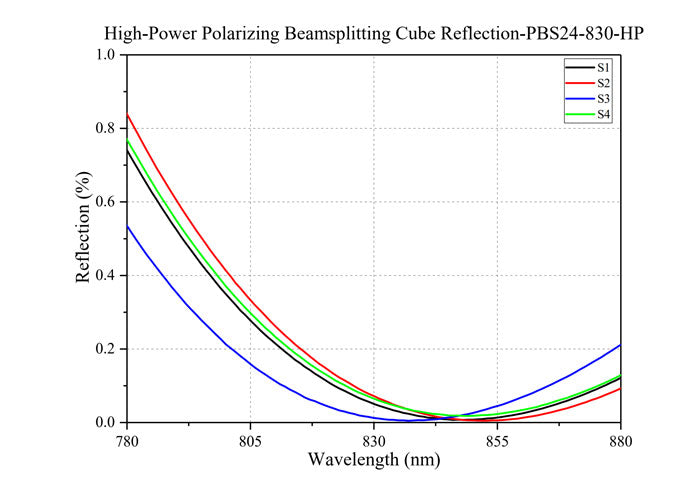

Curve 18

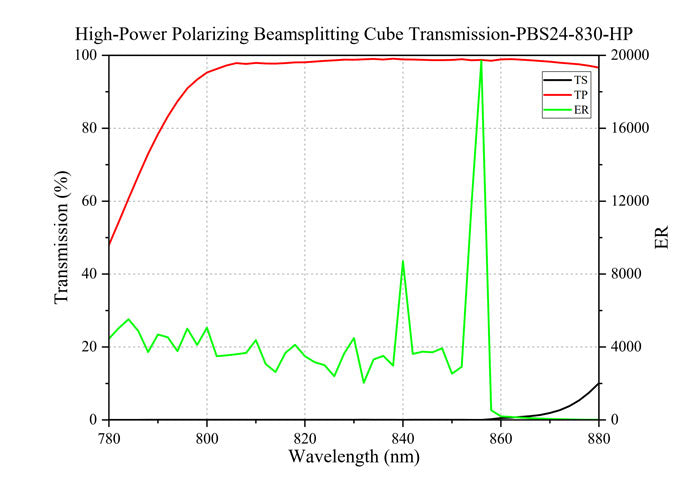

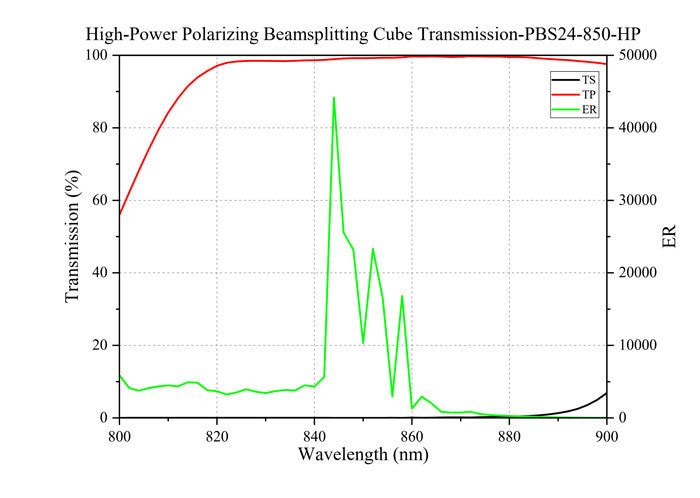

Curve 19

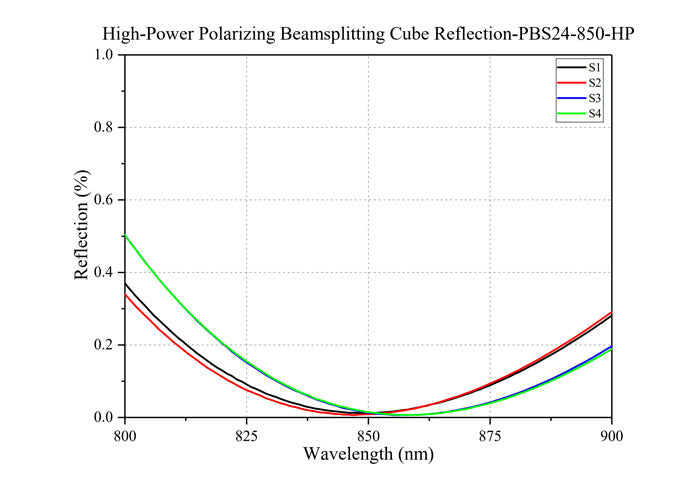

Curve 20

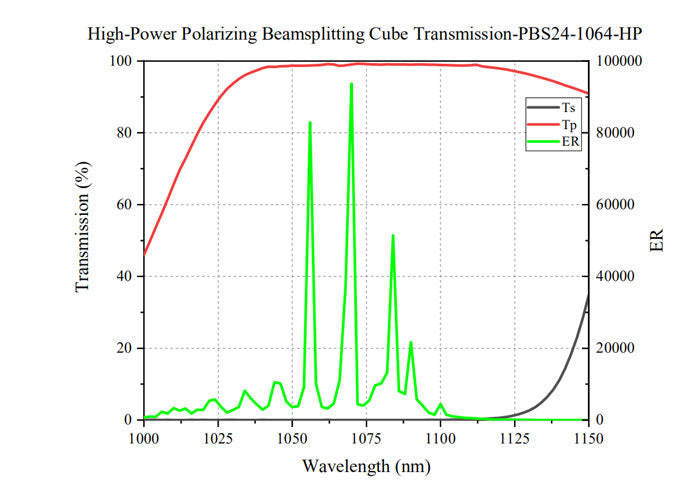

Curve 21

Curve 22

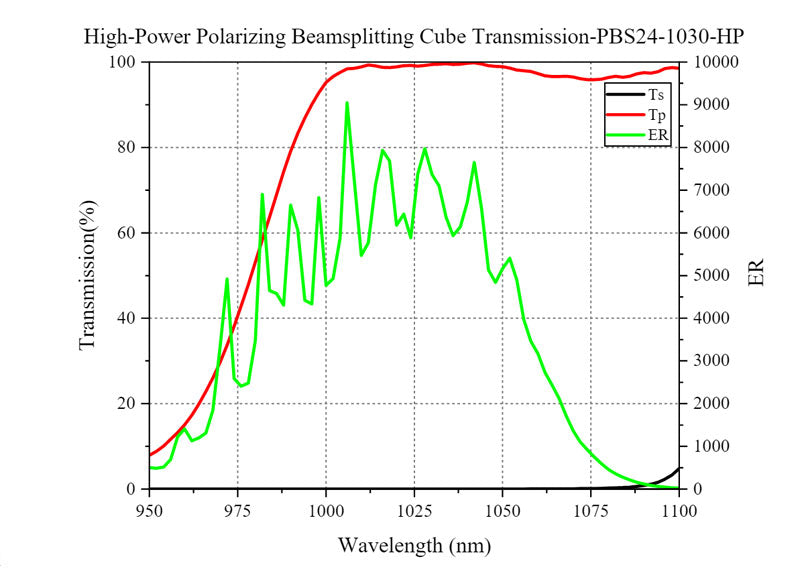

Curve - T-PBS24-1030-HP

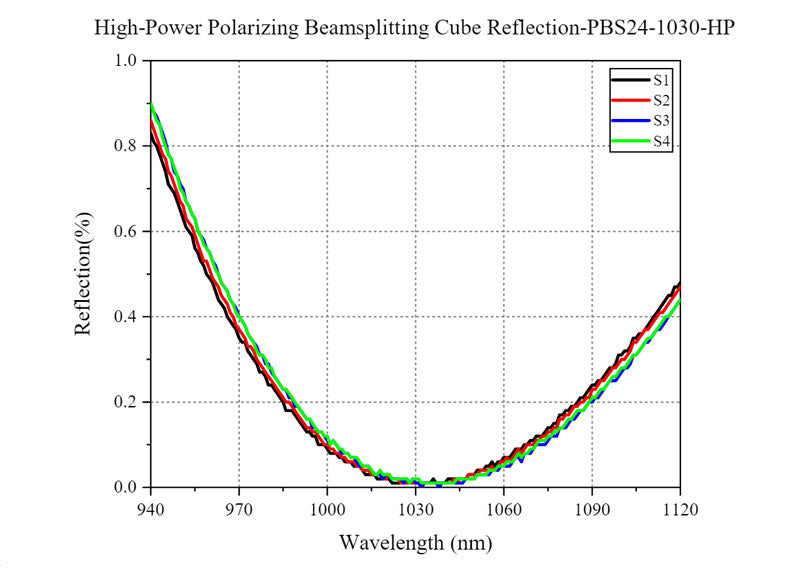

Curve - R-PBS24-1030-HP

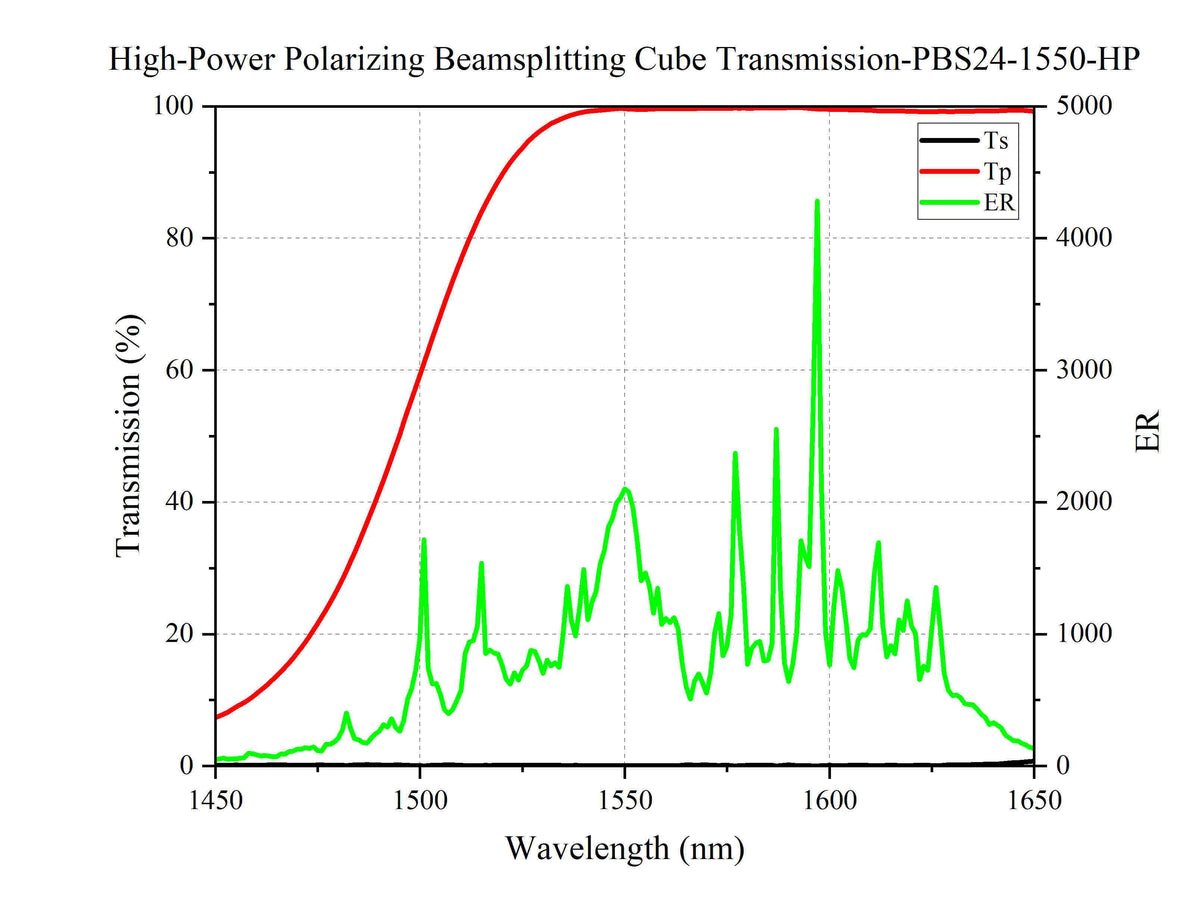

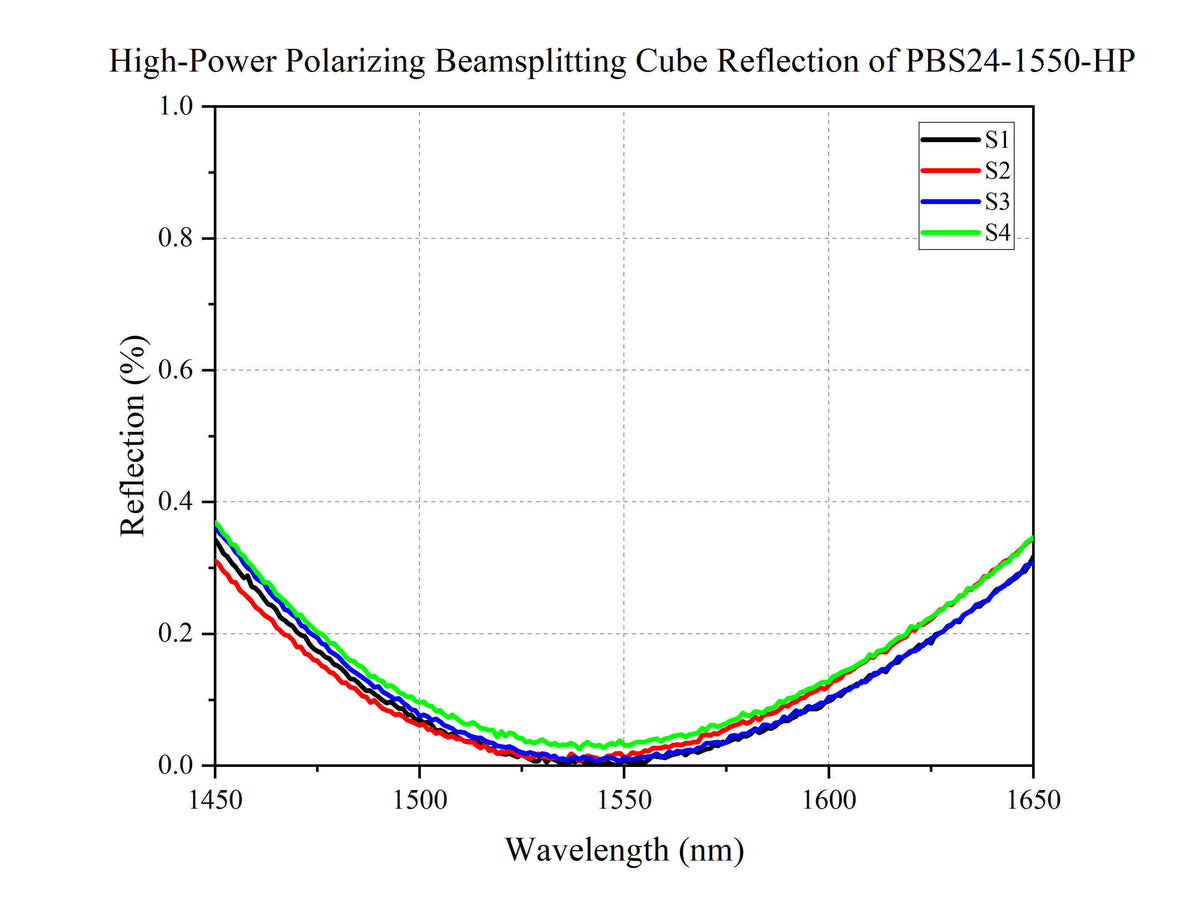

Curve - High-Power Polarizing Beamsplitting Cube Transmission of PBS24-1550-HP
