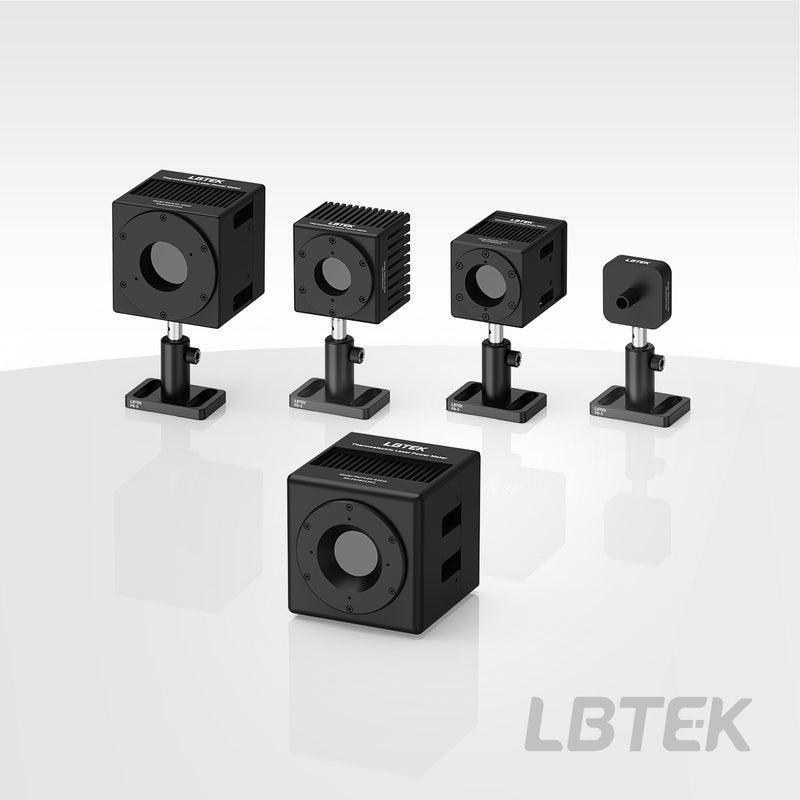

High Power Thermoelectric Laser Power Meter PMTC30-150W
PMTC30-150W$4,099.02
In Stock· Ships in 5.0 weeks
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
PMTC30-150W
Thermoelectric Power Sensor — 220 nm-22 μm, 50 mW-150 W
Overview
The PMTC30-150W is a thermoelectric sensor head for high-power laser measurement with passive cooling. Covers 220 nm-22 μm wavelength range with 50 mW-150 W power range and 30 mm mm aperture.
Key Features
- Wavelength: 220 nm-22 μm
- Power range: 50 mW-150 W
- Aperture: 30 mm mm
- Resolution: 5 mW
- Accuracy: ±3 %
- Cooling: 风扇冷却
- CW damage threshold: 24 kW/cm^2
Applications
- Industrial laser power monitoring
- Laser system calibration
- High-power laser characterization
- Process control
| Power Range | 50 mW-150 W |
| Wavelength range | 220 nm-22 μm |
| Clear Aperture | 30 mm |
| Minimum Power Resolution | 5 mW |
| Measurement Accuracy | 3 % |
| Nonlinearity | 1 % |
| Energy Range | 2-100 J |
| Cable Length | 1.5 m |
| Cooling method | Fan cooling |
| Maximum Power Density | 24 kW/cm2 |
| Damage Threshold | 0.3 J/cm2,1064 nm,1 ns |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: High Power Thermoelectric Laser Power Meter (6 variants)
| Product | SKU | Clear Aperture | Wavelength range | Power Range | |
|---|---|---|---|---|---|
| High Power Thermoelectric Laser Power Meter PMTC40-600W |
PMTC40-600W
| 40 mm | 220 nm-22 μm | 600 mW-600 W | View |
| High Power Thermoelectric Laser Power Meter PMTC40-400W |
PMTC40-400W
| 40 mm | 220 nm-22 μm | 400 mW-400 W | View |
| High Power Thermoelectric Laser Power Meter PMTC40-250W |
PMTC40-250W
| 40 mm | 220 nm-22 μm | 100 mW-250 W | View |
| High Power Thermoelectric Laser Power Meter PMTC30-150W Current |
PMTC30-150W
| 30 mm | 220 nm-22 μm | 50 mW-150 W | |
| High Power Thermoelectric Laser Power Meter PMTC30-60W |
PMTC30-60W
| 30 mm | 260 nm-25 μm | 50 mW-60 W | View |
| High Power Thermoelectric Laser Power Meter PMTC10-5W |
PMTC10-5W
| 10 mm | 220 nm-22 μm | 100 μW-5 W | View |
