High-Resolution Fiber Optic Spectrometers BIM-6602A
BIM-6602ASold Out
Out of Stock
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Overview

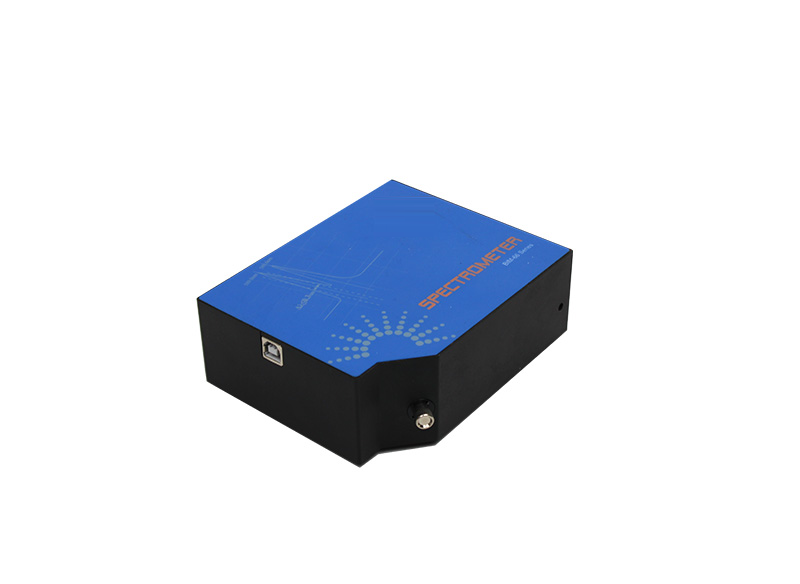

The BIM-6602A is a high-resolution, fiber-coupled spectrometer covering UV-VIS-NIR (180-1100 nm) with an optimal optical resolution of ~0.08 nm. Built on a compact, palm-sized crossed asymmetric Czerny-Turner platform, it couples to light sources through a standard SMA905 fiber connector and delivers laboratory-grade spectral measurements in a highly portable form factor. A single USB 2.0 connection provides both data transfer and power, and RS232 communication is also supported.
Applications
- Laser center-wavelength, FWHM and stability measurement
- Emission and absorption spectroscopy
- Transmittance and absorbance testing
- Fluorescence detection
- Color measurement
- LED and LIBS measurement
- Solar spectrum testing
Construction & Performance
The spectrometer uses a crossed asymmetric Czerny-Turner optical path with an interference filter that suppresses second-order diffraction. A Hamamatsu S11639 linear CMOS detector (2048 pixels, 14 μm x 200 μm) provides a signal-to-noise ratio of 600:1 and a dynamic range of 10000:1, with 16-bit A/D conversion and integration times from 0.5 ms to 65 s. Multiple trigger modes (normal, software, hardware and synchronization) and an SDK for secondary development support flexible OEM integration, while communication is handled over USB 2.0 (12 Mbps) and RS232 (115200 bps).
Storage & Handling
Operate and store between 5 and 35 °C (25 °C recommended) in a dry, dust-free environment. Keep the SMA905 fiber connector and entrance slit clean and capped when not in use, and avoid mechanical shock to preserve the factory wavelength calibration.
| Model | BIM-6602A series |
| Wavelength Range | 180-1100 nm optional |
| Resolution | Optimal ~0.08 nm |
| Fiber Connector | SMA905 |
| Detector Type | Hamamatsu S11639 linear CMOS |
| Detector Pixel | 2048 pixel, each pixel 14 μm x 200 μm |
| Signal to noise ratio | 600:1 |
| A/D Resolution | 16 bit |
| Integrating Time | 0.5 ms - 65 s |
| Dynamic Range | 10000:1 |
| Trigger Model | Normal Mode,Software,Hardware,Synchronization Trigger |
| Power Consumption | 250 mA, 5 VDC |
| Operating Temperature | 5-35 °C (25 °C recommended) |
| Communication Interface | USB 2.0 (12 Mbps); RS232 (115200 bps) |
| Operation System | Win XP,Win7,Win8,Win10 |
| Power Supply | USB |
| Dimension | 140 x 110 x 46 mm |
| Weight | 0.7 kg |
