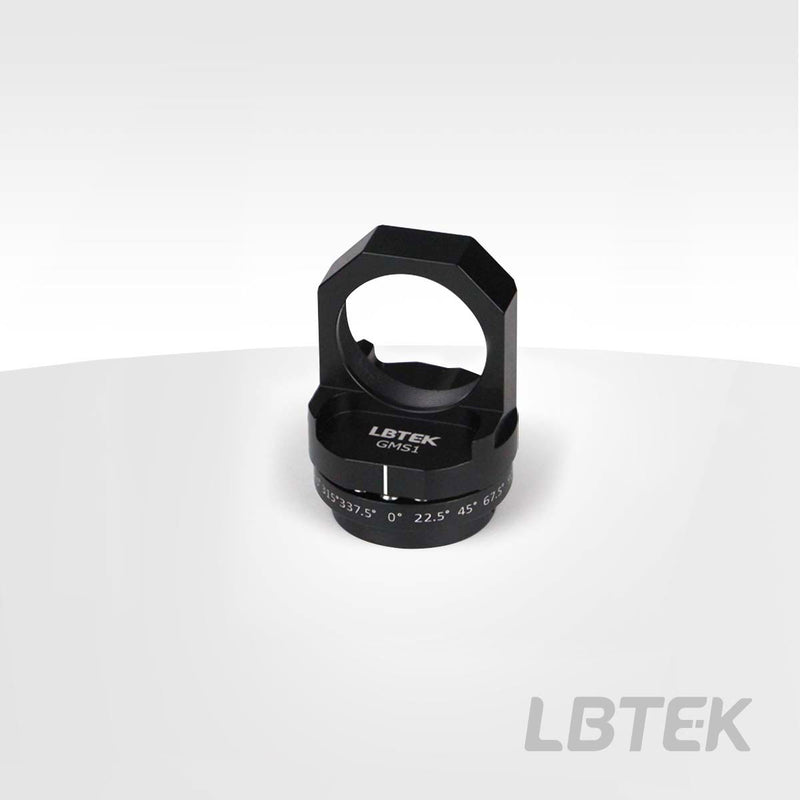

Indexing Mounts GMS1

The LBTEK Indexing Mount uses a retaining ring to secure optical components with a maximum thickness of 6 mm and a diameter of Ø25.4 mm. It features 16-position indexing, with each position incremented by 22.5°. This mount is suitable for redirecting lasers to multiple targets on an optical table. The product consists of two parts: a top plate and a base plate. Neodymium magnets bond the top and base plates together. The base plate is marked with angle position scales for fast alignment, offering high precision and repeatability. When adjusted to a position, there is a distinct tactile feedback. Three M4 tapped holes in the base plate allow the mount to be secured to a post. A small through-hole is located directly below the 90° scale on the base plate, which can be adjusted using a 2 mm ball-head screwdriver to provide sufficient torque when attaching the mount to the post.
