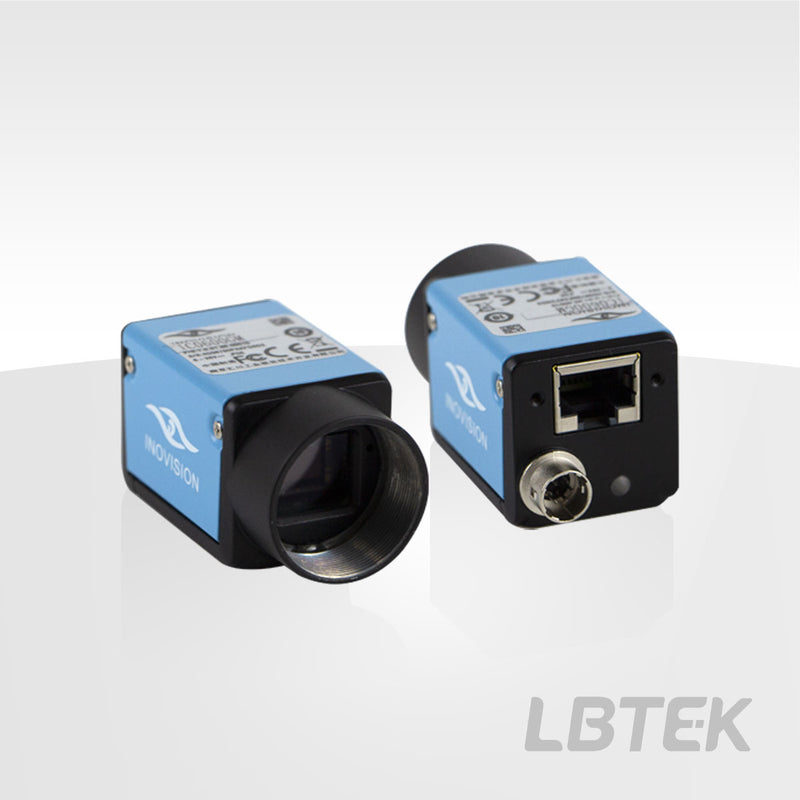

INOVANCE CMOS Camera — Model VC21-013GM-092
1.3 MP INOVANCE CMOS Camera with GigE interface; 4.0 μm×4.0 μm pixel size, 1/2.7'' sensor.
Overview
LBTEK's INOVANCE CMOS Camera adopts a GigE data transmission interface and supports plan correction. It offers various operation modes such as software triggering and hardware triggering. Equipped with onboard memory, it can handle data transmission in emergency situations. The software supports ISP functions including sharpness, noise reduction, gamma correction, lookup table, black level correction, brightness, and contrast ratio. Its mechanical housing features a C-Mount optical connector, making it easy to integrate into 30 mm coaxial systems. The INOVANCE CMOS Camera is a highly cost-effective industrial camera widely used in image inspection, robotics, logistics, surveillance, and barcode scanning. Note: The software download includes the manual and development tools.
Key Features
- Supports various operation modes including software trigger and hardware trigger
- Built-in onboard memory
- Supports functions such as sharpness, noise reduction, gamma correction
- Includes user manual and development tools
Applications
- Logistics and warehouse automation
- Barcode reading
| Effective pixels | 1.3 MP |
| Pixel size | 4.0 μm×4.0 μm |
| CMOS size | 1/2.7'' |
| Color | Monochrome |
| Resolution | 1280×1024 |
| Frame rate | 92 fps |
| Shutter Mode | Global Shutter |
| Sensor Type | CMOS |
| Bit depth | 8 bit |
| Exposure time | 16 μs~1 s |
| Signal-to-noise ratio | 38 dB |
| Dynamic range | 60 dB |
| Data interface | GigE |
| Optical Interface | C-Mount |
| Power Supply | PoE power supply/DC power supply via Hirose interface, voltage range 9 V~24 V |
| Power consumption | 12 V (3.0 W) |
| Size | 29 mm×29 mm×42 mm |
| Weight | 88 g |
| Operating temperature | 0 ℃~+50 ℃ |
| Storage temperature | - 30 ℃~+80 ℃ |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Spectral Response 1 — Graph
Spectral Response 2 — Graph
Spectral Response 3 — Graph
Spectral Response 4 — Graph
