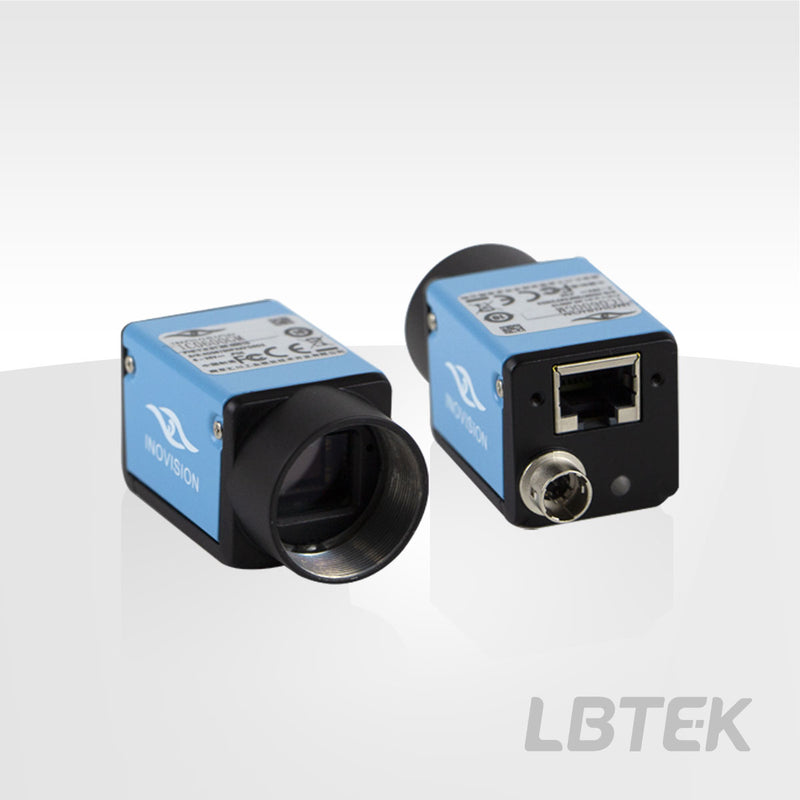

INOVANCE CMOS Cameras VC21-060GM-018

VC21-060GM-018
$323.85
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH

LBTEK's INOVANCE CMOS Cameras features a GigE data transmission interface, with resolution options ranging from 30W to 630W. It features a compact design and user-friendly software operation, supporting multiple operation modes including software triggering and hardware triggering. The mechanical housing input interface adopts a C-Mount optical connector, facilitating integration into 30 mm coaxial systems. The bottom is equipped with 4×M2 and 3×M3 threaded holes for mounting using in free space via the included adapter plate. The GPIO interface includes 1 optocoupler-isolated input, 1 optocoupler-isolated output, and 1 configurable non-isolated input/output. The package includes a power supply and data cable.

Key Features

  • Resolution ranges from 30W to 630W
  • C-Mount optical connector
  • Supports multiple operation modes including software trigger and hardware trigger

Application

Structure Schematic Diagram of Camera

Effective pixels 3072×2048
Pixel size 2.4 μm×2.4 μm
CMOS size 1/1.8''
color Monochrome
Shutter Type Rolling shutter
Resolution 6.2 MP
Bit depth 8 bit
Signal-to-noise ratio >38 dB
Dynamic Range 66 dB
Exposure Time 1 μs~1 s
Material 18 fps
Data Transfer Interface GigE
Optical Interface C-Mount
Power Consumption 12 V（3.2 W）
Power Supply Power supply via Hirose interface, voltage range 6 V~26 V
Operating Temperature - 30 ℃~+50 ℃
Operating Temperature - 30 ℃~+80 ℃
Size 29 mm×29 mm×42 mm
Weight 88 g
