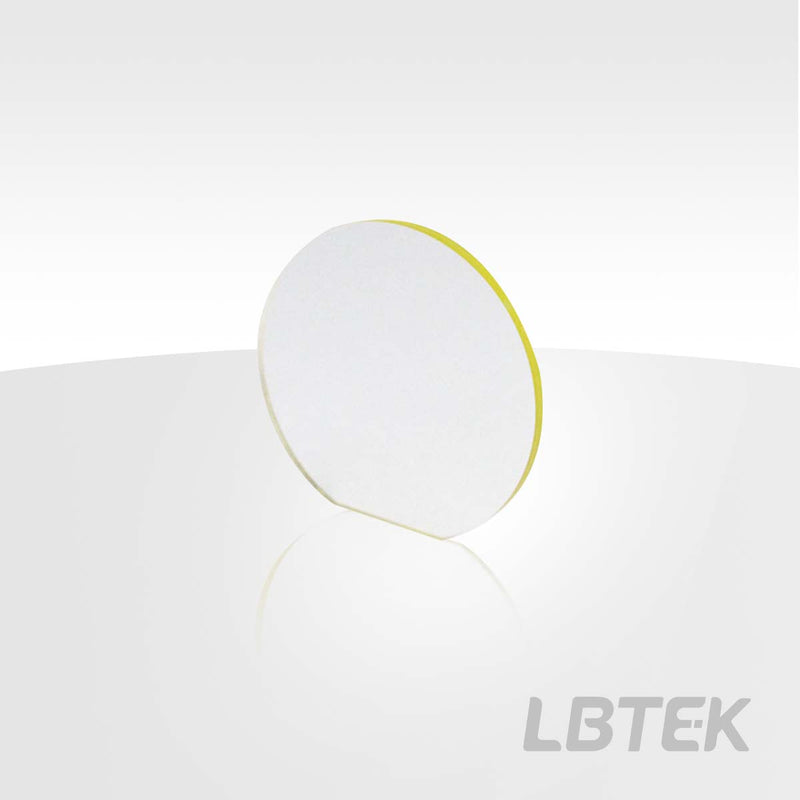

Polymer Achromatic Half-Wave Plate (Unmounted) — Model AHWP51-VIS-A
Broadband polymer λ/2 waveplate for 450 nm-700 nm, unmounted bare element.
Overview
LBTek's Polymer Achromatic Half-Wave Plate uses a Liquid Crystal Polymer (LCP) layer sandwiched between two N-BK7 windows to deliver true λ/2 retardance across the broadband range of 450 nm-700 nm. The polymer achromatic design provides excellent retardance uniformity and wide acceptance angle (±15° AOI). Each plate is supplied as unmounted bare element.
Key Features
- Polymer achromatic design: uniform λ/2 retardance across 450 nm-700 nm
- Liquid Crystal Polymer between two N-BK7 windows
- Wide acceptance angle: ±15° AOI
- Delay Uniformity: ±5 nm across clear aperture
- Fast-axis accuracy: ±3° to ±5°
- Transmitted Wavefront Error: < λ/2 @ 633 nm (RMS)
- Bare element Ø50.8 mm for custom integration
Applications
- Broadband polarization rotation (linear to orthogonal linear)
- Laser isolation and Faraday rotator systems
- White-light interferometry
- Ellipsometry and polarimetry
- Machine vision polarization systems
| Component Material | Liquid Crystal Polymer/N-BK7 Window |
| Retardation | λ/2 |
| Component size | Ø50.8×3.0 mm |
| Delay Uniformity | ±5 nm |
| Operating Wavelength | 450 nm-700 nm |
| Delay accuracy | ±λ/50@450-650 nm; ±λ/25@650-700 nm |
| Clear Aperture | Ø45 mm |
| Angle of Incidence (AOI) | ±15 ° |
| Surface finish (scratches/pits) | 60/40 |
| Fast-axis accuracy | ±5 ° |
| Anti-reflective coating | 400-700 nm |
| Transmission | >80 %@450-520 nm; >94 %@520-700 nm |
| Reflectance | Ravg<0.5 %(0°incidence angle) |
| Transmitted Wavefront Error (RMS) | <λ/2@633 nm |
| Transmitted light deflection (without mechanical housing installed) | <3 arcmin |
| Operating Temperature | -20~80 °C |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Polymer Achromatic Half-Wave Plates (5 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| LBTek Polymer Achromatic Half-Wave Plate — AHWP51-SNIR-A |
AHWP51-SNIR-A
| Ø50.8×3.0 mm | Ø45 mm | 700 nm-1100 nm | View |
| LBTek Polymer Achromatic Half-Wave Plate — AHWP51-VIS-A Current |
AHWP51-VIS-A
| Ø50.8×3.0 mm | Ø45 mm | 450 nm-700 nm | |
| LBTek Polymer Achromatic Half-Wave Plate — AHWP25-SNIR-A-M |
AHWP25-SNIR-A-M
| Ø25.4×3.0 mm | Ø21.5 mm | 700 nm-1100 nm | View |
| LBTek Polymer Achromatic Half-Wave Plate — AHWP25-VNIR-A-M |
AHWP25-VNIR-A-M
| Ø25.4×3.0 mm | Ø21.5 mm | 600 nm-800 nm | View |
| LBTek Polymer Achromatic Half-Wave Plate — AHWP25-VIS-A-M |
AHWP25-VIS-A-M
| Ø25.4×3.0 mm | Ø21.5 mm | 400 nm-700 nm | View |
