Lens Tube Adapter — Model SM05NR
✔ In Stock — Ships Today

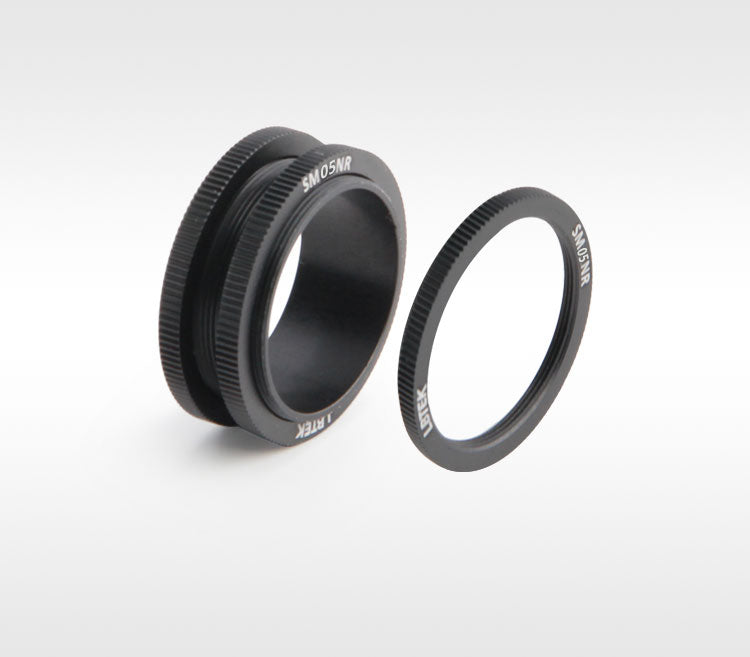

The LBTEK SM05-12.5T consists of a 12.5 mm long through-body external threaded adapter and two SM05NR locking external retaining rings, allowing flexible adjustment of the connection component's position and rotation angle along the optical axis. The SM05NR is used to lock the position of the connection component. The external retaining rings feature a straight knurled design for ease of tightening and secure locking. The SM05NR locking rings can be purchased separately. The SM05-25.4T and SM05-12.5T differ only in length.
Key Features
- Material: 6061-T6 aluminum alloy
- Black anodized
Application
Lens tube
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Lens sleeve adapter (10 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Lens Tube Adapter SM2-12.5T |
SM2-12.5T
| — | — | — | View |
| Lens Tube Adapter SM2NR |
SM2NR
| — | — | — | View |
| Lens Tube Adapter SM1-12.5T |
SM1-12.5T
| — | — | — | View |
| Lens Tube Adapter SM1NR |
SM1NR
| — | — | — | View |
| Lens Tube Adapter SM1-8V |
SM1-8V
| — | — | — | View |
| Lens Tube Adapter SM1-25T |
SM1-25T
| — | — | — | View |
| Lens Tube Adapter SM1LR |
SM1LR
| — | — | — | View |
| Lens Tube Adapter SM05-12.5T |
SM05-12.5T
| — | — | — | View |
| Lens Tube Adapter SM05NR Current |
SM05NR
| — | — | — | |
| Lens Tube Adapter SM05-25.4T |
SM05-25.4T
| — | — | — | View |
