Lens tube sheath SM2LS600
SM2LS600$16.92
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH

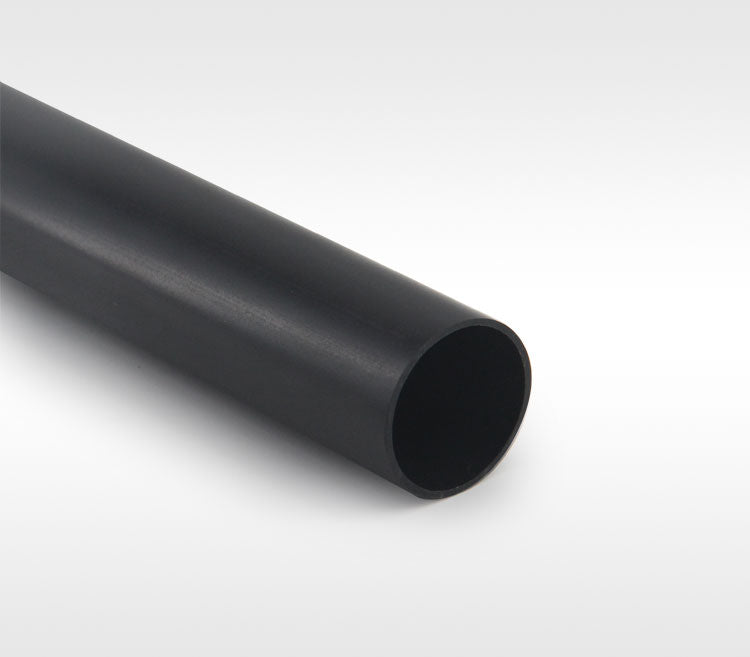

Lens tube sheath — Model SM2LS600
✔ In Stock — Ships Today
The SM05LS600, SM1LS600, and SM2LS600 lens tube sleeves provided by LBTEK all have a length of 600 mm, designed for SM05, SM1, and SM2 lens tubes respectively, with outer diameters of Ø20.9 mm, Ø34.0 mm, and Ø59.8 mm.
Key Features
- 600 mm long plastic sleeve for SM05, SM1, SM2 lens tubes
- Thread-free, easy to install and remove
Application
Installation of SM1 Lens Tube
| Material | PVC |
| color | black |
| Sheath length | 600 mm |
| Applicable socket model | SM2 |
| Attribute 1106 | Ø56 mm |
| Sheath inner diameter | Ø56.1 mm |
| Attribute 1108 | Ø59.8 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Lens tube sheath (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Lens tube sheath SM05LS600 |
SM05LS600
| — | — | — | View |
| Lens tube sheath SM1LS600 |
SM1LS600
| — | — | — | View |
| Lens tube sheath SM2LS600 Current |
SM2LS600
| — | — | — |
