Long-distance collimator LRC1064-15.2-PC
LRC1064-15.2-PC$697.29
In Stock
Key Specifications
Wavelength
1064.0nm
Transmittance
0.5%
Design Tools
Sellmeier Equation
Look up refractive index by wavelength
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
Long-distance collimator — Model LRC1064-15.2-PC
Lead Time: 8 weeks
Specifications
| Parameter | Value |
|---|---|
| Design Wavelength | 1064 nm |
| Transmittance | Ravg≤0.5%@1050-1700 nm |
| Transmittance Curve | >95%@1064 nm |
| Center Wavelength | 1064.0 nm |
| Transmittance | 0.5% |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

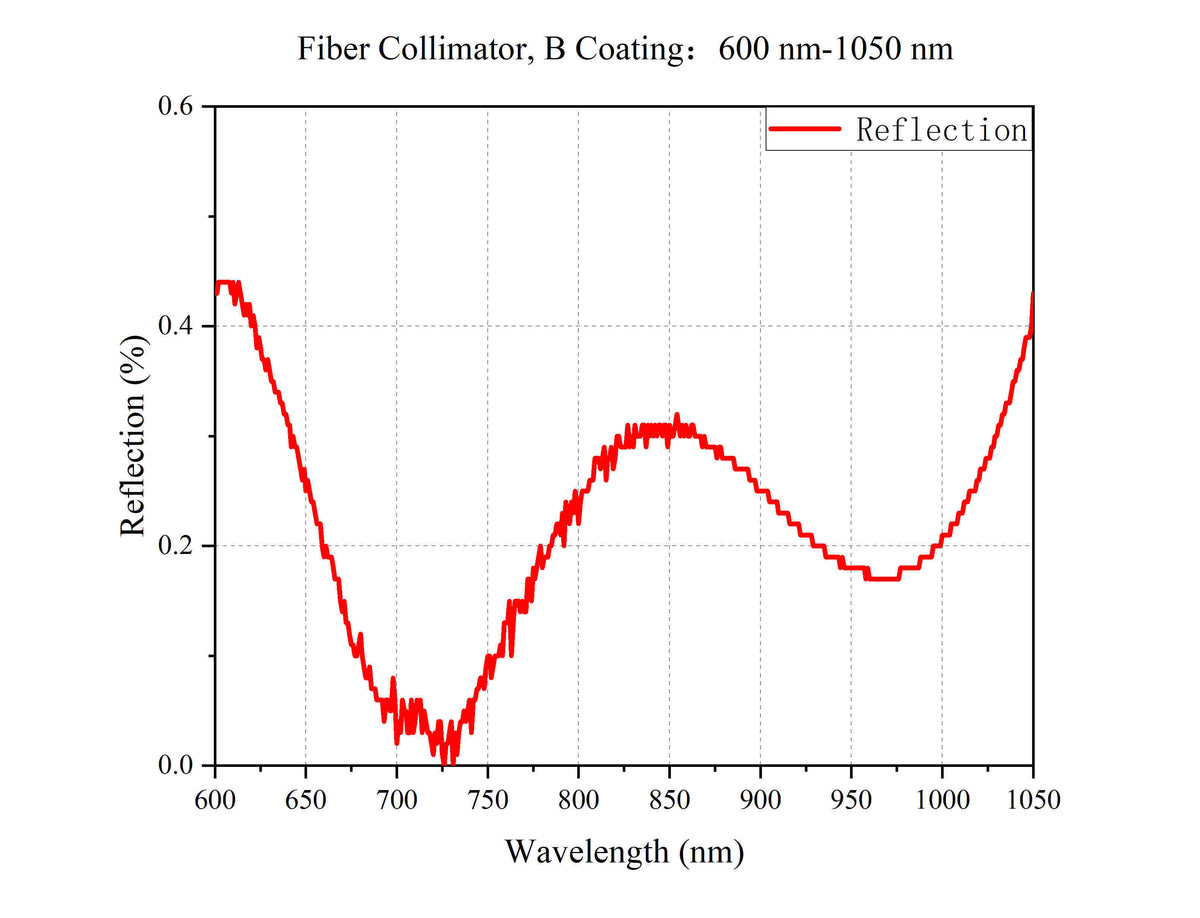

Curve - Fiber Collimator, B Coating：600 nm-1050 nm
Curve - Fiber Collimator, C Coating：1050 nm-1700 nm

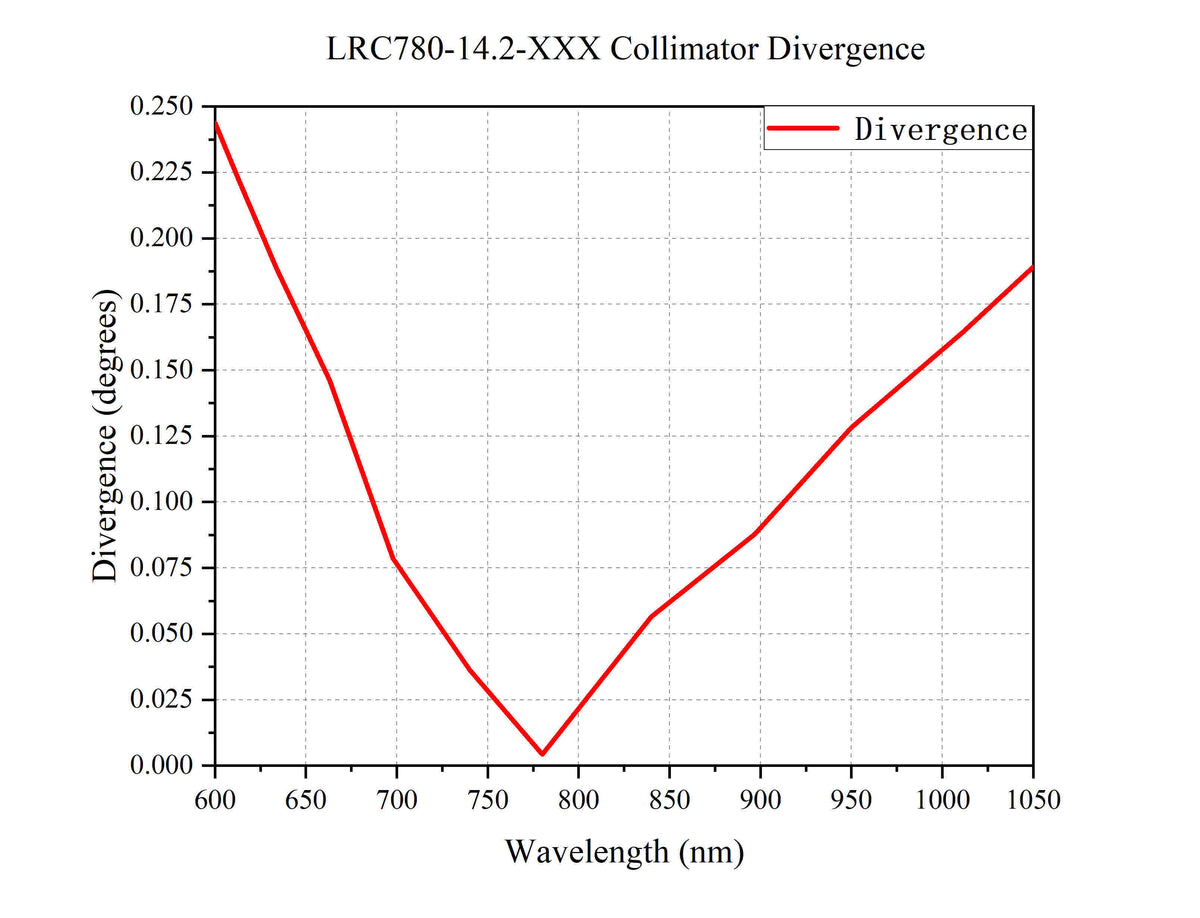

Curve - LRC780-14.2-XXX collimator

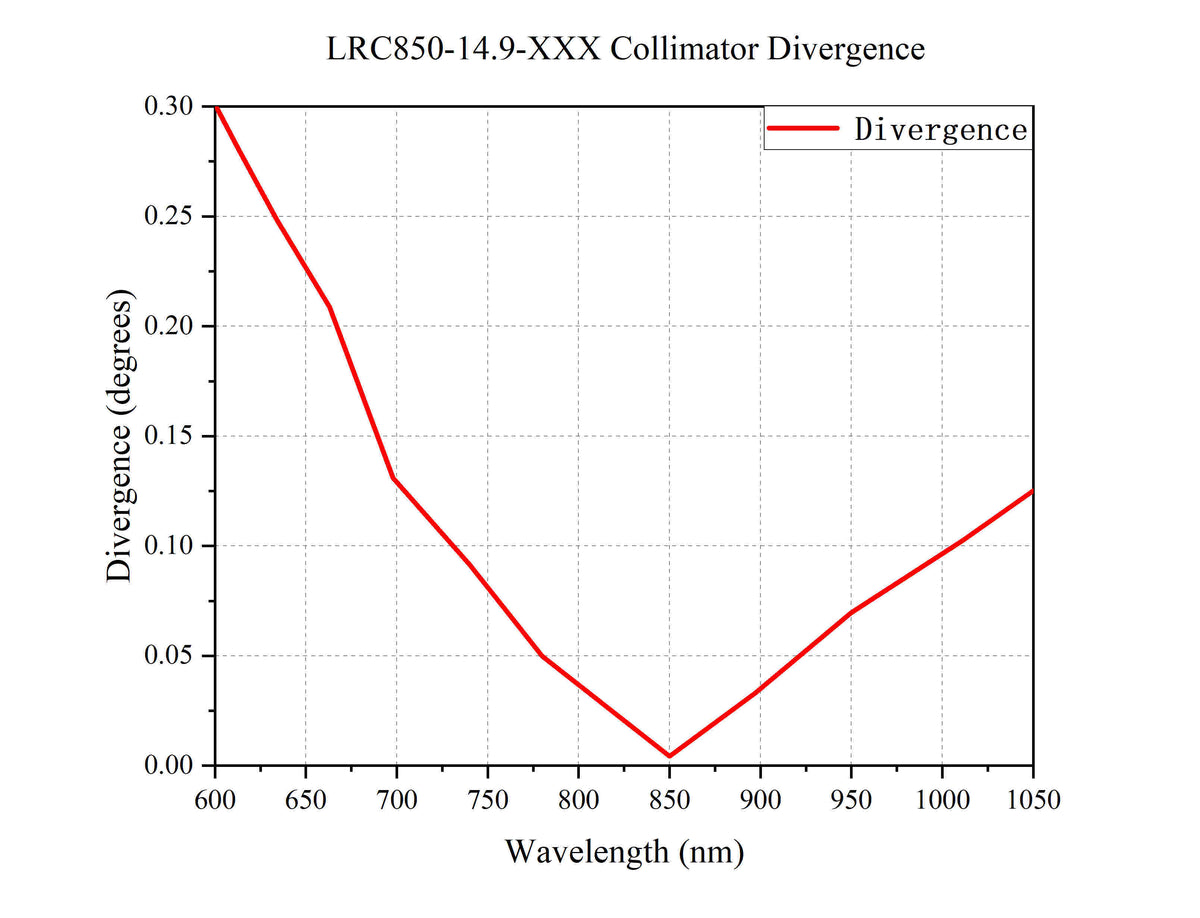

Curve - LRC850-14.9-XXX collimator

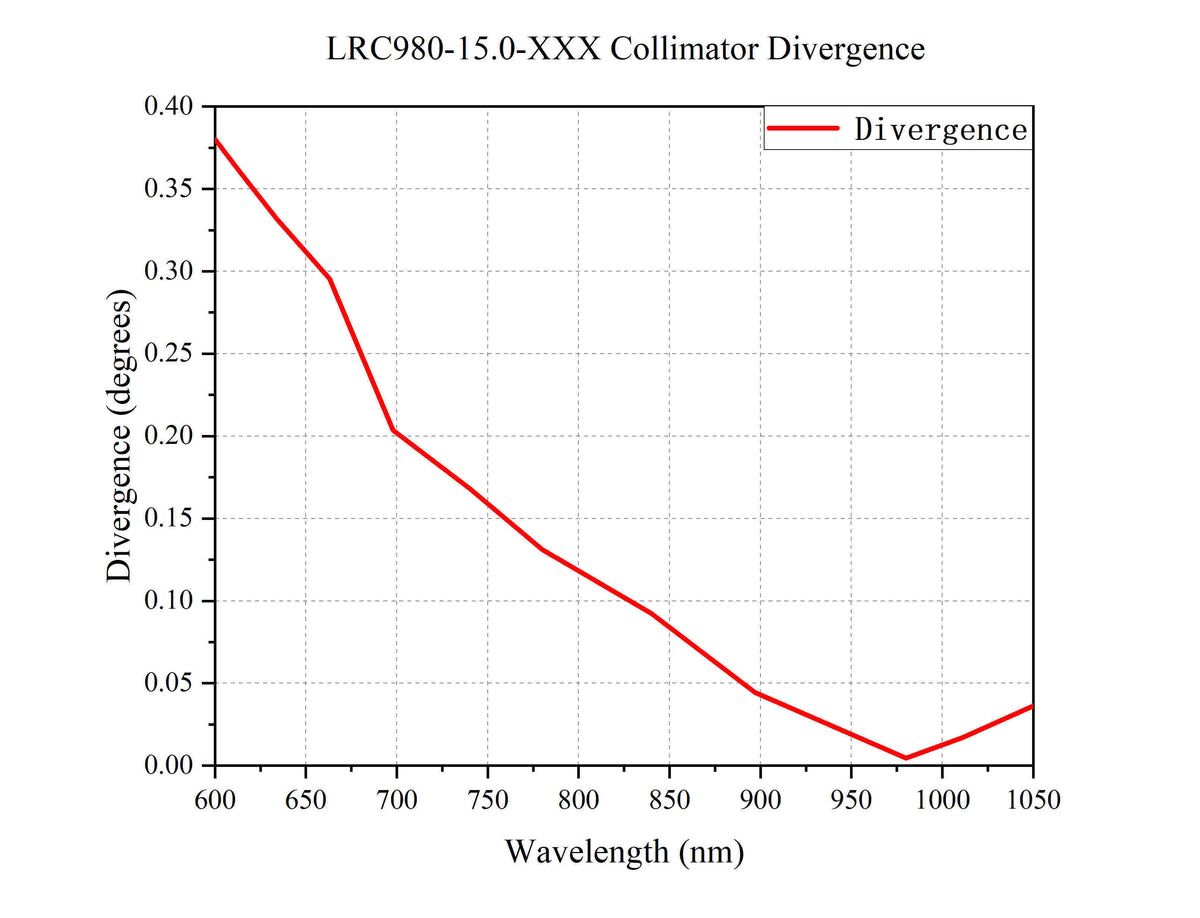

Curve - LRC980-15.0-XXX collimator

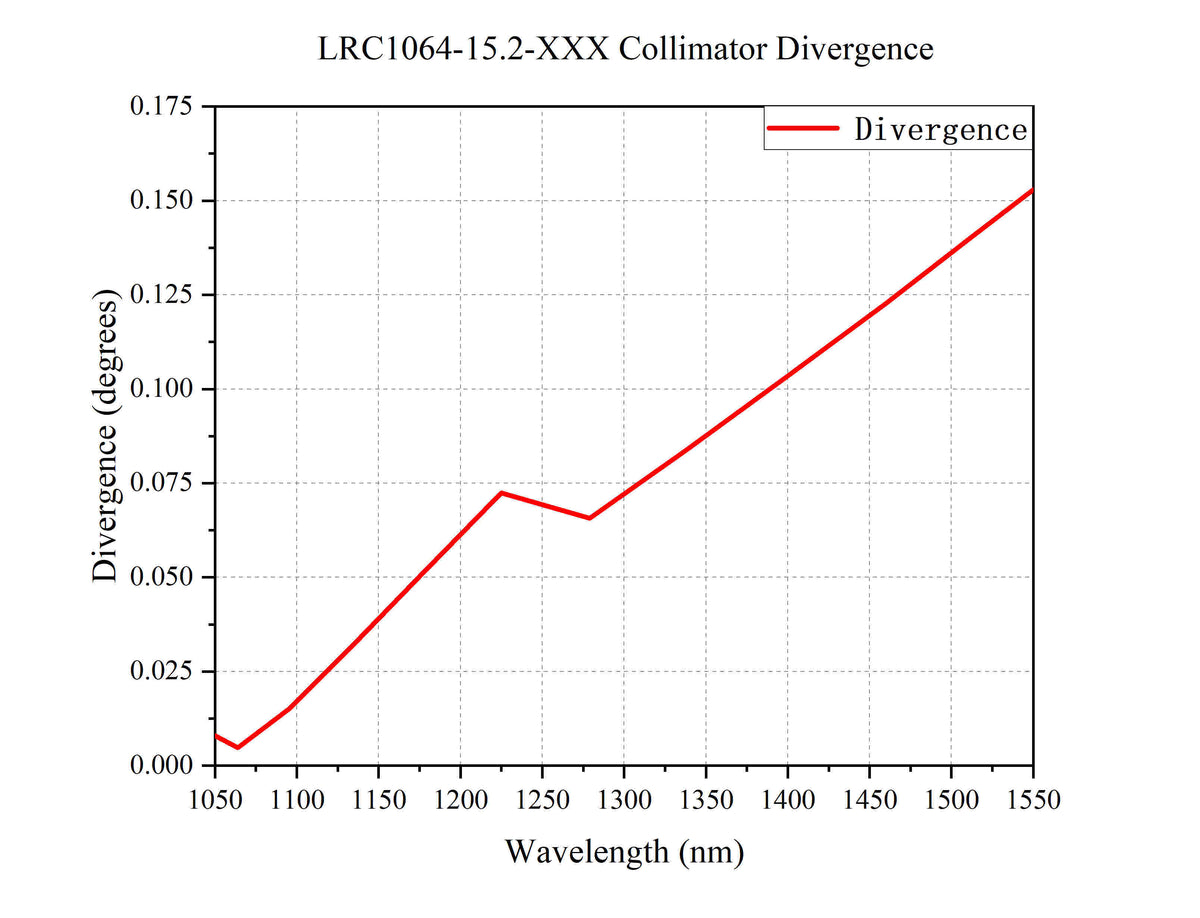

Curve - LRC1064-15.2-XXX collimator

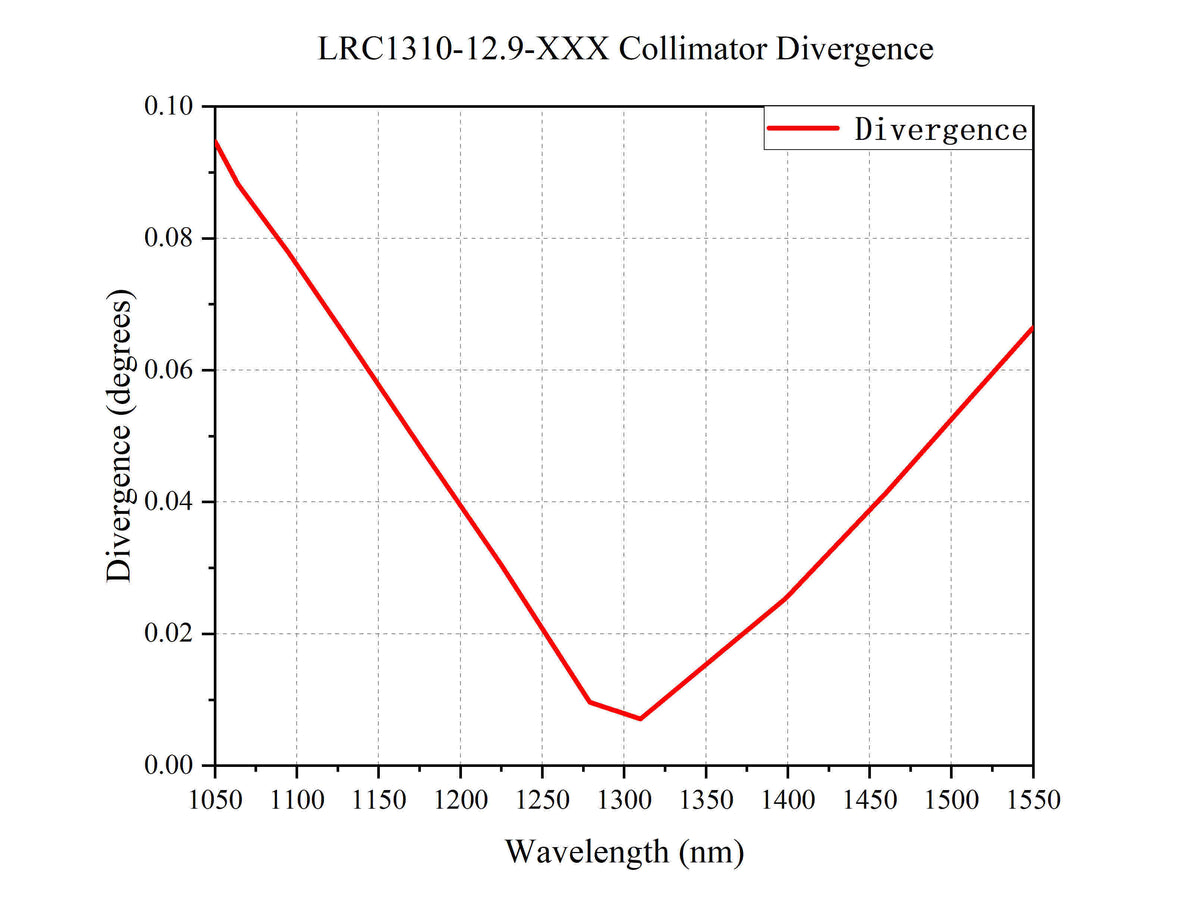

Curve - LRC1310-12.9-XXX collimator

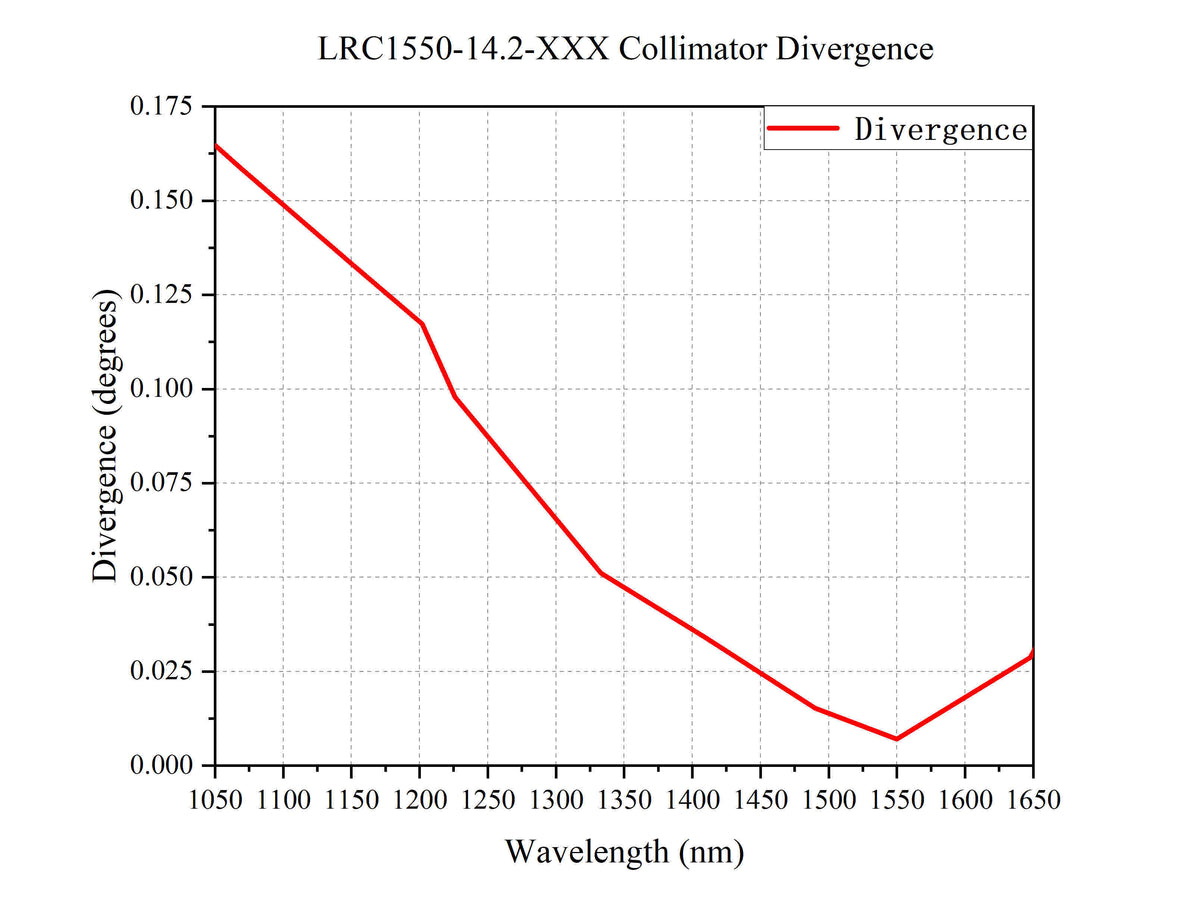

Curve - LRC1550-14.2-XXX collimator
