Magnetic Quick Release Base — Model MKB-50-A
✔ In Stock — Ships Today

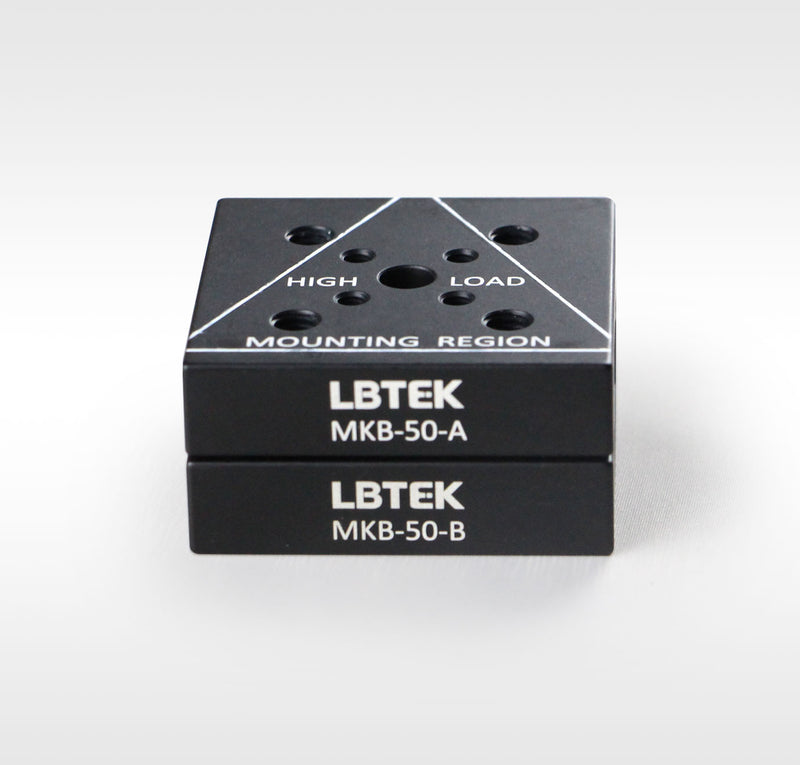

The 50 mm magnetic quick release base from LBTEK features a 50 mm×50 mm mounting plate. The connection between the top plate and base plate incorporates a ball and V-groove design, ensuring excellent repeatable positioning accuracy. Two pairs of high-strength magnets provide powerful magnetic attraction. Both the top and base plates feature recessed edges for easy handling, effectively reducing the risk of finger pinching during plate engagement. Additionally, the top plate is marked with an engraved triangle to indicate the high-load area.
Key Features
- The ball and V-groove design ensures high-precision positioning;
- The top plate features 4× M6 tapped holes, 4× M4 tapped holes, and 1× M6 countersunk hole;
- The base plate is equipped with 1 ×M6 countersunk hole;
- The top plate and base plate can be provided separately;
Application
50mm magnetic quick release base, top and bottom plate.
