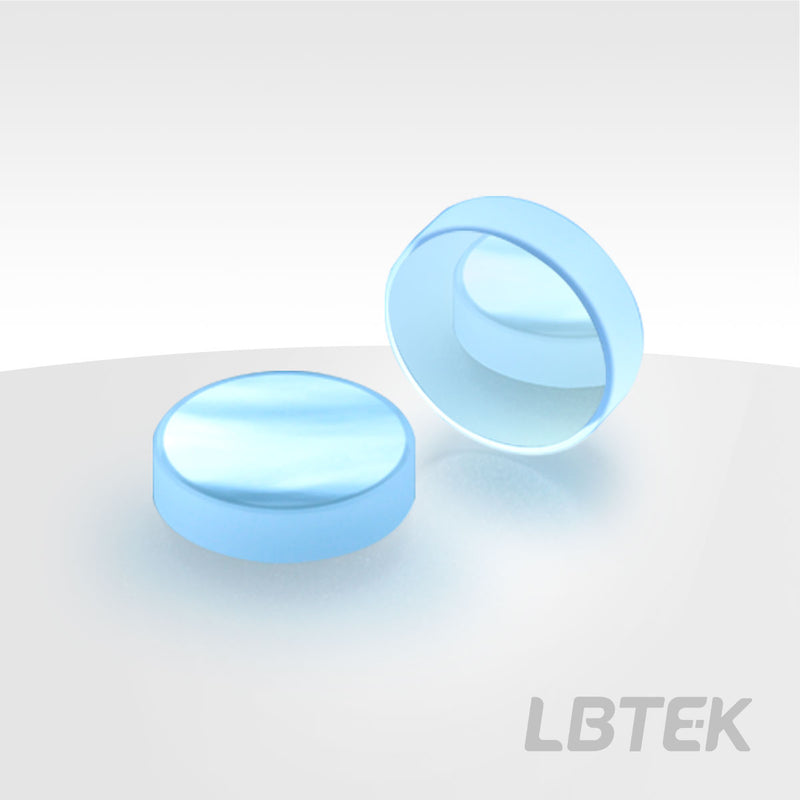

Metal-coated Concave Mirrors, Silver Coating: 480 nm-20.0 μm CM10-F100-AG

Metal-coated Concave Mirrors, Silver Coating: 480 nm-20.0 μm — Model CM10-F100-AG

Operating wavelength 480 nm-20.0 μm, focal length -100.0 mm, Ø25.4 mm, substrate Borofloat 33.

Product Description

• Optical Material: Borofloat Glass
• Silicon Dioxide Protective Layer
• Operating Wavelength: 480 nm-20 μm
• Beam Focusing, Collimation, Collection, and Imaging

Metal-coated concave mirrors are highly suitable for beam focusing or collimation of broadband light sources and beam collection, offering high reflectivity across a wide spectral range. The reflection of light beams occurs on the metal-coated surface, which does not introduce chromatic aberration. However, metal coatings are prone to oxidation, discoloration, or peeling in high-humidity environments. LBTEK's metal-coated mirrors feature a protective silicon dioxide layer on the surface to prevent direct contact between the metal coating and air. Although the protective layer can prevent silver oxidation, silver-coated mirrors are still not suitable for use in high-humidity environments. They must be used and stored in room-temperature conditions with minimal humidity. LBTEK offers three types of metal-coated mirrors: aluminum-coated, silver-coated, and gold-coated. All our mirrors undergo precision processing and strict quality control to ensure that LBTEK provides high-quality lens products at reasonable prices. For customized metal-coated mirror requests, please contact LBTEK technical support.

Metal-coated Concave Mirrors, Silver Coating: 480 nm-20.0 μm

• Substrate Material: Borofloat Glass
• Working Wavelength: 480 nm-20.0 μm (Silver Film)
• Silicon Dioxide Protective Layer
• Beam Focusing, Collimation, Collection and Imaging
