Metal-coated Plane Mirrors, Aluminum Coating: 450 nm-20.0 μm PM10-AL
PM10-AL
λ 450.0nm
$97.57
WaveQuanta
Request Quote
Metal-coated Plane Mirrors, Aluminum Coating: 450 nm-20.0 μm PM10-AL-P10
PM10-AL-P10$871.09
In Stock
Key Specifications
Wavelength
450.0nm
Diameter
25.4mm
LIDT
0.19J/cm²
Reflectance
90.0%
Design Tools
Gaussian Beam Calculator
Model beam propagation through your optical system
LIDT Calculator
Verify damage threshold for your laser parameters
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH

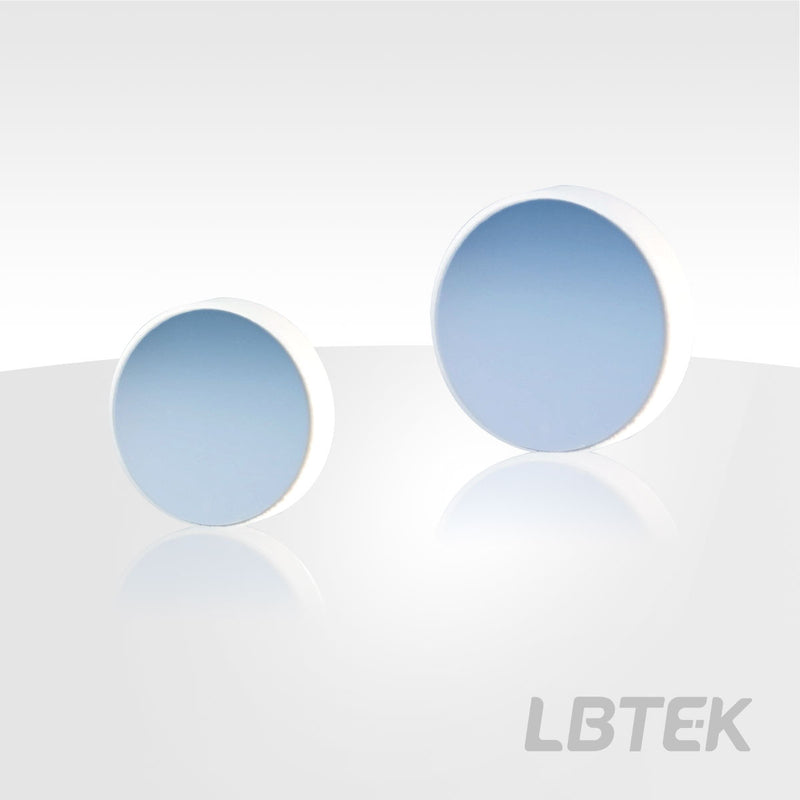

Metal-coated Plane Mirrors, Aluminum Coating: 450 nm-20.0 μm — Model PM10-AL-P10
Operating wavelength 450 nm-20.0 μm, Ø25.4 mm, substrate Borofloat 33.
Product Description
- Optical Material: Borofloat Glass
- Working Wavelength: 450 nm-20.0 μm (Aluminum Coating)
- Silicon Dioxide Protective Layer
- Application: Optical Path Deflection
Metal-coated mirrors are highly suitable for deflecting broadband light sources, offering high reflectivity across a wide spectral range. However, metal coatings are prone to oxidation, discoloration, or peeling in high-humidity environments. LBTEK's metal-coated mirrors feature a protective silicon dioxide (SiO₂) layer deposited on the surface to isolate the metal coating from direct contact with air, preventing oxidation and preserving optical performance. LBTEK offers three types of metal-coated mirrors: aluminum-coated, silver-coated, and gold-coated. All our mirrors undergo precision manufacturing and strict quality control to ensure LBTEK delivers high-quality mirror products at competitive prices. For customized metal-coated mirror requests, please contact LBTEK Technical Support.
Metal-coated Plane Mirrors, Aluminum Coating: 450 nm-20.0 μm
- Substrate Material: Borofloat Glass
- Working Wavelength: 450 nm-20.0 μm (Aluminum Coating)
- Silicon Dioxide Protective Layer
- Application: Optical Path Deflection
Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha
| Clear Aperture | 90% CA |
| Thickness | 6.0 mm |
| Damage Threshold | 0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses) |
| Reflectance (AR) | Ravg>90%a@ 450 nm-2.0 μm Ravg>96%a@2.0 μm-20.0 μm |
| Diameter Tolerance | +0.0/-0.1 mm |
| Thickness Tolerance | ±0.25 mm |
| Clear Aperture | 90% CA |
| Operating Wavelength | 450 nm-20.0 μm |
| Reflectance | Ravg>90%a@ 450 nm-2.0 μm Ravg>96%a@2.0 μm-20.0 μm |
| Thickness | 6.0 mm |
| Diameter | 25.4 mm |
| Substrate Material | Borofloat Glass |
| Damage Threshold | 0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses) |
Low damage threshold detected (0.19 J/cm²).
For high-power applications, consider
WaveQuanta premium IBS-coated optics
with enhanced damage resistance.
No documents available for this product.
No CAD drawings available for this product.
Product Family: Metal-coated Flat Mirrors, Aluminum Coating: 450 nm-20.0 μm (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Metal-coated Plane Mirrors, Aluminum Coating: 450 nm-20.0 μm PM10-AL |
PM10-AL
| 25.4 mm | 90% CA | 450 nm-20.0 μm | View |
| Metal-coated Plane Mirrors, Aluminum Coating: 450 nm-20.0 μm PM10-AL-P10 Current |
PM10-AL-P10
| 25.4 mm | 90% CA | 450 nm-20.0 μm |
