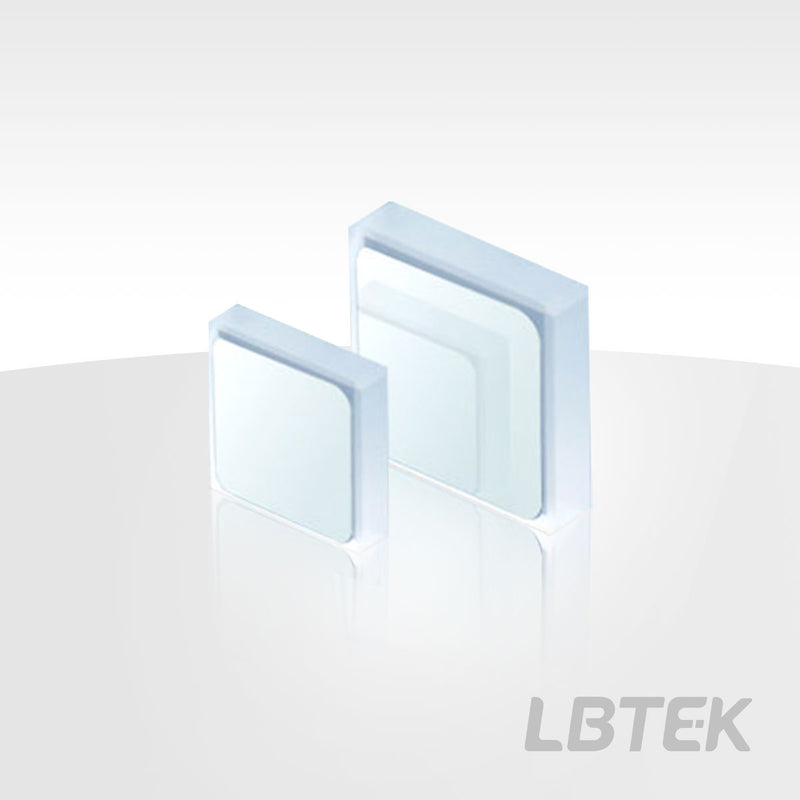

Metal Plane Mirrors, Silver Coating: 480 nm-20.0 μm, Rectangular PMS10-AG

Metal Plane Mirrors, Silver Coating: 480 nm-20.0 μm, Rectangular — Model PMS10-AG

Operating wavelength 480 nm-20.0 μm, substrate Borofloat 33.

Product Description

• Optical Material: Borofloat Glass, H-K9L, UVFS
• Silicon Dioxide Protective Layer
• Application: Optical Path Deflection
• Working Wavelength: 480 nm-20 μm

Metal-coated mirrors are highly suitable for deflecting light paths of broadband light sources, offering high reflectivity across a wide spectral range. However, metal coatings are prone to oxidation, discoloration, or peeling in high-humidity environments. LBTEK's metal-coated mirrors feature a protective layer of silicon dioxide on the surface to isolate the metal coating from direct contact with air. Although the protective layer prevents silver oxidation, silver-coated mirrors still cannot be used in high-humidity environments and must be operated and stored in low-humidity, room-temperature conditions. LBTEK offers three types of metal-coated mirrors: aluminum-coated, silver-coated, and gold-coated. All our mirrors undergo precision manufacturing and strict quality control to ensure LBTEK provides high-quality mirror products at reasonable prices. For customized metal-coated mirrors, please contact LBTEK Technical Support.

Metal Plane Mirrors, Silver Coating: 480 nm-20.0 μm, Rectangular

• Substrate Material: Borofloat Glass
• Working Wavelength: 480 nm-20.0 μm (Silver Coating)
• Silicon Dioxide Protective Layer
• Application: Optical Path Deflection
