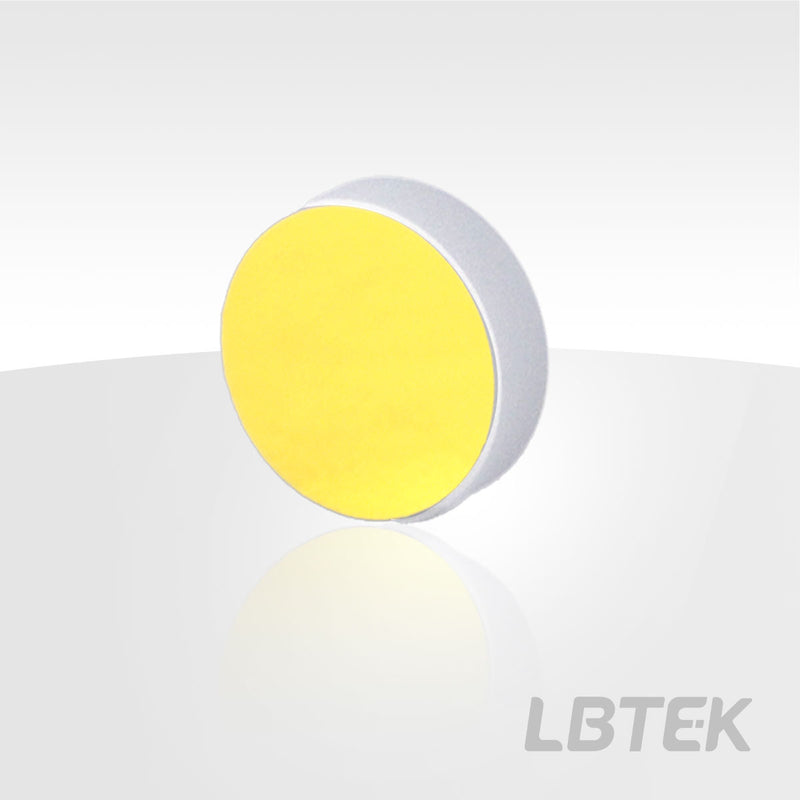

Metal Film Flat Reflectors, Mid-infrared Enhanced Gold Coating: 2.0 μm-20.0 μm, circular PM10-AU-MIR-P10

PM10-AU-MIR-P10
$749.35
In Stock
Key Specifications
Wavelength 2.0nm
Diameter 25.4mm
LIDT 0.1J/cm²
Reflectance 95.0%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Metal Film Flat Reflectors, Mid-infrared Enhanced Gold Coating: 2.0 μm-20.0 μm, circular — Model PM10-AU-MIR-P10

Operating wavelength 2.0 μm-20.0 μm, ØØ25.4 mm, substrate UV Fused Silica.

Product Description

  • Optical Material: UV Fused Silica
  • Silicon Dioxide Protective Layer
  • Application: Light Path Deflection
  • Operating Wavelength: 2.0 μm-20.0 μm

LBTEK metal-coated mirrors are highly suitable for deflecting light paths of broadband light sources, offering high reflectivity across a wide spectral range. The mid-infrared enhanced gold-coated mirrors provide superior reflectivity compared to standard gold-coated mirrors in the 2.0 μm-20.0 μm range, delivering an average reflectivity of 98%. Metal coatings are prone to oxidation, discoloration, or peeling in high-humidity environments. LBTEK's metal-coated mirrors feature a protective silicon dioxide layer on the surface to isolate the metal coating from direct contact with air, preventing oxidation and preserving optical performance. LBTEK offers five types of metal-coated mirrors: gold-coated, mid-infrared enhanced gold-coated, silver-coated, aluminum-coated, and UV-enhanced aluminum-coated. All LBTEK mirrors undergo precision manufacturing and strict quality control to ensure high-quality products at reasonable prices. For customized metal-coated mirrors, please contact LBTEK Technical Support.

Metal Film Flat Reflectors, Mid-infrared Enhanced Gold Coating: 2.0 μm-20.0 μm, circular

  • Substrate Material: UV Fused Silica
  • Silicon Dioxide Protective Layer
  • Operating Wavelength: 2.0 μm-20.0 μm
  • Dimensions: Ø25.4 mm×6.0 mm

Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha

Clear Aperture90% CA
Thickness6.0 mm
Damage Threshold0.1 J/cm2@1064 nm,10 ns,10 Hz 25 W/cm@1064 nm
Reflectance (AR)Rabs>95%@2.0 μm-20.0 μm, Ravg>98%@2.0 μm-20.0 μm
Diameter Tolerance+0.0/-0.1 mm
Thickness Tolerance±0.2 mm
Clear Aperture90% CA
Operating Wavelength2.0 μm-20.0 μm
ReflectanceRabs>95%@2.0 μm-20.0 μm, Ravg>98%@2.0 μm-20.0 μm
Thickness6.0 mm
DiameterØ25.4 mm
Substrate MaterialUV Fused Silica
Damage Threshold0.1 J/cm2@1064 nm,10 ns,10 Hz 25 W/cm@1064 nm
Low damage threshold detected (0.1 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.
No documents available for this product.
No CAD drawings available for this product.

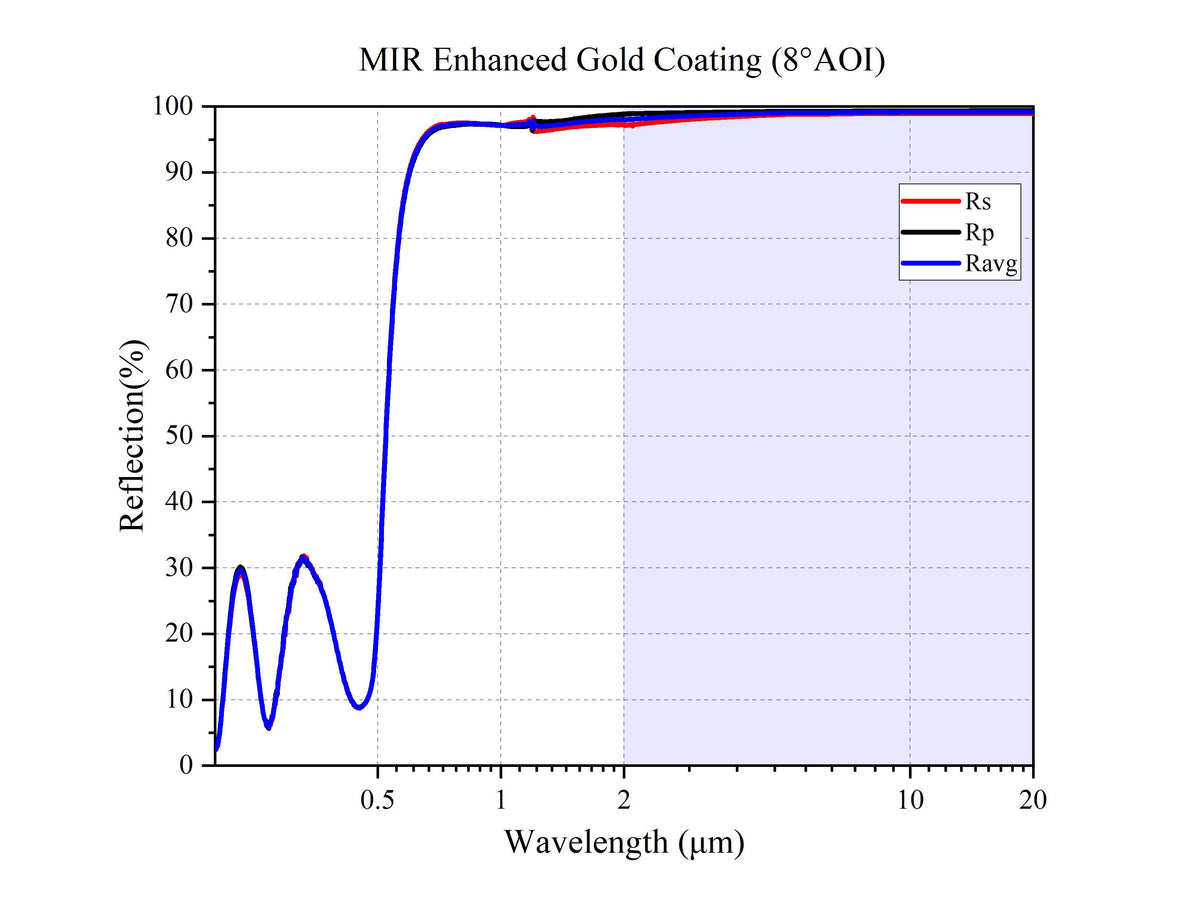

Curve - MIR Enhanced Gold Coating (8°AOI)
Curve - MIR Enhanced Gold Coating (8°AOI)

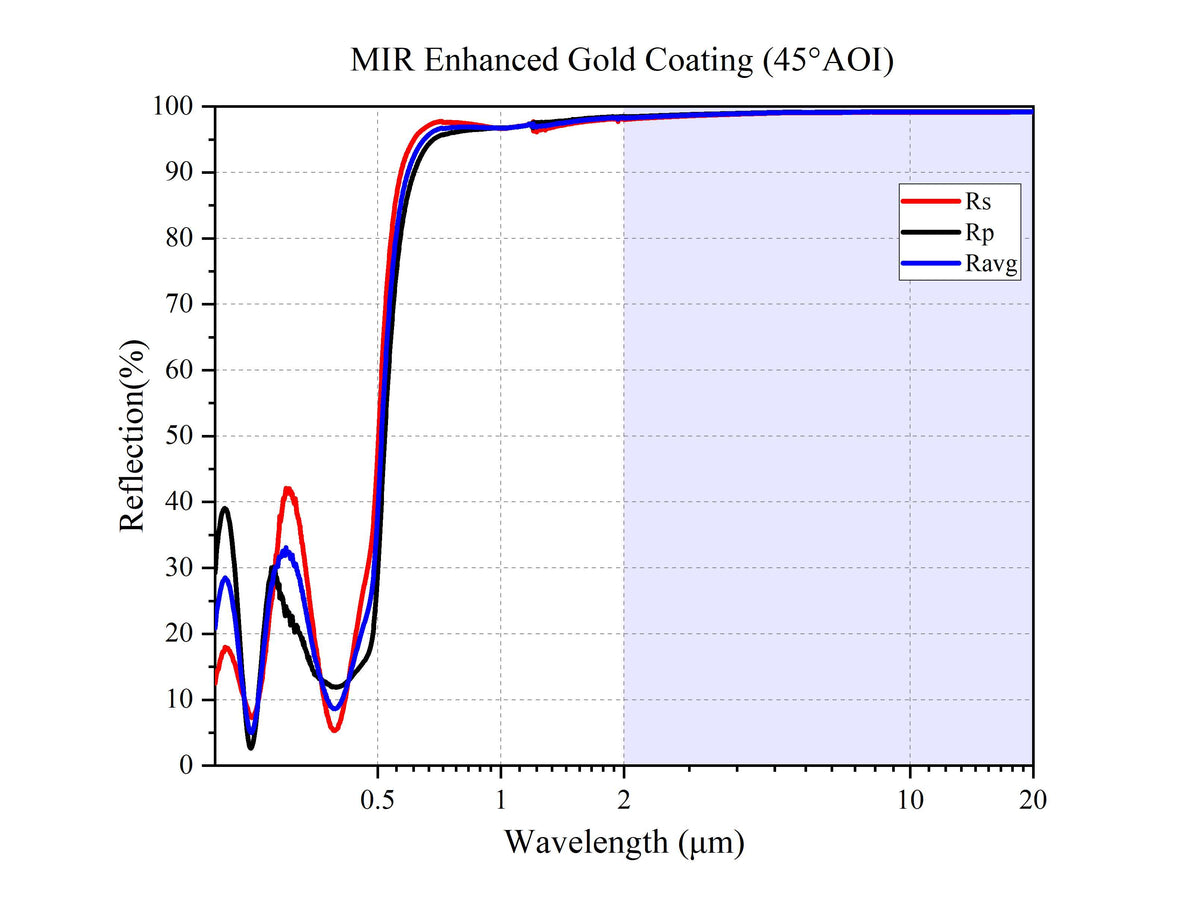

Curve - MIR Enhanced Gold Coating (45°AOI)
Curve - MIR Enhanced Gold Coating (45°AOI)

Product Family: Metal-coated Mirrors, Mid-infrared Enhanced Gold Coating: 2.0 μm-20.0 μm (2 variants)

Product ▴▾ SKU Size ▴▾ Clear Aperture ▴▾ Operating Wavelength ▴▾
Metal Film Flat Reflectors, Mid-infrared Enhanced Gold Coating: 2.0 μm-20.0 μm, circular PM10-AU-MIR PM10-AU-MIR Ø25.4 mm 90% CA 2.0 μm-20.0 μm View
Metal Film Flat Reflectors, Mid-infrared Enhanced Gold Coating: 2.0 μm-20.0 μm, circular PM10-AU-MIR-P10 Current PM10-AU-MIR-P10 Ø25.4 mm 90% CA 2.0 μm-20.0 μm
