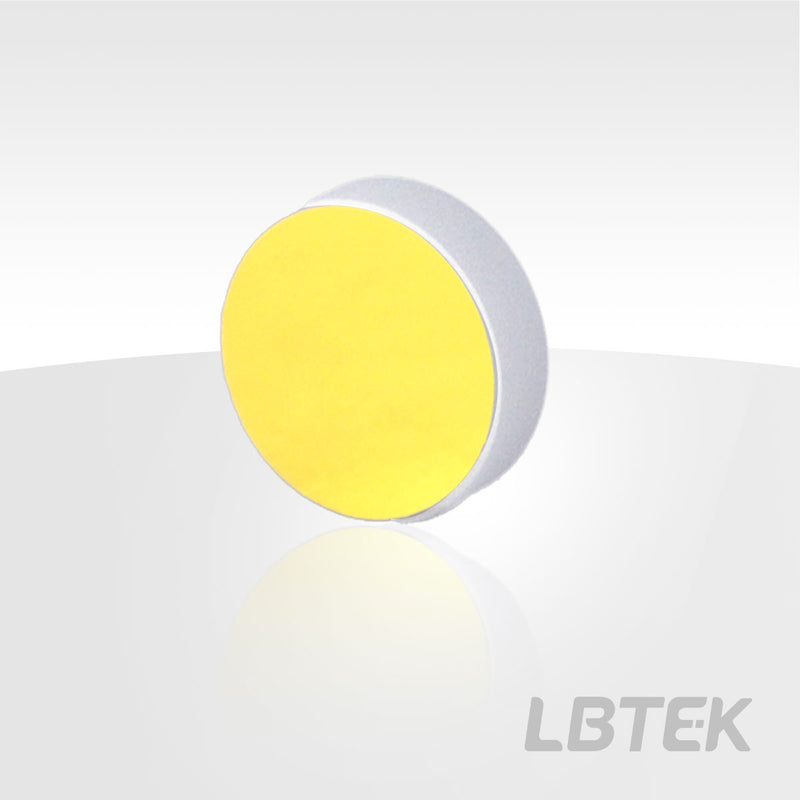

Metal Film Flat Reflectors, Mid-infrared Enhanced Gold Coating: 2.0 μm-20.0 μm, circular PM10-AU-MIR

Metal Film Flat Reflectors, Mid-infrared Enhanced Gold Coating: 2.0 μm-20.0 μm, circular — Model PM10-AU-MIR

Operating wavelength 2.0 μm-20.0 μm, ØØ25.4 mm, substrate UV Fused Silica.

Product Description

• Optical Material: UV Fused Silica
• Silicon Dioxide Protective Layer
• Application: Light Path Deflection
• Operating Wavelength: 2.0 μm-20.0 μm

LBTEK metal-coated mirrors are highly suitable for deflecting light paths of broadband light sources, offering high reflectivity across a wide spectral range. The mid-infrared enhanced gold-coated mirrors provide superior reflectivity compared to standard gold-coated mirrors in the 2.0 μm-20.0 μm range, delivering an average reflectivity of 98%. Metal coatings are prone to oxidation, discoloration, or peeling in high-humidity environments. LBTEK's metal-coated mirrors feature a protective silicon dioxide layer on the surface to isolate the metal coating from direct contact with air, preventing oxidation and preserving optical performance. LBTEK offers five types of metal-coated mirrors: gold-coated, mid-infrared enhanced gold-coated, silver-coated, aluminum-coated, and UV-enhanced aluminum-coated. All LBTEK mirrors undergo precision manufacturing and strict quality control to ensure high-quality products at reasonable prices. For customized metal-coated mirrors, please contact LBTEK Technical Support.

Metal Film Flat Reflectors, Mid-infrared Enhanced Gold Coating: 2.0 μm-20.0 μm, circular

• Substrate Material: UV Fused Silica
• Silicon Dioxide Protective Layer
• Operating Wavelength: 2.0 μm-20.0 μm
• Dimensions: Ø25.4 mm×6.0 mm
