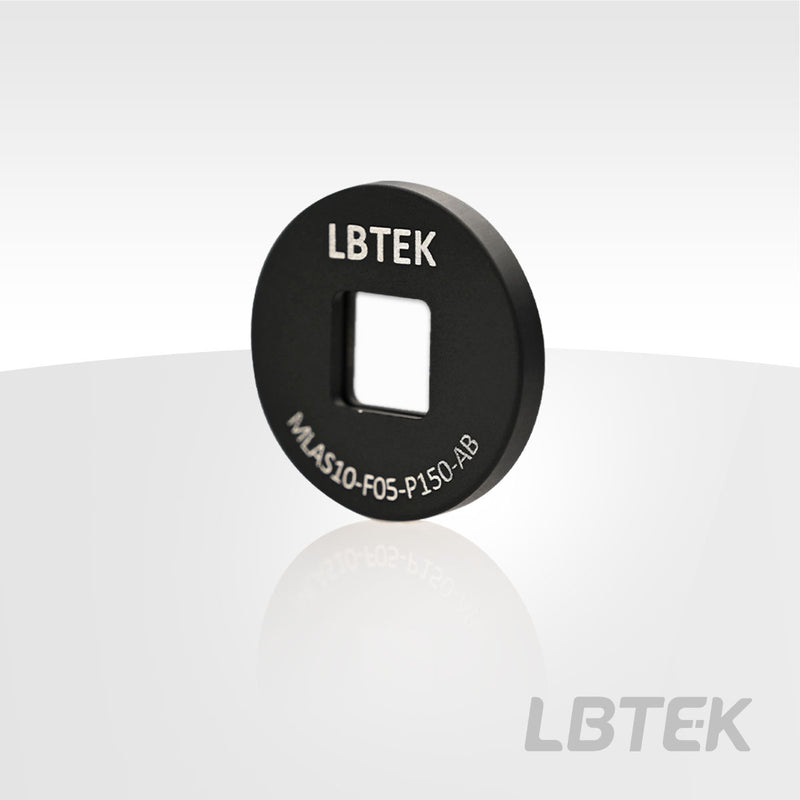

Microlens array, anti-reflection coating: 400 nm-900 nm — Model MLAS10-F05-P150-AB
Operating wavelength 400 nm-900 nm, substrate UV Fused Silica.
Product Description
- Substrate Material: UV Fused Silica
- Mounted in Ø25.4 mm Mount
- Microlens Arrays Available in Round and Square
- Commonly Used in Shack-Hartmann Wavefront Sensors
- Dual-Sided AR Coating
LBTEK microlens arrays consist of microlenses arranged in a two-dimensional grid on a UV-grade fused silica substrate, with both sides coated with an anti-reflection film. LBTEK microlenses are fabricated using photolithography technology, which ensures excellent consistency in the shape and position of each microlens. The microlens array spatially divides the wavefront of a light beam into numerous tiny segments, each of which is focused by the corresponding microlens onto the focal plane. Based on this characteristic, the combination of a microlens array and a CCD array can form a Shack-Hartmann wavefront sensor. LBTEK offers two types of microlens arrays: anti-reflection coated and chromium mask. The unit sizes available are 150 μm and 300 μm. The microlens arrays with a unit size of 150 μm feature circular sublenses, while those with a unit size of 300 μm also feature square sublenses. For other requirements, please contact LBTEK technical support.
Microlens array, anti-reflection coating: 400 nm-900 nm
- Substrate Material: UV Fused Silica
- Operating Wavelength Range: 400 nm-900 nm
- Commonly used in Shack-Hartmann wavefront sensors
LBTEK microlens arrays are mounted in Ø25.4 mm mounts, which can be installed in all Ø25.4 mm optical component holders. The clear aperture of the mount is 9 mm × 9 mm. LBTEK microlens arrays with 400 nm-900 nm anti-reflection coating are available in two models: MLAS10-F05-P150-AB and MLAS10-F15-P300-AB, with circular and square sublenses respectively.
| Reflectance | 1.0% |
| Operating Wavelength | 400 nm-900 nm |
No documents available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

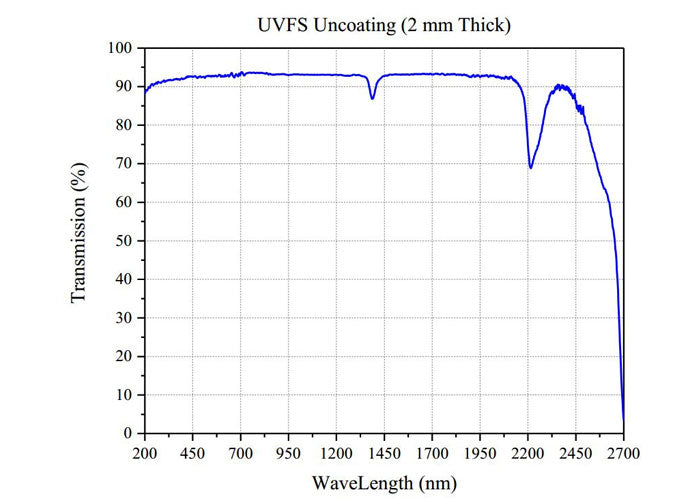

Curve - UVFS Uncoating (2 mm Thick)
