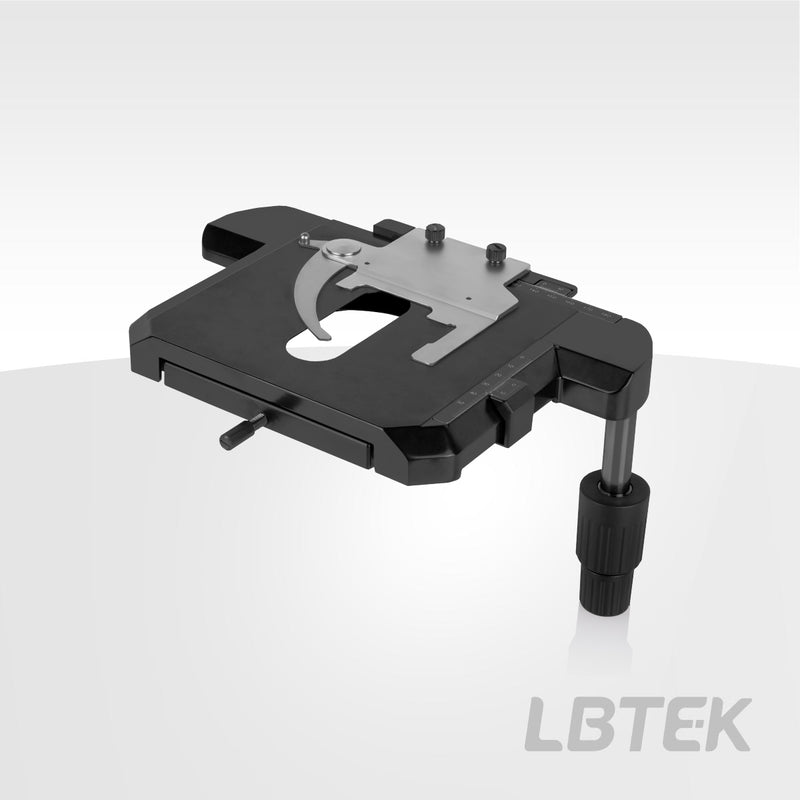

Microscope Translation Stage, Manual XY Axis MSXY-B

The manual microscope stage is easy to operate and offers stable performance, providing smooth movement of 80 mm on the X-axis and 54 mm on the Y-axis. Both the X and Y axes are equipped with vernier scales with an accuracy of 100 μm, enabling high-precision sample positioning. Using the knobs located at the bottom right of the stage, you can independently control the X and Y axes: the entire top plate moves along the Y-axis (front-back direction), while the hand-tightened screw assembly for securing the sample holder moves along the X-axis (left-right direction).

This stage is compatible with the Olympus U-H series slide sample holders. The slide holder is used to mount standard slides and is secured to the stage via two hand-tightened screws located behind the X-axis scale.
