Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflective Coating 1000 nm-1700 nm, Unmounted AC90620-C

AC90620-C
$136.47
In Stock
Key Specifications
Wavelength 1100.0nm
Diameter 6.33mm
Reflectance 0.5%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

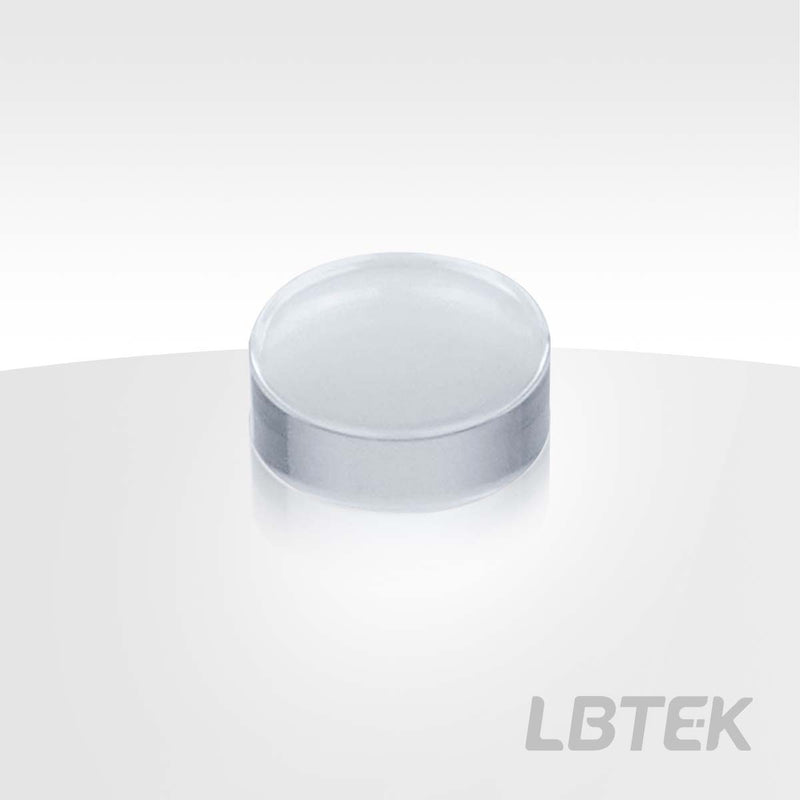

Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflective Coating 1000 nm-1700 nm, Unmounted — Model AC90620-C

Operating wavelength 1100 nm-1700 nm, focal length 13.8 mm, Ø6.330 mm, substrate D-ZK3.

Product Description

  • Optical Material: D-ZK3/D-ZLAF52LA/D-LAK6
  • Operating Wavelength: 1000 nm-1700 nm
  • Applications: Light concentration, collimation, and detection

Compared to ordinary spherical lenses, molded aspheric lenses do not introduce spherical aberration into the transmitted wavefront when focusing or collimating a beam. LBTEK uses D-ZK3, D-ZLAF52LA, and D-LAK6 glass to manufacture molded aspheric lenses in various sizes. These three materials have a higher refractive index than B270 glass, and the molded aspheric lenses made from them offer a larger numerical aperture (NA) and a lower f-number (f/#). To ensure optimal performance, when used for collimating a point light source, the beam should be incident on the flatter side of the lens; when used for focusing a collimated beam, the beam should be incident on the side with greater curvature. Compared to precision-polished aspheric lenses, molded aspheric lenses offer advantages such as better production consistency and suitability for mass production. LBTEK provides molded aspheric lenses with an anti-reflection coating for 1000–1700 nm, available in both unmounted and mounted options. Our lenses are finely processed with strict quality control, ensuring that LBTEK offers high-quality lens products to customers at reasonable prices.

Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflective Coating 1000 nm-1700 nm, Unmounted

  • Substrate Material: D-ZLAF52LA/D-ZK3/D-LAK6
  • Operating Wavelength: 1000 nm-1700 nm
  • Multiple diameter and focal length options available

Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha

Clear ApertureØ5.10 mm(S1), Ø4.54 mm(S2)
Operating Wavelength1100 nm-1700 nm
Diameter6.330 mm
Eccentricity<30 arcmin
Design Wavelength650 nm
Specification Sheet PDF — Download
3D Model (STL) STL — Download
Curve - Molded-Aspheric-Lenses-C-Coating：1000-1700-nm
Curve - Molded-Aspheric-Lenses-C-Coating：1000-1700-nm
