WaveQuanta

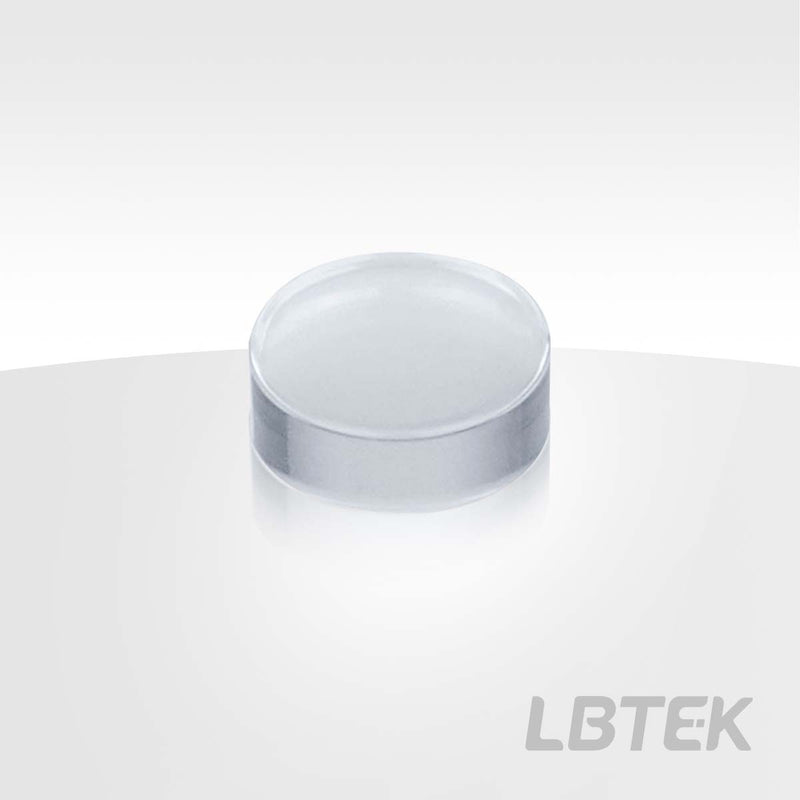

Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC91655-A

AC91655-A
$187.06
In Stock
Key Specifications
Wavelength 350.0nm
Diameter 7.2mm
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted — Model AC91655-A

Operating wavelength 350 nm-700 nm, focal length 5.5 mm, Ø7.200 mm, substrate D-ZK3.

Product Description

  • Optical Element Material: D-ZK3/D-ZLAF52LA/D-LAK6
  • Larger Numerical Aperture (NA), Lower F-number (f/#)
  • Suitable for Focusing, Collimation, and Detection
  • Anti-reflection Coating 350-700 nm, Available in Unmounted and Mounted Options

Compared to conventional spherical lenses, molded aspheric lenses do not introduce spherical aberration into the transmitted wavefront when focusing or collimating a beam. LBTEK utilizes D-ZK3, D-ZLAF52LA, and D-LAK6 glass to manufacture molded aspheric lenses in various sizes. These three materials have higher refractive indices than B270 glass, resulting in molded aspheric lenses with larger numerical apertures (NA) and lower f-numbers (f/#). To ensure optimal performance, when collimating a point source, the beam should be incident on the flatter surface of the lens; when focusing a collimated beam, the beam should be incident on the surface with greater curvature. Compared to precision-polished aspheric lenses, molded aspheric lenses have better production consistency and are suitable for mass production. LBTEK provides molded aspheric lenses with 350-700 nm anti-reflection coatings, available in both unmounted and mounted options. Our lenses are finely processed with strict quality control, ensuring that LBTEK delivers high-quality lens products to customers at reasonable prices.

Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted

  • Optical Element Material: D-ZLAF52LA/D-ZK3/D-LAK6
  • Working Wavelength: 350 nm-700 nm
  • Various Diameter and Focal Length Options Available
Clear ApertureØ6.0 mm(S1) Ø4.9 mm(S2)
Operating Wavelength350 nm-700 nm
Diameter7.200 mm
Eccentricity<30 arcmin
Design Wavelength633 nm
Specification Sheet PDF — Download
3D Model (STL) STL — Download
Curve - Molded-Aspheric-Lenses-A-Coating：350-700-nm
Curve - Molded-Aspheric-Lenses-A-Coating：350-700-nm
product
WaveQuanta

Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm MBCX10313-A

MBCX10313-A
λ 400.0nm
$57.27
Request Quote
product
WaveQuanta

Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm MBCX10310-A

MBCX10310-A
λ 400.0nm
$58.20
Request Quote
product
WaveQuanta

Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm MBCX10309-A

MBCX10309-A
λ 400.0nm
$57.27
Request Quote
product
WaveQuanta

Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm MBCX10307-A

MBCX10307-A
λ 400.0nm
$57.27
Request Quote
product
WaveQuanta

Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm MBCX10305-A

MBCX10305-A
λ 400.0nm
$57.27
Request Quote
product
WaveQuanta

Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm MBCX10304-A

MBCX10304-A
λ 400.0nm
$58.20
Request Quote
product
WaveQuanta

Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm MBCX10303-A

MBCX10303-A
λ 400.0nm
$58.20
Request Quote
product
WaveQuanta

Double-Convex Lenses, N-BK7, AR Coating: 400 nm-700 nm MBCX10621-A

MBCX10621-A
λ 400.0nm
$63.03
Request Quote

Product Family: Molded Aspheric Lenses, Anti-reflection Coating 350 nm-700 nm, D-ZK3/D-ZLAF52LA/D-LAK6 (46 variants)

Product ▴▾ SKU Size ▴▾ Clear Aperture ▴▾ Operating Wavelength ▴▾
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC120653-19-A MAC120653-19-A 6.325 mm Ø4.8 mm(S1) Ø3.4 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC120653-15-A MAC120653-15-A 6.325 mm Ø4.8 mm(S1) Ø3.3 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC111052-A MAC111052-A 4.000 mm Ø3.6 mm(S1) Ø2.3 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC111635-A MAC111635-A 7.200 mm Ø6.6 mm(S1) Ø6.2 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC111016-A MAC111016-A 4.000 mm Ø3.6 mm(S1) Ø2.5 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC111619-A MAC111619-A 7.200 mm Ø5.0 mm(S1) Ø2.9 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC90951-A MAC90951-A 2.650 mm Ø1.5 mm(S1) Ø1.1 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC91213-A MAC91213-A 6.000 mm Ø4.8 mm(S1) Ø3.3 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC90754-A MAC90754-A 2.000 mm Ø1.6 mm(S1) Ø1.4 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC90653-A MAC90653-A 6.325 mm Ø5.1 mm(S1) Ø3.8 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC90621-A MAC90621-A 6.325 mm Ø5.0 mm(S1) Ø3.8 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC91558-A MAC91558-A 6.500 mm Ø5.5 mm(S1) Ø5.1 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC91635-A MAC91635-A 7.200 mm Ø5.5 mm(S1) Ø4.0 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC90851-A MAC90851-A 2.400 mm Ø1.6 mm(S1) Ø1.1 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC91655-A MAC91655-A 7.200 mm Ø6.0 mm(S1) Ø4.9 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC90635-A MAC90635-A 6.325 mm Ø5.2 mm(S1) Ø4.6 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC90657-A MAC90657-A 6.325 mm Ø5.2 mm(S1) Ø5.1 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC90519-A MAC90519-A 4.700 mm Ø3.70 mm(S1) Ø2.72 mm(S2) 400 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC90518-A MAC90518-A 4.700 mm Ø3.70 mm(S1) Ø2.05 mm(S2) 400 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC90620-A MAC90620-A 6.330 mm Ø5.10 mm(S1) Ø4.54 mm(S2) 400 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC110314-A MAC110314-A 3.000 mm Ø2.0 mm(S1) Ø1.1 mm(S2) 400 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC110416-A MAC110416-A 4.500 mm Ø3.6 mm(S1S2) 400 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, with Mount MAC110618-A MAC110618-A 6.325 mm Ø5.0 mm(S1) Ø3.9 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC110416-A AC110416-A 4.500 mm Ø3.6 mm(S1S2) 400 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC110314-A AC110314-A 3.000 mm Ø2.0 mm(S1) Ø1.1 mm(S2) 400 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC90620-A AC90620-A 6.330 mm Ø5.10 mm(S1) Ø4.54 mm(S2) 400 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC90518-A AC90518-A 4.700 mm Ø3.70 mm(S1) Ø2.05 mm(S2) 400 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC90519-A AC90519-A 4.700 mm Ø3.70 mm(S1) Ø2.72 mm(S2) 400 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC90657-A AC90657-A 6.325 mm Ø5.2 mm(S1) Ø5.1 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC90635-A AC90635-A 6.325 mm Ø5.2 mm(S1) Ø4.6 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC91655-A Current AC91655-A 7.200 mm Ø6.0 mm(S1) Ø4.9 mm(S2) 350 nm-700 nm
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC90851-A AC90851-A 2.400 mm Ø1.6 mm(S1) Ø1.1 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC91635-A AC91635-A 7.200 mm Ø5.5 mm(S1) Ø4.0 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC91558-A AC91558-A 6.500 mm Ø5.5 mm(S1) Ø5.1 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC90621-A AC90621-A 6.325 mm Ø5.0 mm(S1) Ø3.8 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC90653-A AC90653-A 6.325 mm Ø5.1 mm(S1) Ø3.8 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC90754-A AC90754-A 2.000 mm Ø1.6 mm(S1) Ø1.4 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC91213-A AC91213-A 6.000 mm Ø4.8 mm(S1) Ø3.3 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC90951-A AC90951-A 2.650 mm Ø1.5 mm(S1) Ø1.1 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC111619-A AC111619-A 7.200 mm Ø5.0 mm(S1) Ø2.9 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC111016-A AC111016-A 4.000 mm Ø3.6 mm(S1) Ø2.5 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC111635-A AC111635-A 7.200 mm Ø6.6 mm(S1) Ø6.2 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC111052-A AC111052-A 4.000 mm Ø3.6 mm(S1) Ø2.3 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC120653-15-A AC120653-15-A 6.325 mm Ø4.8 mm(S1) Ø3.3 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC120653-19-A AC120653-19-A 6.325 mm Ø4.8 mm(S1) Ø3.4 mm(S2) 350 nm-700 nm View
Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, Anti-Reflection Coating 350 nm-700 nm, Unmounted AC110618-A AC110618-A 6.325 mm Ø5.0 mm(S1) Ø3.9 mm(S2) 350 nm-700 nm View
