Motorized Flip Mount Base, Ø1" Optic EM-TMF1
EM-TMF1$5,421.00
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH

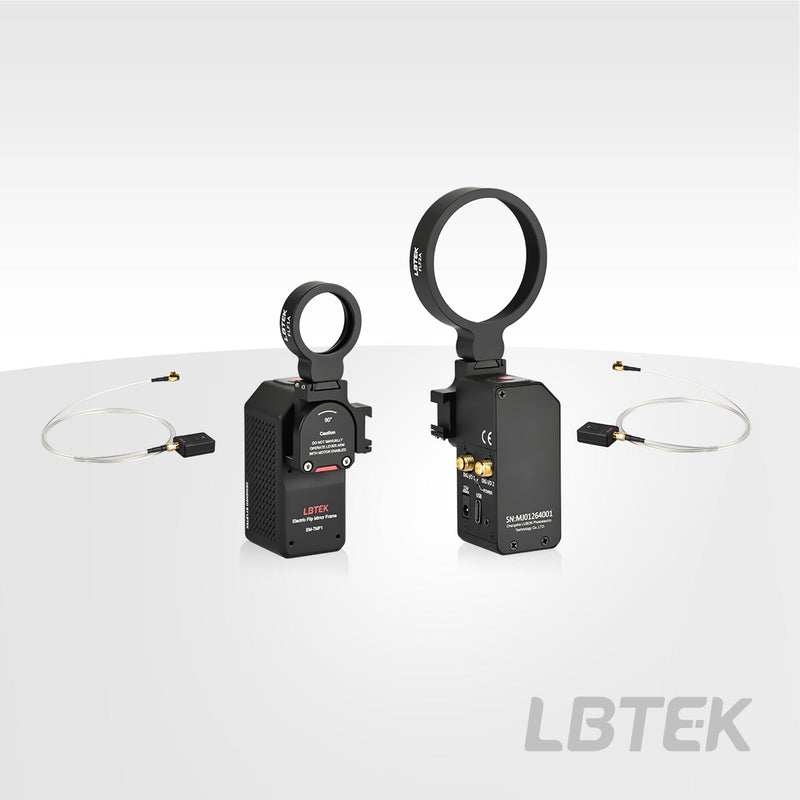

LBTek EM-TMF1 Motorized Flip Mount Base for Ø1" optics. Stepper-motor driven 90° flip with sub-0.05° repeatability. Compatible with TTL trigger and serial control for automated optical path switching.
| Optic diameter | Ø25.4 mm (1") |
| Drive type | Stepper motor |
| Flip range | 90° |
| Repeatability | <0.05° |
| Mounting | M4 / M6 dual thread compatible |
| Power | 24 VDC |
| Control interface | TTL / Serial |
| Material | Aluminum alloy, black anodized |
No documents available for this product.
No CAD drawings available for this product.
Product Family: Electric flip mounting base (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Motorized Flip Mount Base, Ø2" Optic EM-TMF2 |
EM-TMF2
| — | — | — | View |
| Motorized Flip Mount Base, Ø1" Optic EM-TMF1 Current |
EM-TMF1
| — | — | — |
