MT Series Cube Beamsplitter Holders MT-CSB08
MT-CSB08$109.48
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The MT Series Cube Beamsplitter Holders MT-CSB08 from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

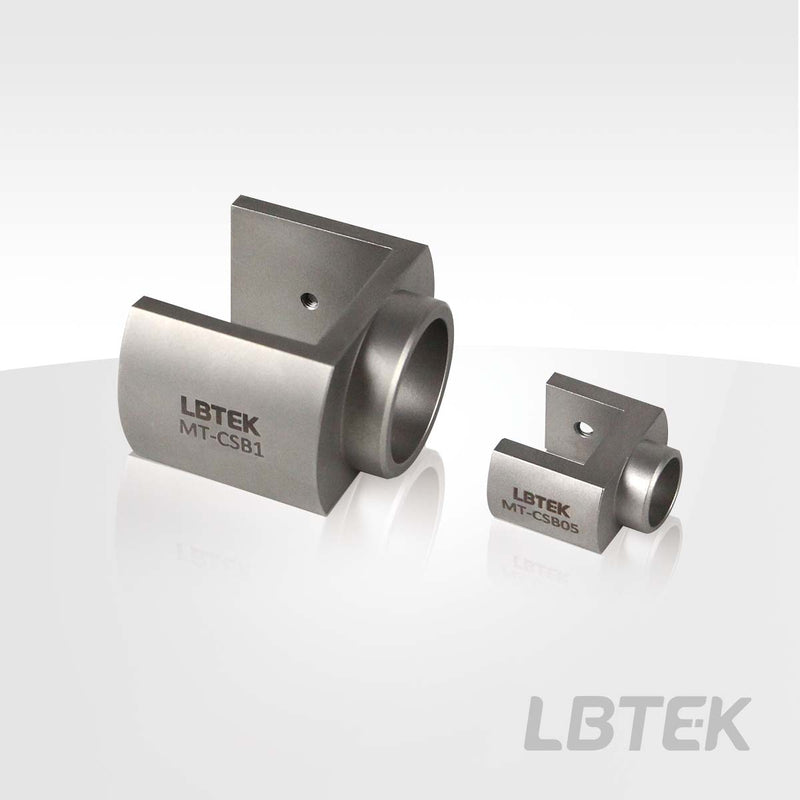

The LBTEK MT Series Cube Beamsplitter Mount is designed to mount 10.0 mm, 12.7 mm, 20.0 mm, and 25.4 mm beamsplitter cubes onto 0.5-inch or 1.0-inch optical mounts. It allows the transmitted beam to pass through the clear aperture of the mount, enabling pitch and yaw adjustments for the beamsplitter cube. Featuring four-sided light transmission and a large clear aperture, this holder secures the beamsplitter cube via a rubber-tipped set screw on the top. The holder head can be directly mounted into optical component mounts with flexible spring pieces or set screw, offering simple and convenient.
Key Features
- Material: 316L Stainless Steel
- Compatible with 0.5, 1.0 inch cube beamsplitters
- For mounting beamsplitters to flexure or setscrew-type mounts
Application
Using MT-CSB1 to mount a beamsplitter cube with a side length of 25.4 mm
| Lead Time | In Stock |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Cube Beamsplitter Holders (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| MT Series Cube Beamsplitter Holders MT-CSB1 |
MT-CSB1
| — | — | — | View |
| MT Series Cube Beamsplitter Holders MT-CSB08 Current |
MT-CSB08
| — | — | — | |
| MT Series Cube Beamsplitter Holders MT-CSB05 |
MT-CSB05
| — | — | — | View |
| MT Series Cube Beamsplitter Holders MT-CSB04 |
MT-CSB04
| — | — | — | View |
| Cube Beamsplitter Holders CSB2 |
CSB2
| — | — | — | View |
| Cube Beamsplitter Holders CSB05 |
CSB05
| — | — | — | View |
| Cube Beamsplitter Holders CSB1 |
CSB1
| — | — | — | View |
