WaveQuanta

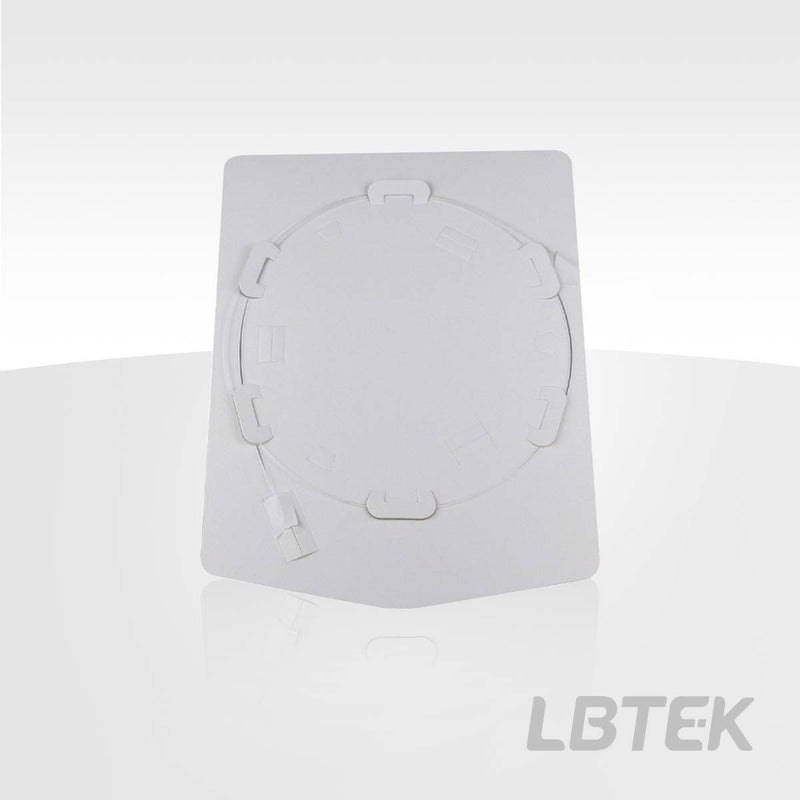

Multimode optical fiber WF600X600/990/1400

WF600X600/990/1400
$1,337.61
In Stock
Key Specifications
Wavelength 300.0nm
Request Quote

Design Tools

Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Optomechanics Lenses
RoHS REACH

LBTEK offers square-core fibers with five core size options: 100×100 μm, 200×200 μm, 400×400 μm, 600×600 μm, and 150×450 μm. Non-circular (square or rectangular) homogenizing fibers possess unique beam homogenization and mode scrambling characteristics. When inputting a Gaussian-distributed laser, they can produce a flat-top beam with uniform energy distribution while achieving higher coupling efficiency compared to circular fibers. These fibers are the preferred choice for beam shaping applications, such as illumination.

  • Square core fiber
  • Fiber length: 1 meter
  • UV/IR wavelength optional
Specifications diagram
Operating Wavelength 300-2400 nm
Fiber core size 600×600 μm
Fiber length 1 m
Numerical Aperture 0.22
Operating Temperature -190-+350 °C
Cladding diameter 990 μm
Coating layer diameter 1400 μm
Fiber core material Quartz glass
Cladding material Fluorine-doped silica cladding
Length Range ≥49.5 (short-term mechanical stress) ≥90 (high laser power usage)
Lead Time: 0.0 week0.0s
