N-BK7 Windows, AR Coating: 400 nm-700 nm OW11-A
OW11-A$89.45
In Stock
Key Specifications
Wavelength
400.0nm
Diameter
12.7mm
Reflectance
0.5%
Design Tools
LIDT Calculator
Verify damage threshold for your laser parameters
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH

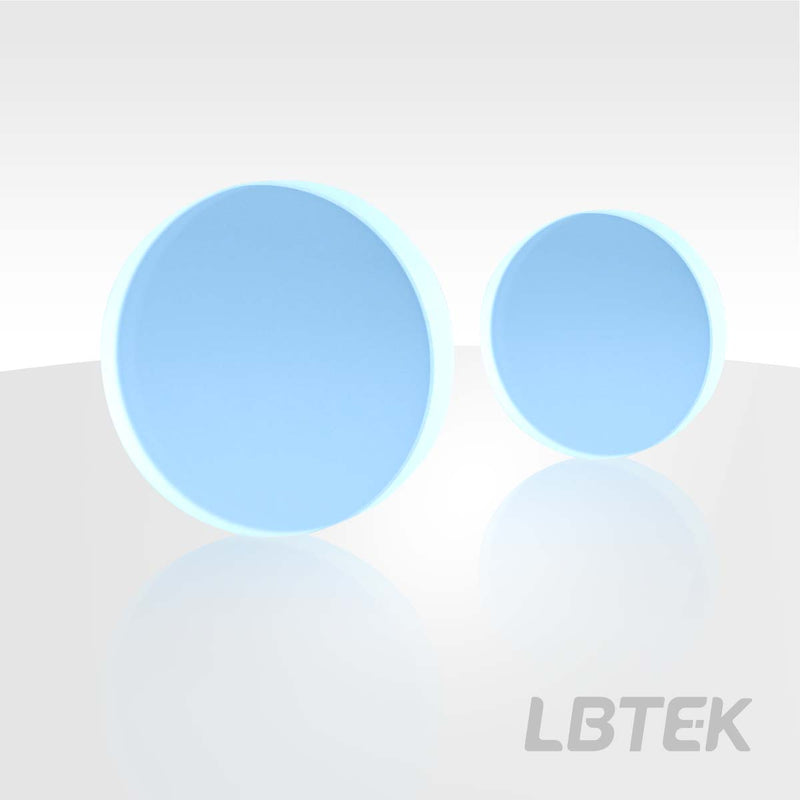

N-BK7 Windows, AR Coating: 400 nm-700 nm — Model OW11-A
Operating wavelength 400 nm-700 nm, Ø12.7 mm, substrate N-BK7.
Product Description
- Optical Material: N-BK7
- Working Wavelength: 400 nm-700 nm
LBTEK offers N-BK7 precision windows, which exhibit excellent transmission performance in the visible and near-infrared spectral ranges. For details, see the transmittance curve. LBTEK provides uncoated windows, as well as windows with anti-reflection coatings for 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1650 nm ranges. Various thicknesses are available, and customized services for special sizes and coating specifications can also be provided. For inquiries, please contact LBTEK Technical Support.
N-BK7 Windows, AR Coating: 400 nm-700 nm
- Optical Material: N-BK7
- Working Wavelength: 400 nm-700 nm
Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha
| Clear Aperture | 90% CA |
| Operating Wavelength | 400 nm-700 nm |
| Thickness | 3.0 mm |
| Diameter | 12.7 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

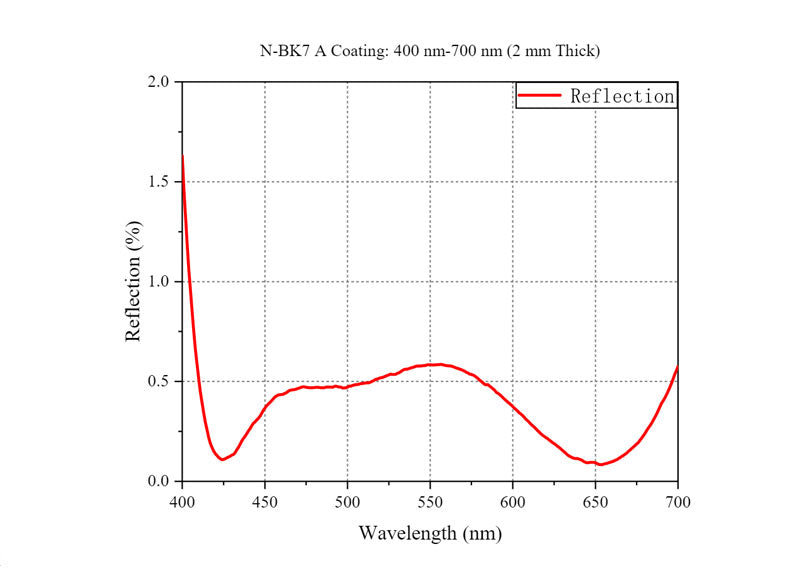

Curve - N-BK7 A
Product Family: N-BK7 Window, AR Coating: 400 nm-700 nm (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| N-BK7 Windows, AR Coating: 400 nm-700 nm OW11-A Current |
OW11-A
| 12.7 mm | 90% CA | 400 nm-700 nm | |
| N-BK7 Windows, AR Coating: 400 nm-700 nm OW12-A |
OW12-A
| 25.4 mm | 90% CA | 400 nm-700 nm | View |
