N-BK7 Windows, Uncoated, 350 nm-2.0 μm OW11
OW11$78.64
In Stock
Key Specifications
Wavelength
350.0nm
Diameter
12.7mm
Design Tools
LIDT Calculator
Verify damage threshold for your laser parameters
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH

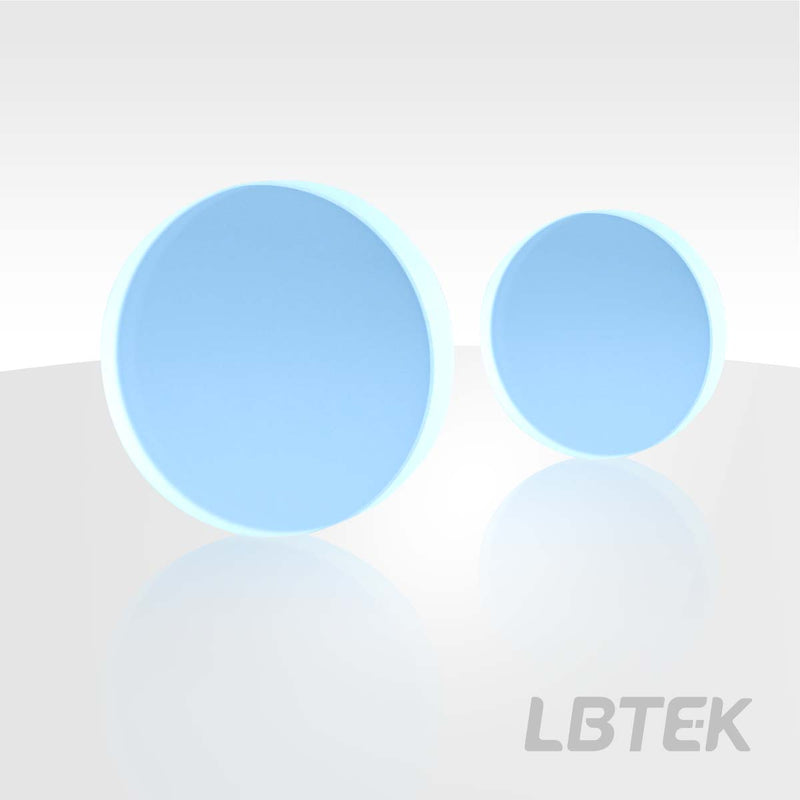

N-BK7 Windows, Uncoated, 350 nm-2.0 μm — Model OW11
Operating wavelength 350 nm-2.0 μm, Ø12.7 mm, substrate N-BK7.
Product Description
- Optical Material: N-BK7
- Operating Wavelength: 350 nm-2.0 μm
LBTEK offers N-BK7 precision windows, which exhibit excellent transmission performance in the visible and near-infrared spectral ranges. For details, see the transmittance curve. LBTEK provides uncoated windows, as well as windows with anti-reflection coatings for 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1650 nm ranges. Various thicknesses are available, and customized services for special sizes and coating specifications can also be provided. For inquiries, please contact LBTEK Technical Support.
N-BK7 Windows, Uncoated, 350 nm-2.0 μm
- Optical Material: N-BK7
- Operating Wavelength: 350 nm-2.0 μm
Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha
| Clear Aperture | 90% CA |
| Operating Wavelength | 350 nm-2.0 μm |
| Thickness | 3.0 mm |
| Diameter | 12.7 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: N-BK7 Window, Uncoated, 350 nm-2.0 μm (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| N-BK7 Windows, Uncoated, 350 nm-2.0 μm OW11 Current |
OW11
| 12.7 mm | 90% CA | 350 nm-2.0 μm | |
| N-BK7 Windows, Uncoated, 350 nm-2.0 μm OW12 |
OW12
| 25.4 mm | 90% CA | 350 nm-2.0 μm | View |
