NBS 1952 Resolution Test Target RTS3DD-P
RTS3DD-P$447.58
In Stock
Design Tools
View all 49 calculators →RoHS
REACH

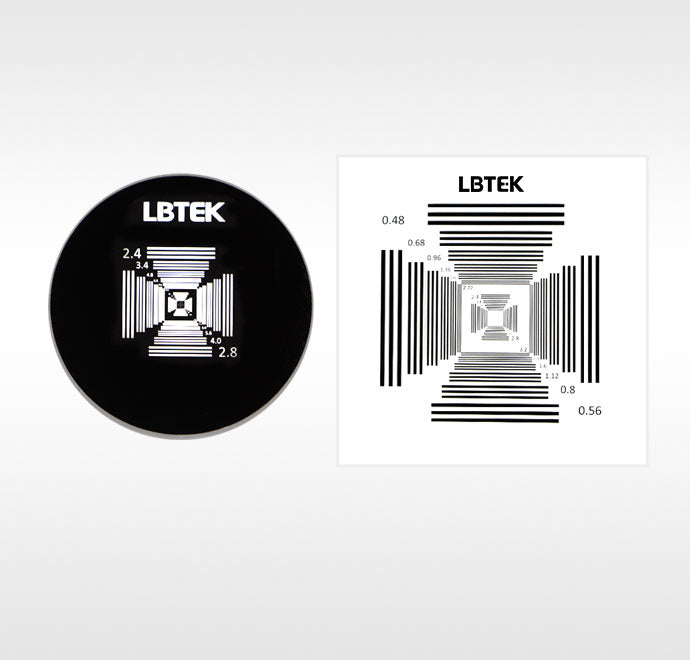

NBS 1952 Resolution Test Target RTS3DD-P
NBS 1952 Resolution Test Target — high-quality optical component.
Overview
LBTek precision-printed test target for resolution, alignment, and calibration measurements.
Key Features
- Specifications available on request
Applications
- Resolution testing
- MTF measurement
- System alignment
- Calibration
- Optical metrology
| Surface Flatness | ≤15 μm |
| Surface Quality (S-D) | 40/20 |
| Lead Time | In Stock |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Curve - Transmission of Soda Lime Glass, 0°AOI
Curve - Chromium Coating, 5°AOI
Product Family: NBS 1952 Resolution Test Target (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| NBS 1952 Resolution Test Target RTS3DD-P Current |
RTS3DD-P
| — | — | — | |
| NBS 1952 Resolution Test Target RTS3DD-N |
RTS3DD-N
| — | — | — | View |
| NBS 1952 Resolution Test Target RTR1DC-N |
RTR1DC-N
| — | — | — | View |
| NBS 1952 Resolution Test Target RTR1DC-P |
RTR1DC-P
| — | — | — | View |
