What is the damage threshold of Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted MP10621-A?

Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted MP10621-A has a laser-induced damage threshold (LIDT) of 0.19 J/cm².

What are the physical dimensions of Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted MP10621-A?

Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted MP10621-A dimensions: Diameter: 25.4 mm.

What is the focal length of Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted MP10621-A?

Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted MP10621-A has a focal length of 500.0 mm.

WaveQuanta

Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted MP10621-A

Name: Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted MP10621-A
Brand: WaveQuanta
SKU: MP10621-A
Price: 42.96 SGD
Availability: InStock

MP10621-A

$42.96

In Stock

Key Specifications

Wavelength 400.0nm

Diameter 25.4mm

LIDT 0.19J/cm²

Reflectance 0.5%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted — Model MP10621-A

Operating wavelength 400 nm-700 nm, focal length -500.0 mm, Ø25.4 mm, substrate N-BK7.

Product Description

Optical Material: N-BK7;
Operating Wavelength: 400 nm-700 nm (AR Coating);
Application: imaging, beam expander or reducer, convergence;

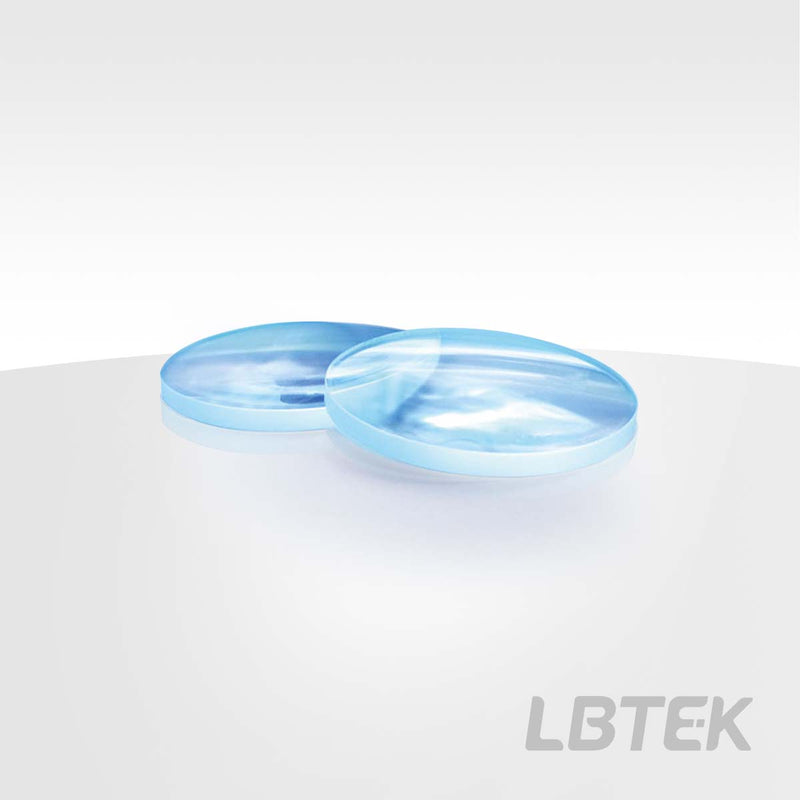

The negative meniscus lens from LBTEK consists of two surfaces with similar radii of curvature (the concave surface having a smaller radius than the convex surface), resulting in a negative focal length. Typically used for beam expansion/reduction, focal length extension, or numerical aperture reduction, this lens minimizes spherical aberration when the convex surface faces incident light during beam expansion/collimation or divergent light applications, while the concave surface should face incident light for converging beam collimation. Both surfaces are coated with 400-700 nm AR coatings to reduce surface reflectivity. While N-BK7 is the most common lens material for visible light and near-infrared applications, LBTEK manufactures these lenses using both N-SF11 and N-BK7 materials for diverse optical requirements. All lenses undergo precision machining and strict quality control, ensuring LBTEK delivers high-quality optical products at competitive prices.

Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted

Substrate Material: N-BK7
Operating Wavelength: 400 nm-700 nm

Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha

Clear Aperture	90% CA
Damage Threshold	0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Diameter Tolerance	+0.00/-0.10 mm
Clear Aperture	90% CA
Operating Wavelength	400 nm-700 nm
Diameter	25.4 mm
Eccentricity	≤3 arcmin
Design Wavelength	587.6 nm
Damage Threshold	0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)

Low damage threshold detected (0.19 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.

Specification Sheet PDF — Download

3D Model (STL) STL — Download

Curve - N-BK7 UN

Product Family: Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm (9 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted MP10615-A	`MP10615-A`	25.4 mm	90% CA	400 nm-700 nm	View
Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted MP10613-A	`MP10613-A`	25.4 mm	90% CA	400 nm-700 nm	View
Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted MP10614-A	`MP10614-A`	25.4 mm	90% CA	400 nm-700 nm	View
Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted MP10618-A	`MP10618-A`	25.4 mm	90% CA	400 nm-700 nm	View
Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted MP10619-A	`MP10619-A`	25.4 mm	90% CA	400 nm-700 nm	View
Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted MP10620-A	`MP10620-A`	25.4 mm	90% CA	400 nm-700 nm	View
Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted MP10621-A Current	`MP10621-A`	25.4 mm	90% CA	400 nm-700 nm
Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted MP10623-A	`MP10623-A`	25.4 mm	90% CA	400 nm-700 nm	View
Negative Meniscus Lens, N-BK7, AR Coating: 400 nm-700 nm MMP10615-A	`MMP10615-A`	25.4 mm	90% CA	400 nm-700 nm	View
