Ø12.7 mm Vacuum Rods and Accessories VSS-MT-OP05A-25
VSS-MT-OP05A-25$46.81
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Ø12.7 mm Vacuum Rods and Accessories VSS-MT-OP05A-25 from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

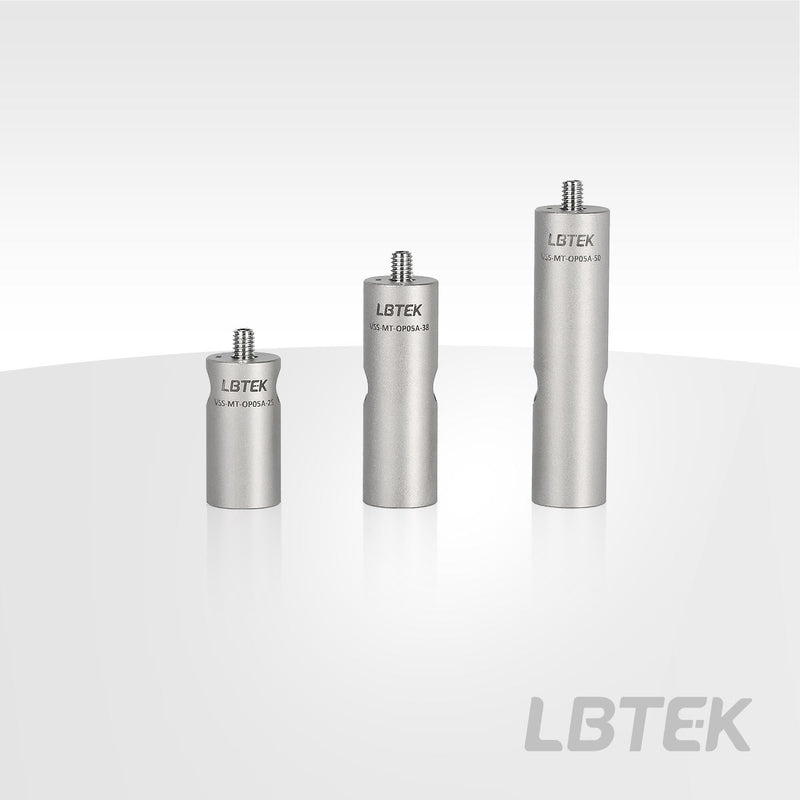

LBTEK VSS Vacuum Series Posts are made of 316L stainless steel, heat-treated, and stress-relieved, offering high stability. Each post features an M4 thread on the top and an M6 thread on the bottom, both with a Ø2 mm locating hole for positioning optical component mounts. The VSS series employs a unique vacuum structural design. During packaging, a vacuum M4 set screw (with an air vent) is installed on the top of the vacuum post. The vacuum post series is available in various lengths, currently offering posts in 25 mm, 38 mm, and 50 mm lengths.
Key Features
- Bottom M6 thread, top M4 thread
- Top mounts one M4 vacuum cup set screw (with air hole)
- Length 25 mm, 38 mm, 50 mm optional
Application
VSS series connecting rods and pressure blocks are used in combination
| Lead Time | In Stock |
