Ø25 mm vacuum rod and accessories VSS-MT-PHC25
✔ In Stock — Ships Today

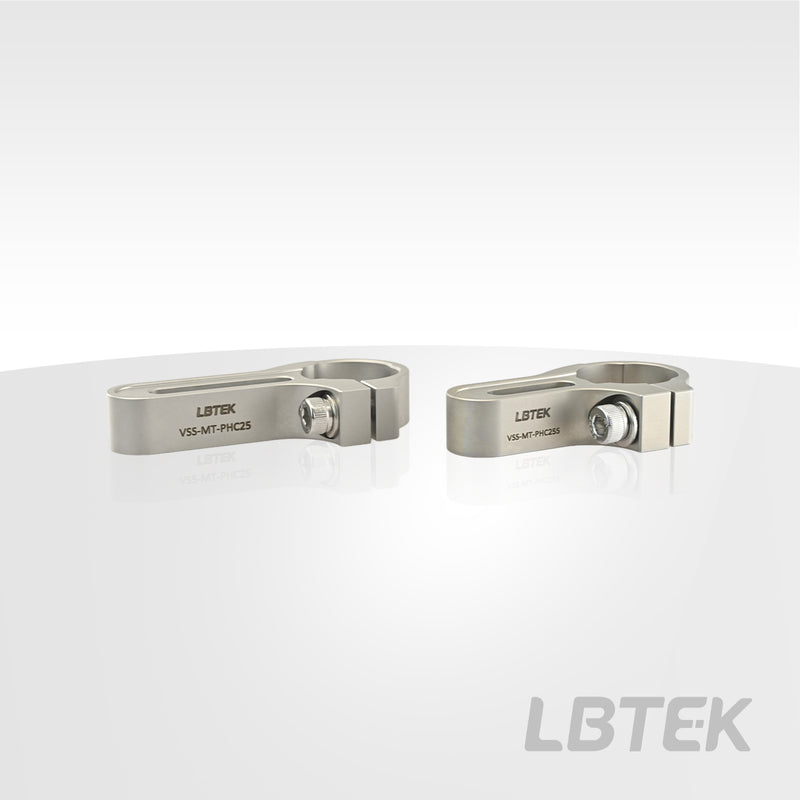

LBTEK Vacuum Gap-Free Flexible Clamp, used for mounting Ø25 mm vacuum rods. The flexible clamp and mounting slot are secured by separate vacuum screws. The rod is locked by an M6 hex socket vacuum cap screw on the side of the flexible clamp. Each clamp comes with one M6 hex socket vacuum screw and one Ø6 mm vacuum flat washer for slotted hole installation. Note: the rough side of the washer should face the screw, and the smooth side should face the clamp. Due to the flexible design of the product, do not tighten the screw when the clamp is empty, as this will cause damage to the product.
Key Features
- For Ø25 mm extension rod
- Different waist-shaped counterbore lengths can be selected according to requirements
- 3-point contact, flexible clamping mechanism
- Includes M6 vacuum screw (with air hole)
Application
Vacuum gap-free flexible clamp block compatible with Ø25 mm vacuum connecting rod
| Lead Time | 6.0 weeks |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
