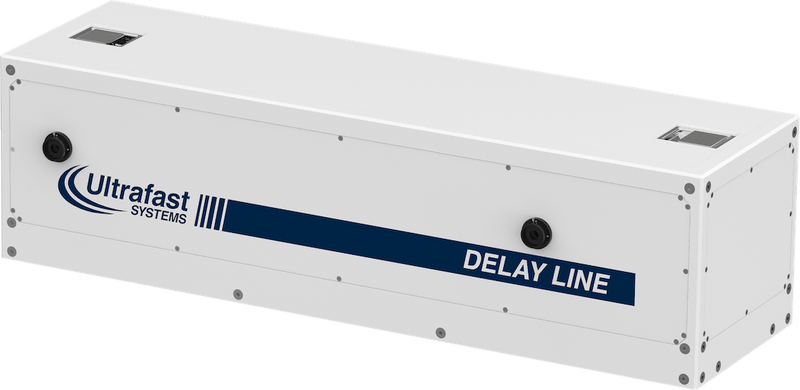

Optical Delay Line (FastScan)
Contact for pricing
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
Complete Your Setup
RoHS
REACH
An OPTICAL DELAY LINE is a critical element of any ultrafast pump-probe (or pump-gate) set-up. Even a small change in the beam pointing (laser beam drift, moved mirrors, etc.) can compromise the quality of your data.
Key Features
- Fully automated and hands-off alignment of the delay line. Does not require any special training.
- Automatically restores the original delay line alignment and the beam pointing after the delay line.
- Typical alignment time is 3-5 min.
- High level of precision, unattainable with manual methods. Beam pointing drift of <10 µm at sample position throughout an 8 ns delay range.
- A shorter translation stage allows for faster travel between time points. This is very useful for random time stepping.
- SPECTROMETERS & ACCESSORIES
- OPTICAL PARAMETRIC AMPLIFIERS
| Models | Specification |
|---|---|
| Type | Patented FastScan optical delay line |
Configuration is application-dependent — contact WaveQuanta for a tailored quotation.
Source: Ultrafast Systems manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No documents available for this product.
No CAD drawings available for this product.
Product Family: Accessories & Sample Handling (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Translating Sample Holder |
| — | — | — | Contact |
| Optical Delay Line (FastScan) Current |
| — | — | — | |
| Magnetic Stirrer |
| — | — | — | Contact |
| Beam Routing Optics |
| — | — | — | Contact |
