Optical Fibers and Probes LB-XSR200-Y7JR-1.0

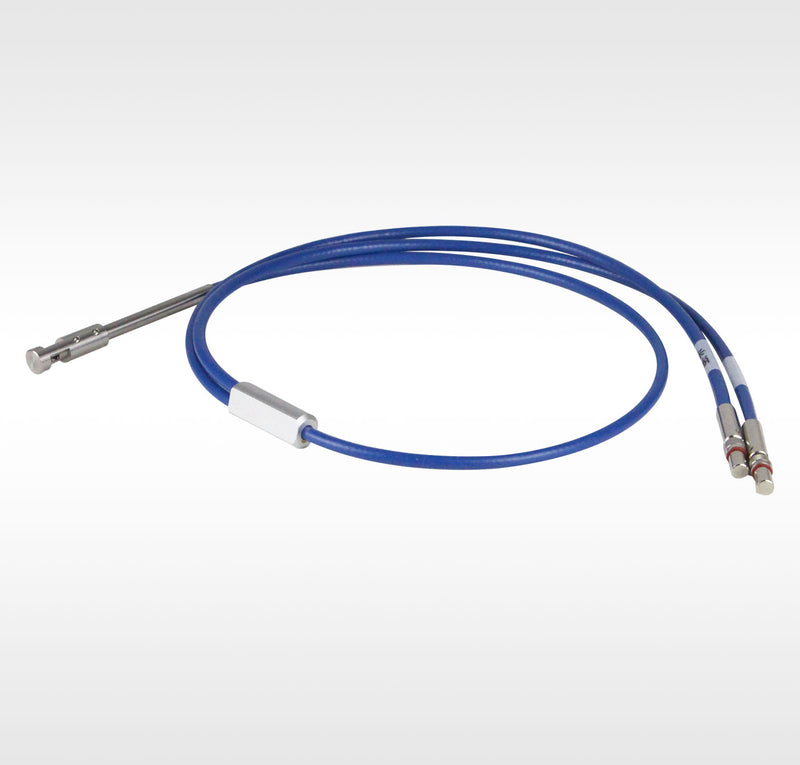

The LBTEK Immersion Y-Type Quartz Fiber Optic can be combined with a fiber optic spectrometer for measuring the absorbance and transmittance of solutions. The equipped stainless steel probe is particularly suitable for embedding into industrial production liquid flows for real-time sample monitoring. The immersion Y-type quartz fiber adopts a Y-shaped configuration, with two fibers sharing a common end (7-core probe) for measuring the sample under test. The outer diameter of this probe is 6.35 mm, and the optical path length can be customized by users within a range of 1 mm to 10 mm. In the metal middle section of the probe, the fiber bundle is divided into two parts: the 6-core port connects to the light source for coupling input of illumination, while the 1-core port connects to the spectrometer for coupling output of reflected light signals. LBTEK's Immersion Fiber Optic Probe is compatible with the LBFS-TA1 reflection measurement bracket.

• Operating wavelength 185-1100 nm
• Connector type: Standard SMA905
• Using German imported quartz fiber core
