WaveQuanta

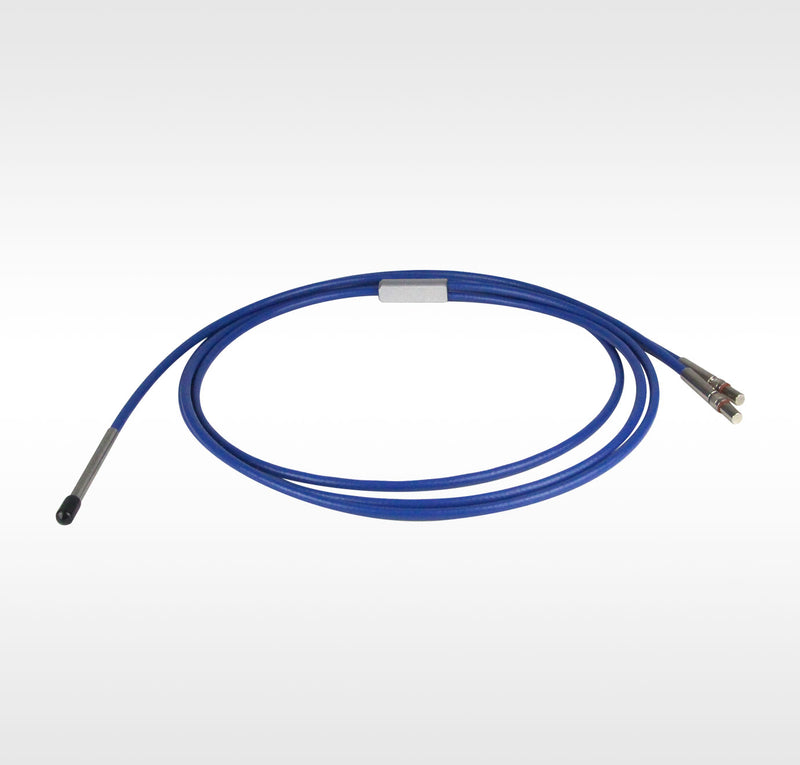

Optical Fibers and Probes LBUV400-Y7TA-2.0

LBUV400-Y7TA-2.0
$1,634.83
In Stock
Key Specifications
Wavelength 190.0nm
Request Quote

Design Tools

Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Optomechanics Lenses
RoHS REACH

LBTEK's Reflective Fiber Optic Probes can be combined with a fiber optic spectrometer for reflectance measurements of solid and powdered samples. The reflective fiber is configured in a Y-type arrangement, with two fibers sharing a common end (7-core probe) for measuring the sample under test. The other two ends form separate measurement branches: the 6-core port connects to the light source for coupling the illumination input, while the 1-core port connects to the spectrometer for coupling the reflected light signal output. LBTEK's Reflective Fiber Optic Probes are compatible with the LBFS-TA1 reflectance measurement bracket.

  • Connector Type: SMA905
  • Multi-layer Metal Armor Package
  • Compatible with LBFS-TA1 Sampling Bracket
Specifications diagram
Operating Wavelength 190-1100 nm
Fiber length 2 m
Fiber core diameter 400 μm
Numerical Aperture 0.22±0.02
Operating Temperature -20°C to 85°C
Interface Type SMA905
Cable Construction Blue PVC multi-layer spiral tube
Specification Sheet PDF — Download
Lead Time: 0.0 week0.0s
No CAD drawings available for this product.
