What is the damage threshold of Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm NCY105209-A?

Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm NCY105209-A has a laser-induced damage threshold (LIDT) of 0.19 J/cm².

What is the focal length of Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm NCY105209-A?

Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm NCY105209-A has a focal length of 20.0 mm.

WaveQuanta

Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm NCY105209-A

Name: Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm NCY105209-A
Brand: WaveQuanta
SKU: NCY105209-A
Price: 133.50 SGD
Availability: InStock

NCY105209-A

$133.50

In Stock

Key Specifications

Wavelength 400.0nm

LIDT 0.19J/cm²

Reflectance 0.5%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm — Model NCY105209-A

Operating wavelength 400 nm-700 nm, focal length -20.0 mm, substrate N-BK7.

Product Description

Optical Material: N-BK7
Working Wavelength: 400 nm-700 nm (AR Coating)
Application: Imaging, Unidirectional Beam Collimation, Beam Shaping

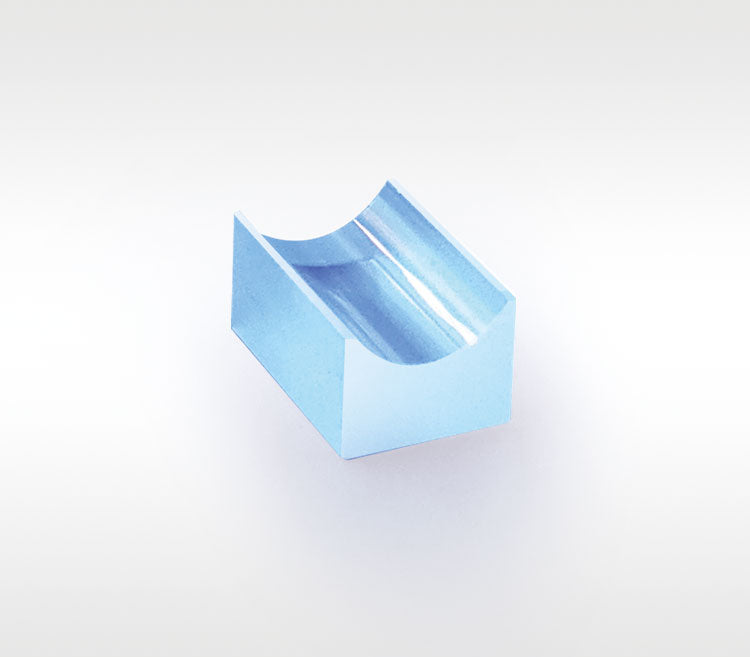

The plano-concave cylindrical lens has one flat surface and one cylindrical surface, featuring a negative focal length. Unlike spherical lenses, cylindrical lenses only act on the beam in one direction. Cylindrical lenses are generally used for beam shaping, with typical applications including collimation with dual cylindrical lens assemblies and circularizing the output beam of laser diodes. To reduce spherical aberration, plano-concave cylindrical lenses are used to diverge a collimated beam into a spot, and the beam should be incident on the curved surface of the lens. LBTEK chooses to manufacture various lenses using N-BK7, which is the most common lens material and widely used in visible and near-infrared applications. LBTEK offers uncoated plano-concave cylindrical lenses as well as lenses with three types of anti-reflection coatings: 400 nm–700 nm, 700 nm–1100 nm, and 1100 nm–1650 nm. Our lenses are finely processed with strict quality control, ensuring that LBTEK provides users with high-quality lens products at reasonable prices.

Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm

Substrate Material: N-BK7
Operating Wavelength: 400 nm-700 nm (AR Coating)

Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha

Clear Aperture	90% CA
Damage Threshold	0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Clear Aperture	90% CA
Operating Wavelength	400 nm-700 nm
Eccentricity	≤5 arcmin
Design Wavelength	587.6 nm
Substrate Material	H x L= 15.0 mm x 30.0 mm
Damage Threshold	0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)

Low damage threshold detected (0.19 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.

Specification Sheet PDF — Download

3D Model (STL) STL — Download

Curve - N-BK7 UN

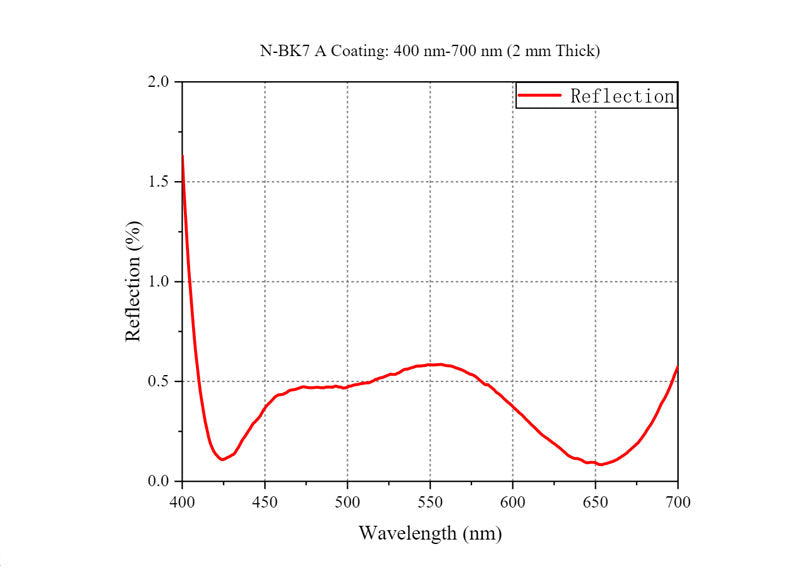

Curve - N-BK7 A

Product Family: Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm (8 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm NCY107R13-A	`NCY107R13-A`	25.4 mm	90% CA	400 nm-700 nm	View
Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm NCY101101-A	`NCY101101-A`	90% CA	90% CA	400 nm-700 nm	View
Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm NCY102104-A	`NCY102104-A`	90% CA	90% CA	400 nm-700 nm	View
Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm NCY104107-A	`NCY104107-A`	90% CA	90% CA	400 nm-700 nm	View
Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm NCY105209-A Current	`NCY105209-A`	90% CA	90% CA	400 nm-700 nm
Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm NCY108114-A	`NCY108114-A`	90% CA	90% CA	400 nm-700 nm	View
Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm NCY103205-A	`NCY103205-A`	90% CA	90% CA	400 nm-700 nm	View
Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm NCY108112-A	`NCY108112-A`	90% CA	90% CA	400 nm-700 nm	View
