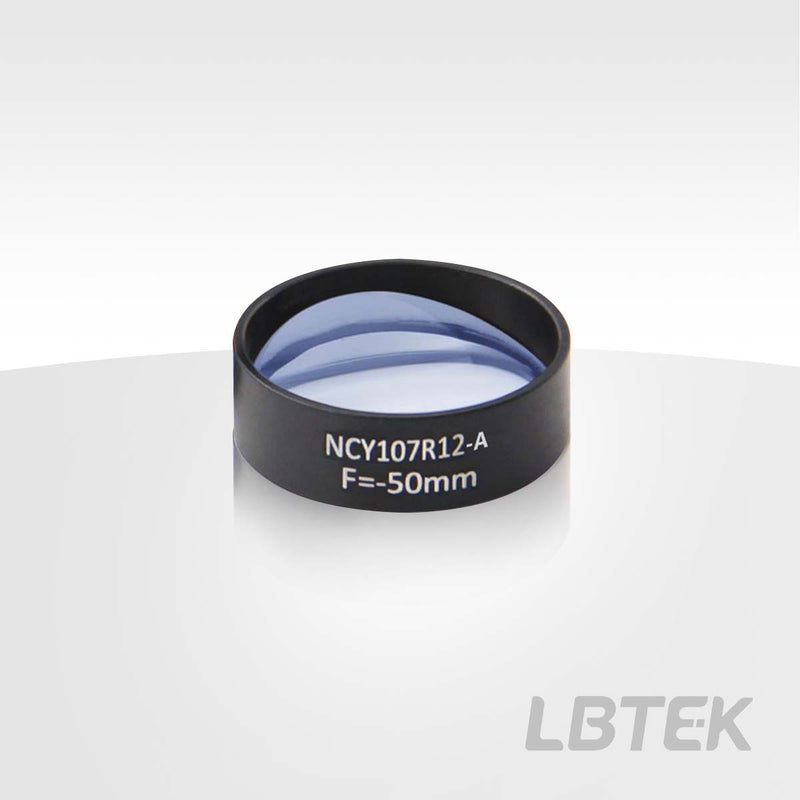

Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm NCY107R13-A

NCY107R13-A
$151.92
In Stock
Key Specifications
Wavelength 400.0nm
Diameter 25.4mm
LIDT 0.19J/cm²
Reflectance 0.5%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm — Model NCY107R13-A

Operating wavelength 400 nm-700 nm, focal length -75.0 mm, Ø25.4 mm, substrate N-BK7.

Product Description

  • Optical Material: N-BK7
  • Working Wavelength: 400 nm-700nm (AR Coating)
  • Circular geometry, housed in mechanical mount
  • Application: Imaging, unidirectional beam collimation, beam shaping

Plano-concave cylindrical lenses have one flat surface and one cylindrical surface, featuring a negative focal length. Unlike spherical lenses, cylindrical lenses act on the light beam in only one direction. Cylindrical lenses are commonly used for beam shaping, with typical applications including collimation using dual cylindrical lens pairs and circularizing the output beam of laser diodes. To minimize spherical aberration, when using plano-concave cylindrical lenses to diverge a collimated beam into a spot, the beam should be incident on the curved surface of the lens. LBTEK chooses to manufacture various lenses using N-BK7, the most common lens material widely used in visible and near-infrared applications. LBTEK offers uncoated plano-concave cylindrical lenses as well as lenses with three types of anti-reflection coatings: 400-700 nm, 700-1100 nm, and 1100-1650 nm. All our lenses are precision-engineered with strict quality control, ensuring that LBTEK provides high-quality lens products at reasonable prices.

Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 400 nm-700 nm

  • Substrate Material: N-BK7
  • Circular geometry, mounted in mechanical housing
  • Operating Wavelength: 400 nm-700nm (with anti-reflection coating)

Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha

Clear Aperture90% CA
Damage Threshold0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Diameter Tolerance+0.0/-0.1 mm
Clear Aperture90% CA
Operating Wavelength400 nm-700 nm
Diameter25.4 mm
Eccentricity≤ 3arcmin
Design Wavelength587.6 nm
Damage Threshold0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Low damage threshold detected (0.19 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

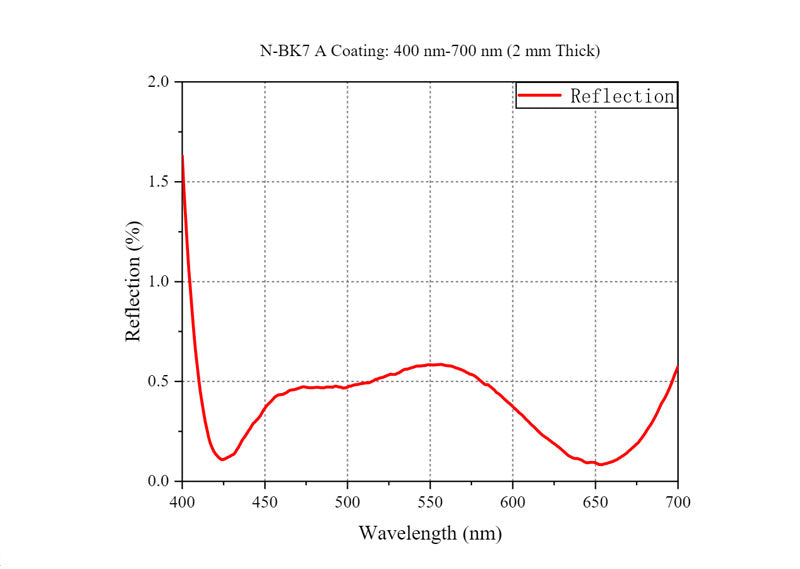

Curve - N-BK7 A
