What wavelength range does Plano-Concave Lens 1300-1600nm F-50 support?

Plano-Concave Lens 1300-1600nm F-50 operates at a center wavelength of 1450.0 nm. The supported wavelength range is 1300.0–1600.0 nm.

What are the physical dimensions of Plano-Concave Lens 1300-1600nm F-50?

Plano-Concave Lens 1300-1600nm F-50 dimensions: Diameter: 25.4 mm. Thickness: 2.0 mm.

What coating does Plano-Concave Lens 1300-1600nm F-50 have?

Plano-Concave Lens 1300-1600nm F-50 features a Dielectric Coating coating.

What is the focal length of Plano-Concave Lens 1300-1600nm F-50?

Plano-Concave Lens 1300-1600nm F-50 has a focal length of -50.0 mm.

What substrate material is Plano-Concave Lens 1300-1600nm F-50 made from?

Plano-Concave Lens 1300-1600nm F-50 is manufactured using K9 substrate.

Is Plano-Concave Lens 1300-1600nm F-50 available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

WAVEQUANTA

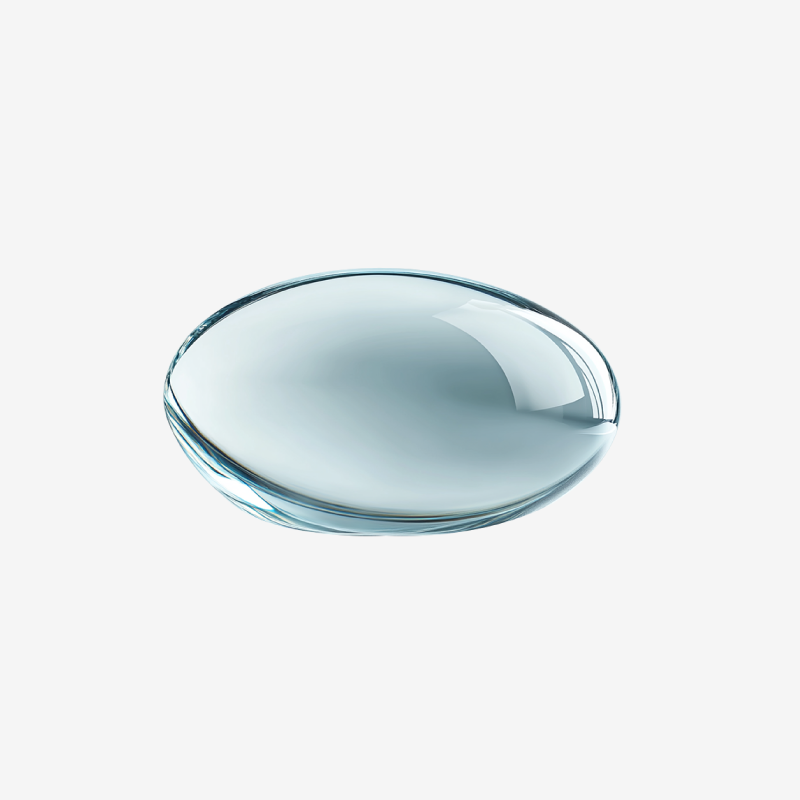

Plano-Concave Lens 1300-1600nm F-50

Name: Plano-Concave Lens 1300-1600nm F-50
Brand: WAVEQUANTA
SKU: O-PLCC-25.4-BL145
Price: 149.60 SGD
Availability: InStock

O-PLCC-25.4-BL145

$149.60

In Stock

Key Specifications

Wavelength 1450.0nm

Diameter 25.4mm

Request Quote

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening Gaussian Beam Calculator Model beam propagation through your optical system Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Nonlinear Crystals Optomechanics

RoHS REACH

Overview

Plano-concave mirror for applications applications. Negative focal length lens for beam expansion and ultrafast laser beam shaping. AR coating reduces reflection loss for high transmission efficiency.

Applications

Beam expander / collimator design
Laser beam relay imaging
Optical system focus shifting
Ultrafast laser conditioning

Construction & Performance

Substrate: K9
Coating: Dielectric Coating (AR@1300-1600nm)
Diameter: 25.4 mm (+0/-0.1mm)
Thickness: 2.0 mm (+0/-0.1mm)
Focal Length: -50.0 mm
Lens Shape: Plano-Concave

Storage & Handling

Store in clean, dry environment at 20-25°C and 40-60% relative humidity. Handle with lint-free gloves and avoid mechanical contact with optical surfaces. Clean using optical-grade solvents and lens tissue when necessary.

Center Wavelength	1450.0 nm
Wavelength Range	1300.0 – 1600.0 nm
Focal Length	-50.0 mm
Diameter	25.4 mm (+0/-0.1mm)
Thickness	2.0 mm (+0/-0.1mm)
Substrate	K9
Lens Shape	Plano-Concave
Coating Type	Dielectric Coating
Coating Specification	AR@1300-1600nm

No documents available for this product.

No CAD drawings available for this product.

Product Family: Concave Lenses (44 variants)

Product ▴▾	SKU	Diameter ▴▾	Wavelength ▴▾	Focal Length ▴▾
Plano-Concave Lens 750-850nm F-250	`O-PLCC-25.4-BL134`	25.4 mm	800.0 nm	-250.0 mm	View
Plano-Concave Lens 1300-1600nm F-50 Current	`O-PLCC-25.4-BL145`	25.4 mm	1450.0 nm	-50.0 mm
Plano-Concave Lens F-100	`O-PLCC-25.4-BL148`	25.4 mm	—	-100.0 mm	View
Plano-Concave Lens 2000-5000nm F-75	`O-PLCC-25.4-BL147`	25.4 mm	3500.0 nm	-75.0 mm	View
Plano-Concave Lens 615-1100nm F=100	`O-PLCC-25.4-4.0-BL367`	25.4 mm	857.5 nm	-100.0 mm	View
Plano-Concave Lens 615-1100nm F=75	`O-PLCC-25.4-4.0-BL366`	25.4 mm	857.5 nm	-75.0 mm	View
Plano-Concave Lens 615-1100nm F=50	`O-PLCC-25.4-4.0-BL365`	25.4 mm	857.5 nm	-50.0 mm	View
Plano-Concave Lens 650-1100nm F=-750	`O-PLCC-25.4-4.0-BL363`	25.4 mm	875.0 nm	-750.0 mm	View
Plano-Concave Lens 315-650nm F=-50	`O-PLCC-25.4-4.0-BL362`	25.4 mm	482.5 nm	-50.0 mm	View
Plano-Concave Lens 1050-2060nm F=-50	`O-PLCC-25.4-4.0-BL361`	25.4 mm	1555.0 nm	-50.0 mm	View
Plano-Concave Lens 1050-2060nm F=-100	`O-PLCC-25.4-4.0-BL360`	25.4 mm	1555.0 nm	-100.0 mm	View
Plano-Concave Lens 1064nm F-75	`O-PLCC-25.4-25.4-BL143`	25.4 mm	1064.0 nm	-75.0 mm	View
Plano-Concave Lens 1064nm F-50	`O-PLCC-25.4-25.4-BL142`	25.4 mm	1064.0 nm	-50.0 mm	View
Plano-Concave Lens 900-1100nm F=-500	`O-PLCC-25.4-2.0-BL364`	25.4 mm	1000.0 nm	-500.0 mm	View
Plano-Concave Lens 650-1100nm F=-25.4	`O-PLCC-25.4-2.0-BL359`	25.4 mm	875.0 nm	-25.4 mm	View
Plano-Concave Lens 1000-1080nm F-150	`O-PLCC-25.4-2.0-BL139`	25.4 mm	1040.0 nm	-150.0 mm	View
Plano-Concave Lens 1000-1080nm F-100	`O-PLCC-25.4-2.0-BL138`	25.4 mm	1040.0 nm	-100.0 mm	View
Plano-Concave Lens 355-445nm F25.4	`O-PLCC-25.4-2.0-BL119`	25.4 mm	400.0 nm	25.4 mm	View
Plano-Concave Lens 256-276nm F25.4	`O-PLCC-25.4-2.0-BL118`	25.4 mm	266.0 nm	25.4 mm	View
Plano-Concave Lens 1300-2060nm F-100	`O-PLCC-12.7-BL146`	12.7 mm	1680.0 nm	-100.0 mm	View
Plano-Concave Lens 1300-2060nm F-20	`O-PLCC-12.7-BL144`	12.7 mm	1680.0 nm	-20.0 mm	View
Plano-Concave Lens 1028-1064nm F-1000	`O-PLCC-12.7-BL141`	12.7 mm	1046.0 nm	-1000.0 mm	View
Plano-Concave Lens 1028-1064nm F-700	`O-PLCC-12.7-BL140`	12.7 mm	1046.0 nm	-700.0 mm	View
Plano-Concave Lens 1000-1080nm F-75	`O-PLCC-12.7-BL137`	12.7 mm	1040.0 nm	-75.0 mm	View
Plano-Concave Lens 600-1030nm F-20	`O-PLCC-12.7-BL126`	12.7 mm	815.0 nm	-20.0 mm	View
Plano-Concave Lens 515nm F-100	`O-PLCC-12.7-BL121`	12.7 mm	515.0 nm	-100.0 mm	View
Plano-Concave Lens 515nm F-25	`O-PLCC-12.7-BL120`	12.7 mm	515.0 nm	-25.0 mm	View
Plano-Concave Lens 650-1100nm F=-750	`O-PLCC-12.7-3.0-BL358`	12.7 mm	875.0 nm	-750.0 mm	View
Plano-Concave Lens 1050-2060nm F=-50	`O-PLCC-12.7-3.0-BL357`	12.7 mm	1555.0 nm	-50.0 mm	View
Plano-Concave Lens 650-1100nm F=-500	`O-PLCC-12.7-3.0-BL356`	12.7 mm	875.0 nm	-500.0 mm	View
Plano-Concave Lens 1050-2060nm F=-100	`O-PLCC-12.7-3.0-BL355`	12.7 mm	1555.0 nm	-100.0 mm	View
Plano-Concave Lens 650-1100nm F=-1000	`O-PLCC-12.7-3.0-BL354`	12.7 mm	875.0 nm	-1000.0 mm	View
Plano-Concave Lens 1000-1100nm F-200mm	`O-PLCC-12.7-3.5-BL136`	12.7 mm	1050.0 nm	-200.0 mm	View
Plano-Concave Lens 1000-1100nm F-150mm	`O-PLCC-12.7-3.5-BL135`	12.7 mm	1050.0 nm	-150.0 mm	View
Plano-Concave Lens 750-850nm F-100mm	`O-PLCC-25.4-3.8-BL133`	25.4 mm	800.0 nm	-100.0 mm	View
Plano-Concave Lens 750-850nm F-75mm	`O-PLCC-25.4-4.4-BL132`	25.4 mm	800.0 nm	-75.0 mm	View
Plano-Concave Lens 750-850nm F-50mm	`O-PLCC-25.4-5.8-BL131`	25.4 mm	800.0 nm	-50.0 mm	View
Plano-Concave Lens 650-1100nm F-100mm	`O-PLCC-25.4-4.0-BL130`	25.4 mm	875.0 nm	-100.0 mm	View
Plano-Concave Lens 615-1100nm F-300mm	`O-PLCC-25.4-4.0-BL129`	25.4 mm	857.5 nm	-300.0 mm	View
Plano-Concave Lens 615-1100nm F-200mm	`O-PLCC-25.4-4.0-BL128`	25.4 mm	857.5 nm	-200.0 mm	View
Plano-Concave Lens 532nm F-100mm	`O-PLCC-25.4-5.0-BL125`	25.4 mm	532.0 nm	-100.0 mm	View
Plano-Concave Lens 532nm F-100mm	`O-PLCC-25.4-3.0-BL124`	25.4 mm	532.0 nm	-100.0 mm	View
Plano-Concave Lens 532nm F-75mm	`O-PLCC-25.4-3.0-BL123`	25.4 mm	532.0 nm	-75.0 mm	View
Plano-Concave Lens 532nm F-50mm	`O-PLCC-25.4-3.0-BL122`	25.4 mm	532.0 nm	-50.0 mm	View
