Plano-Concave Lens, N-BK7, AR Coating: 700 nm-1100 nm MCC10610-B

MCC10610-B
$55.78
In Stock
Key Specifications
Wavelength 700.0nm
Diameter 25.4mm
LIDT 0.8J/cm²
Reflectance 0.5%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Plano-Concave Lens, N-BK7, AR Coating: 700 nm-1100 nm — Model MCC10610-B

Operating wavelength 700 nm-1100 nm, focal length -50.0 mm, Ø25.4 mm, substrate N-BK7.

Product Description

  • Optical Material: N-BK7
  • Operating Wavelength: 700 nm-1100 nm (AR Coating)
  • Application: Imaging, Beam Expansion or Reduction

The Plano-Concave Lens has one concave surface and one flat surface, featuring a negative focal length. It is commonly used for beam collimation, increasing (or decreasing) the focal length, or enlarging (or reducing) images. To minimize spherical aberration, when the incident beam is collimated, it should be directed onto the concave surface of the plano-concave lens. N-BK7 is the most common lens material, widely used in visible and near-infrared applications. In addition to N-BK7 plano-concave lenses, LBTEK also offers N-SF11, UV fused silica, and calcium fluoride plano-concave lenses. Due to its lower Abbe number, N-SF11 is often used to produce lenses with shorter focal lengths. UV fused silica exhibits excellent transmittance in the ultraviolet range and a low coefficient of thermal expansion, while calcium fluoride boasts an extremely high damage threshold and chemical inertness. LBTEK provides uncoated plano-concave lenses as well as lenses with three types of anti-reflection coatings: 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1650 nm. All our lenses undergo precision machining and strict quality control, ensuring that LBTEK delivers high-quality lens products to customers at reasonable prices.

Plano-Concave Lens, N-BK7, AR Coating: 700 nm-1100 nm

  • Substrate Material: N-BK7
  • Operating Wavelength: 700 nm-1100 nm (AR Coating)
  • Pre-installed Mechanical Housing
  • Application: Imaging, Beam Expansion or Reduction

LBTEK Plano-Concave Lens have a negative focal length and are commonly used in applications such as imaging or beam collimation. LBTEK plano-concave lenses are manufactured using N-BK7 glass that complies with RoHS standards. N-BK7 is the most commonly used material for high-quality optical components, primarily applied in visible and near-infrared fields. All circular lenses from LBTEK come pre-installed with standard lens tubes or lens mounting adapters. These mechanical components are engraved with product model, type, diameter, and focal length for easy identification of lens parameters by users.

Clear Aperture90% CA
Damage Threshold0.80J/cm2@980nm, 190fs, 100Hz, Ø12.684μm (100 Pulses)
Diameter Tolerance+0.00/-0.10 mm
Clear Aperture90% CA
Operating Wavelength700 nm-1100 nm
Diameter25.4 mm
Eccentricity≤3 arcmin
Design Wavelength587.6 nm
Damage Threshold0.80J/cm2@980nm, 190fs, 100Hz, Ø12.684μm (100 Pulses)
Low damage threshold detected (0.8 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download
Curve - N-BK7 UN
Curve - N-BK7 UN

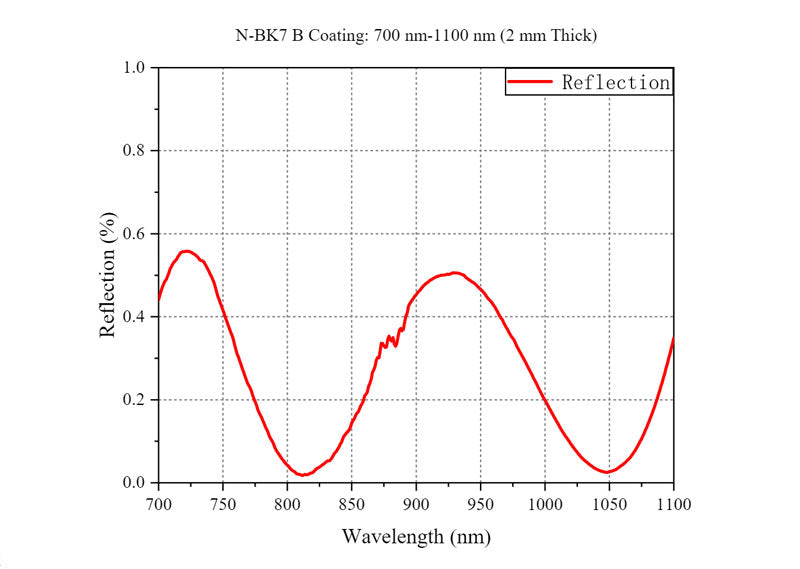

Curve - N-BK7 B
