What is the damage threshold of Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted CC20612-UV?

Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted CC20612-UV has a laser-induced damage threshold (LIDT) of 0.11 J/cm².

What are the physical dimensions of Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted CC20612-UV?

Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted CC20612-UV dimensions: Diameter: 25.4 mm.

What is the focal length of Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted CC20612-UV?

Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted CC20612-UV has a focal length of 75.0 mm.

WaveQuanta

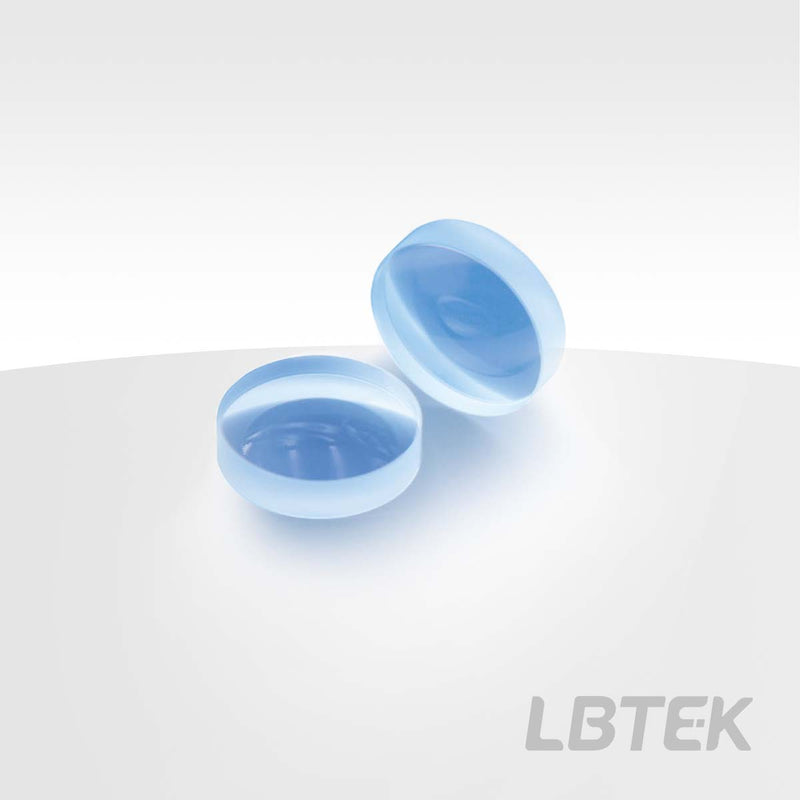

Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted CC20612-UV

Name: Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted CC20612-UV
Brand: WaveQuanta
SKU: CC20612-UV
Price: 145.78 SGD
Availability: InStock

CC20612-UV

$145.78

In Stock

Key Specifications

Wavelength 245.0nm

Diameter 25.4mm

LIDT 0.11J/cm²

Reflectance 0.5%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted — Model CC20612-UV

Operating wavelength 245 nm-400 nm, focal length -75.0 mm, Ø25.4 mm, substrate UV Fused Silica.

Product Description

Optical Material: UV Fused Silica
Application: Imaging, Beam Expansion or Reduction
Operating Wavelength: 245 nm-400 nm (AR Coating)

The plano-concave lens has one concave surface and one flat surface, featuring a negative focal length. It is commonly used for beam collimation, increasing (or decreasing) focal length, or expanding (or reducing) images. To minimize spherical aberration, when the incident beam is collimated, it should be directed onto the concave surface of the plano-concave lens. LBTEK chooses Ultraviolet-Grade Fused Silica (UVFS) as the substrate material for lenses because UVFS exhibits high transmittance in the deep ultraviolet spectrum and produces almost no laser-induced fluorescence. Additionally, UV fused silica offers better homogeneity and a lower coefficient of thermal expansion compared to N-BK7. Besides UVFS plano-concave lenses, LBTEK also provides Plano-Concave Lenses made of N-BK7, N-SF11, and calcium fluoride. N-BK7 is the most commonly used material for high-quality optical components, widely applied in visible and near-infrared applications. N-SF11 is characterized by its low Abbe number and high dispersion, while calcium fluoride boasts an extremely high damage threshold and chemical inertness. LBTEK offers uncoated UVFS Plano-Concave Lenses as well as lenses with four types of anti-reflection coatings: 245-400nm, 400-700nm, 700-1100nm, and 1100-1650nm. All our lenses undergo precision machining and strict quality control to ensure that LBTEK delivers high-quality lens products to customers at reasonable prices.

Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted

Substrate Material: UVFS
Operating Wavelength: 245 nm-400 nm
Application: Imaging, Beam Expansion or Reduction

LBTEK Plano-Concave Lenses have a negative focal length and are commonly used for image reduction or light divergence. Since UVFS has a lower Abbe number, LBTEK chooses Ultraviolet-Grade Fused Silica as the lens substrate material because UVFS exhibits high transmittance in the deep ultraviolet spectrum and produces almost no laser-induced fluorescence. Additionally, UV fused silica offers better homogeneity and a lower coefficient of thermal expansion compared to N-BK7. All circular lenses from LBTEK can be mounted in LBTEK Standard Lens Tubes, Fixed Lens Holders, and various Coaxial Mounting Plates. Customers can select the optimal mounting solution for different application scenarios.

Clear Aperture	90% CA
Damage Threshold	0.11J/cm2@355nm, 180.5fs, 100Hz, Ø6.558μm (100 Pulses)
Diameter Tolerance	+0.00/-0.10 mm
Clear Aperture	90% CA
Operating Wavelength	245 nm-400 nm
Diameter	25.4 mm
Eccentricity	≤3 arcmin
Design Wavelength	587.6 nm
Damage Threshold	0.11J/cm2@355nm, 180.5fs, 100Hz, Ø6.558μm (100 Pulses)

Low damage threshold detected (0.11 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.

Specification Sheet PDF — Download

3D Model (STL) STL — Download

Product Family: Plano-Concave Lens, UV fused silica, AR coating: 245 nm-400 nm (16 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted CC20305-UV	`CC20305-UV`	12.7 mm	90% CA	245 nm-400 nm	View
Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted CC20304-UV	`CC20304-UV`	12.7 mm	90% CA	245 nm-400 nm	View
Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted CC20307-UV	`CC20307-UV`	12.7 mm	90% CA	245 nm-400 nm	View
Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted CC20310-UV	`CC20310-UV`	12.7 mm	90% CA	245 nm-400 nm	View
Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted CC20312-UV	`CC20312-UV`	12.7 mm	90% CA	245 nm-400 nm	View
Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted CC20313-UV	`CC20313-UV`	12.7 mm	90% CA	245 nm-400 nm	View
Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted CC20317-UV	`CC20317-UV`	12.7 mm	90% CA	245 nm-400 nm	View
Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm, Unmounted CC20612-UV Current	`CC20612-UV`	25.4 mm	90% CA	245 nm-400 nm
Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm MCC20305-UV	`MCC20305-UV`	12.7 mm	90% CA	245 nm-400 nm	View
Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm MCC20304-UV	`MCC20304-UV`	12.7 mm	90% CA	245 nm-400 nm	View
Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm MCC20307-UV	`MCC20307-UV`	12.7 mm	90% CA	245 nm-400 nm	View
Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm MCC20310-UV	`MCC20310-UV`	12.7 mm	90% CA	245 nm-400 nm	View
Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm MCC20312-UV	`MCC20312-UV`	12.7 mm	90% CA	245 nm-400 nm	View
Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm MCC20313-UV	`MCC20313-UV`	12.7 mm	90% CA	245 nm-400 nm	View
Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm MCC20317-UV	`MCC20317-UV`	12.7 mm	90% CA	245 nm-400 nm	View
Plano-Concave Lens, UVFS, AR coating: 245 nm-400 nm MCC20612-UV	`MCC20612-UV`	25.4 mm	90% CA	245 nm-400 nm	View
