Plano-convex cylindrical lens, UVFS, AR coating: 350 nm-700 nm CY207R-F125-A

CY207R-F125-A
$299.00
In Stock
Key Specifications
Wavelength 350.0nm
Diameter 25.4mm
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Plano-convex cylindrical lens, UVFS, AR coating: 350 nm-700 nm — Model CY207R-F125-A

Operating wavelength 350 nm-700 nm, focal length 125.0 mm, Ø25.4 mm, substrate UVFS.

Product Description

  • Optical Material: UVFS
  • Working Wavelength: 350 nm-700 nm (AR Coating)
  • Circular geometry, housed in mechanical mount
  • Applications: Imaging, unidirectional beam collimation, beam shaping

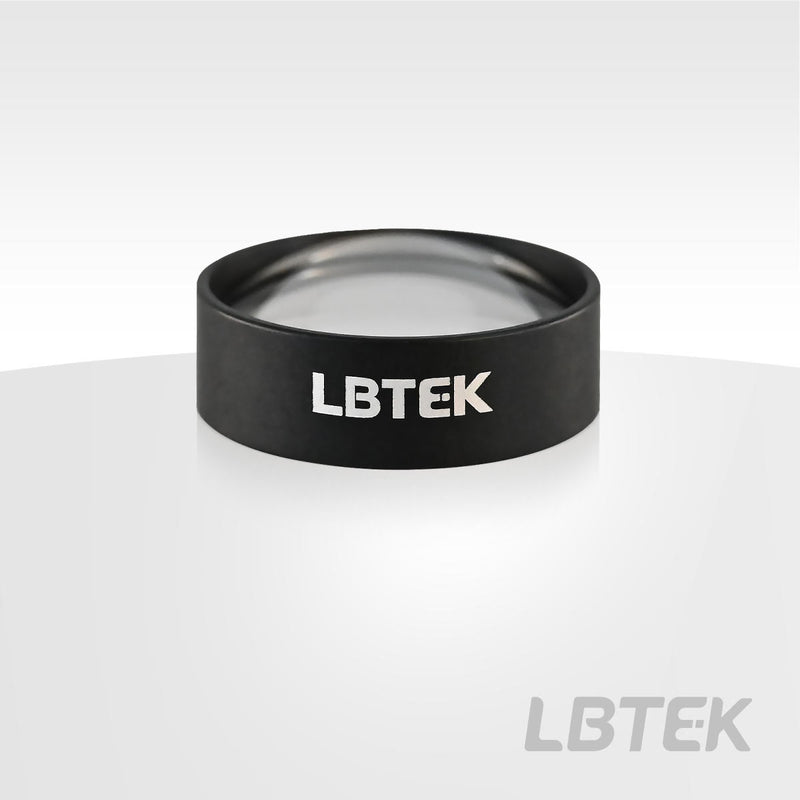

LBTEK Plano-convex circular cylindrical lens features one flat surface and one concave cylindrical surface, with a positive focal length. Unlike spherical lenses, cylindrical lenses act on the light beam in only one direction. Cylindrical lenses are commonly used for beam shaping, with typical applications including collimation using dual cylindrical lens assemblies and circularizing the output beam of laser diodes. To minimize spherical aberration, when using plano-convex circular cylindrical lenses to diverge a collimated beam into a spot, the beam should be incident on the curved surface of the lens. LBTEK selects lenses made from UVFS, which are widely used in applications ranging from ultraviolet to near-infrared wavelengths. LBTEK offers uncoated plano-convex circular cylindrical lenses as well as two types of anti-reflection coated lenses for 245-400 nm and 350-700 nm ranges. All our lenses undergo precision machining and strict quality control to ensure high-quality products at reasonable prices for our customers.

Plano-convex cylindrical lens, UVFS, AR coating: 350 nm-700 nm

  • Element Material: UVFS
  • Circular geometry, mechanical housing installed
  • Operating Wavelength: 350 nm-700 nm (AR coating)

LBTEK plano-convex cylindrical lenses are ideal for one-dimensional magnification applications. Unlike spherical lenses, cylindrical lenses act on the light beam in only one direction. Typical applications include collimating and circularizing laser diode output beams using dual cylindrical lens setups. Unlike standard plano-convex lenses, these plano-convex cylindrical lenses are mounted in 25.4mm diameter anodized black aluminum mounting rings, allowing for easy integration with standard SM1 lens tubes or 25.4 mm lens mounts.

Clear Aperture90% CA
Operating Wavelength350 nm-700 nm
Diameter25.4 mm
Eccentricity≤ 3 arcmin
Design Wavelength587.6 nm
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download
