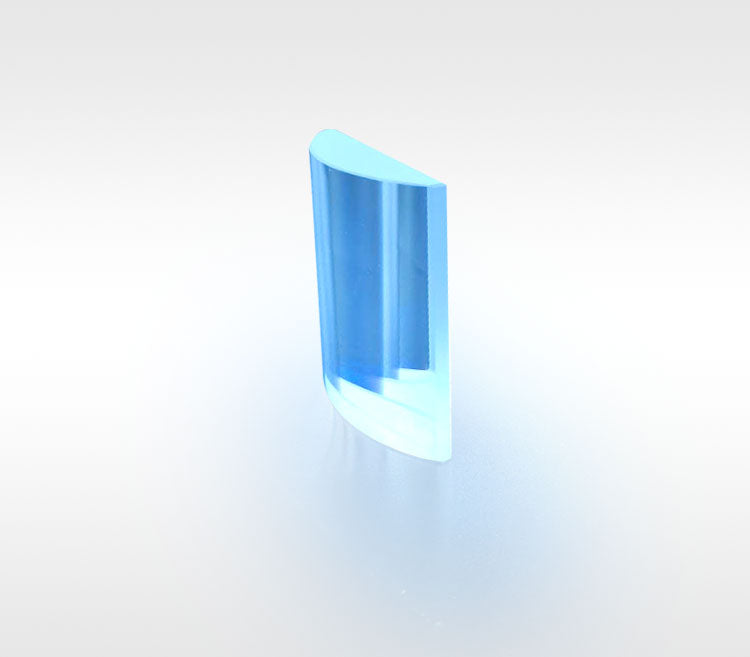

Plano-Convex Cylindrical Lenses, N-BK7, AR coating: 1100 nm-1650 nm CY104109-C

Plano-Convex Cylindrical Lenses, N-BK7, AR coating: 1100 nm-1650 nm — Model CY104109-C

Operating wavelength 1100 nm-1650 nm, focal length 20.0 mm, substrate N-BK7.

Product Description

• Optical Material: N-BK7

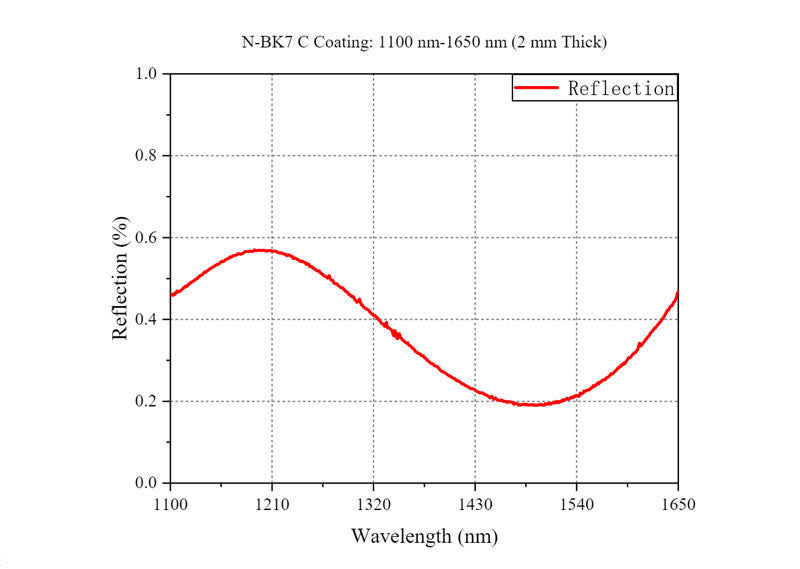

• Working Wavelength: 1100 nm-1650 nm (AR Coating)
• Application: Imaging, Unidirectional Beam Collimation, Beam Shaping

The plano-convex cylindrical lens has one flat surface and one cylindrical surface, with a positive focal length. Unlike spherical lenses, cylindrical lenses only act on the beam in one direction. Cylindrical lenses are generally used for beam shaping, with typical applications including including collimation with dual cylindrical lens assemblies and circularizing the output beam of laser diodes. To reduce spherical aberration, when a plano-convex cylindrical lens is used to focus a collimated beam into a line, the beam should be incident on the curved surface of the lens; when collimating a line source, the beam should be incident on the flat surface of the lens. LBTEK chooses to use N-BK7 to manufacture various lenses, as N-BK7 is the most common lens material, widely used in visible and near-infrared applications. LBTEK offers uncoated plano-convex cylindrical lenses as well as lenses with three types of anti-reflection coatings: 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1650 nm. Our lenses are finely processed with strict quality control, ensuring that LBTEK provides high-quality lens products to users at reasonable prices.

Plano-Convex Cylindrical Lenses, N-BK7, AR coating: 1100 nm-1650 nm

• Substrate Material: N-BK7
• Working Wavelength: 1100 nm-1650 nm (AR Coating)

Unlike spherical lenses, cylindrical lenses act on the light beam in only one direction. LBTEK plano-convex cylindrical lenses are ideal for one-dimensional magnification applications. Typical applications include collimation with dual cylindrical lens assemblies and circularizing the output beam of laser diodes. To minimize spherical aberration, when plano-convex cylindrical lenses are used to focus a collimated beam into a line, the beam should be incident on the curved surface of the lens; when collimating a linear light source, the beam should be incident on the planar surface of the lens.
