What is the damage threshold of Plano-convex cylindrical lens, N-BK7, AR coating: 700 nm-1100 nm CY108112-B?

Plano-convex cylindrical lens, N-BK7, AR coating: 700 nm-1100 nm CY108112-B has a laser-induced damage threshold (LIDT) of 0.8 J/cm².

What is the focal length of Plano-convex cylindrical lens, N-BK7, AR coating: 700 nm-1100 nm CY108112-B?

Plano-convex cylindrical lens, N-BK7, AR coating: 700 nm-1100 nm CY108112-B has a focal length of 50.0 mm.

WaveQuanta

Plano-convex cylindrical lens, N-BK7, AR coating: 700 nm-1100 nm CY108112-B

Name: Plano-convex cylindrical lens, N-BK7, AR coating: 700 nm-1100 nm CY108112-B
Brand: WaveQuanta
SKU: CY108112-B
Price: 163.99 SGD
Availability: InStock

CY108112-B

$163.99

In Stock

Key Specifications

Wavelength 700.0nm

LIDT 0.8J/cm²

Reflectance 0.5%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Plano-convex cylindrical lens, N-BK7, AR coating: 700 nm-1100 nm — Model CY108112-B

Operating wavelength 700 nm-1100 nm, focal length 50.0 mm, substrate N-BK7.

Product Description

Optical Material: N-BK7
Operating Wavelength: 700 nm-1100 nm (AR Coating)
Application: Imaging, Unidirectional Beam Collimation, Beam Shaping

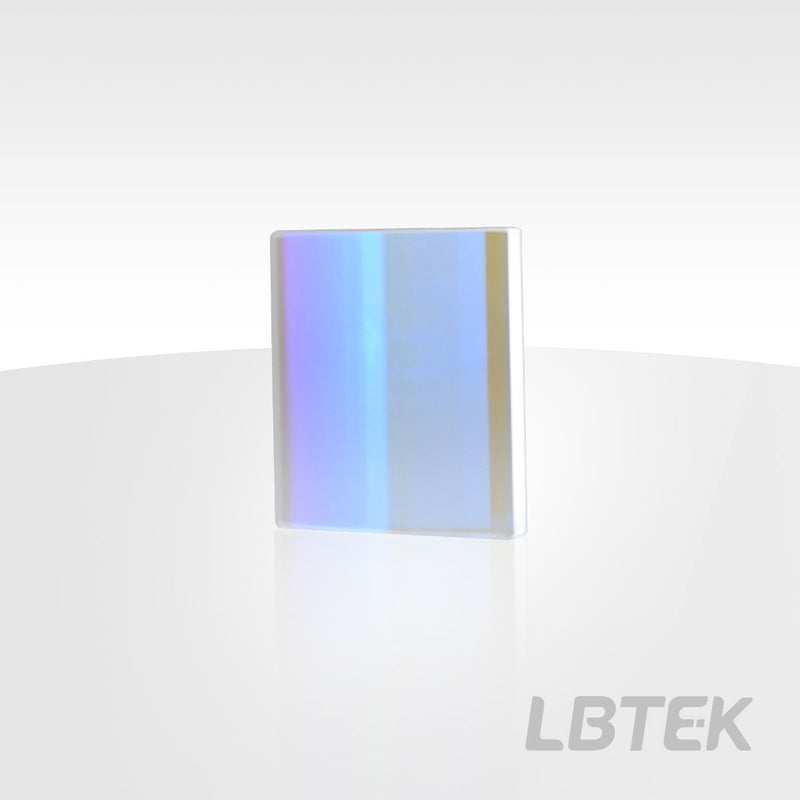

The Plano-Convex Cylindrical Lens has one flat surface and one cylindrical surface, with a positive focal length. Unlike spherical lenses, cylindrical lenses only act on the beam in one direction. Cylindrical lenses are generally used for beam shaping, with typical applications including collimation and circularization of laser diode output beams using dual cylindrical lens setups. To reduce spherical aberration, when a plano-convex cylindrical lens is used to focus a collimated beam into a line, the beam should be incident on the curved surface of the lens; when collimating a line source, the beam should be incident on the flat surface of the lens. LBTEK chooses to use N-BK7 to manufacture various lenses. N-BK7 is the most common lens material, widely used in visible and near-infrared applications. LBTEK offers Uncoated Plano-Convex Cylindrical Lenses as well as lenses with three types of anti-reflection coatings: 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1650 nm. Our lenses are finely processed with strict quality control, ensuring that LBTEK provides users with high-quality lens products at reasonable prices.

Plano-convex cylindrical lens, N-BK7, AR coating: 700 nm-1100 nm

Substrate Material: N-BK7
Operating Wavelength: 700 nm-1100 nm (AR Coating)

Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha

Clear Aperture	90%
Damage Threshold	0.80J/cm2@980nm, 190fs, 100Hz, Ø12.684μm (100 Pulses)
Clear Aperture	90%
Operating Wavelength	700 nm-1100 nm
Eccentricity	≤5 arcmin
Design Wavelength	587.6 nm
Substrate Material	H x L= 30.0 mm x 32.0 mm
Damage Threshold	0.80J/cm2@980nm, 190fs, 100Hz, Ø12.684μm (100 Pulses)

Low damage threshold detected (0.8 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.

Specification Sheet PDF — Download

3D Model (STL) STL — Download

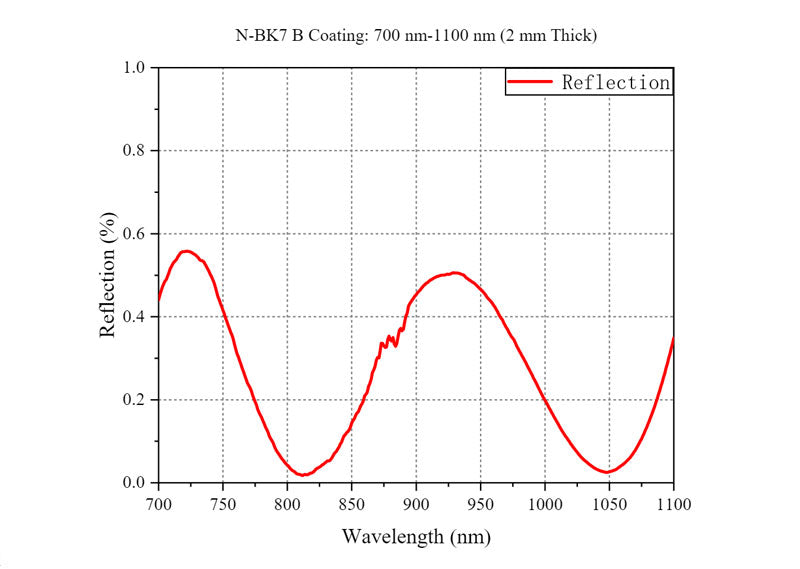

Curve - N-BK7 UN

Curve - N-BK7 B

Product Family: Plano-Convex Cylindrical Lens, N-BK7, AR coating: 700 nm-1100 nm (21 variants)
