Plano-Convex Cylindrical Lens, N-BK7, Uncoated: 350 nm-2.0 μm CY104211

Plano-Convex Cylindrical Lens, N-BK7, Uncoated: 350 nm-2.0 μm — Model CY104211

Operating wavelength 350 nm-2.0 μm, focal length 40.0 mm, substrate N-BK7.

Product Description

• Optical Material: N-BK7
• Operating Wavelength: 350 nm-2.0 µm (uncoated)
• Application: Imaging, unidirectional beam collimation, beam shaping

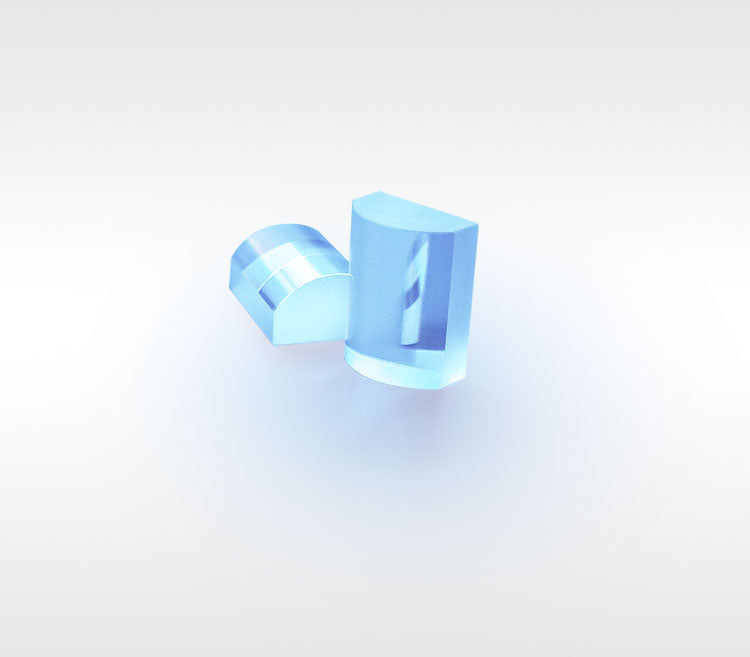

The Plano-Convex Cylindrical Lens has one flat surface and one cylindrical surface, with a positive focal length. Unlike spherical lenses, cylindrical lenses only act on the beam in one direction. Cylindrical lenses are generally used for beam shaping, with typical applications including collimation and circularization of laser diode output beams using dual cylindrical lens assemblies. To reduce spherical aberration, when a plano-convex cylindrical lens is used to focus a collimated beam into a line, the beam should be incident on the curved surface of the lens; when collimating a line source, the beam should be incident on the flat surface of the lens. LBTEK chooses to manufacture various lenses using N-BK7, the most common lens material widely used in visible and near-infrared applications. LBTEK offers Uncoated Plano-Convex Cylindrical Lenses as well as lenses with three types of anti-reflection coatings: 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1650 nm. Our lenses are finely processed with strict quality control, ensuring that LBTEK provides users with high-quality lens products at reasonable prices.

Plano-Convex Cylindrical Lens, N-BK7, Uncoated: 350 nm-2.0 μm

• Substrate Material: N-BK7
• Operating Wavelength: 350 nm-2.0 µm (uncoated)

Unlike spherical lenses, cylindrical lenses act on the light beam in only one direction. LBTEK Plano-Convex Cylindrical Lenses are ideal for one-dimensional magnification applications. Typical applications include collimation and circularization of laser diode output beams using dual cylindrical lens assemblies. To minimize spherical aberration, when plano-convex cylindrical lenses are used to focus a collimated beam into a line, the beam should be incident on the curved surface of the lens; when collimating a linear light source, the beam should be incident on the planar surface of the lens.
