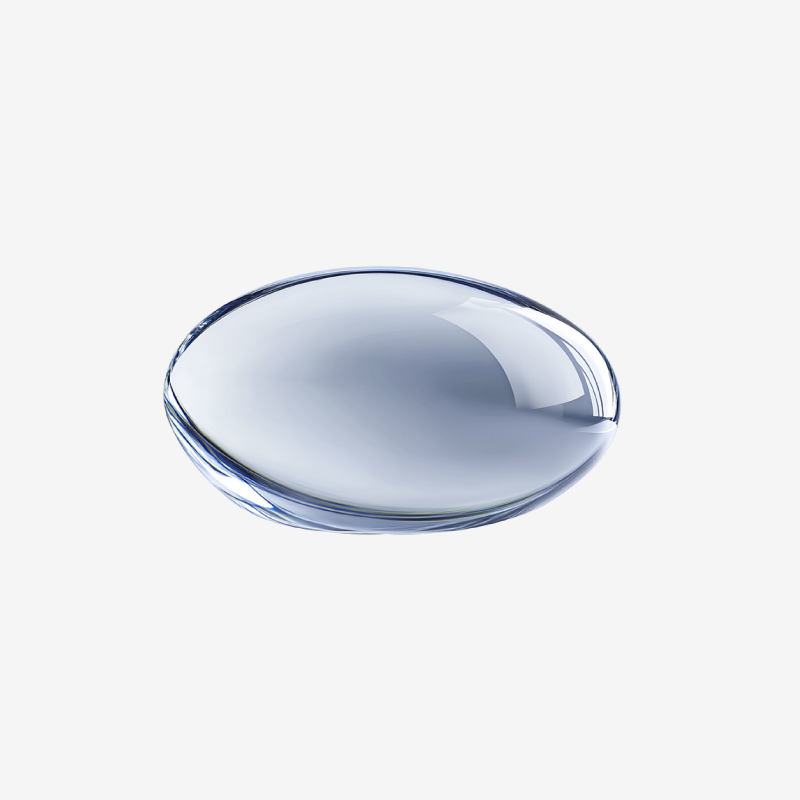

WaveQuanta Plano-Convex Lens
WAVEQUANTA

Plano-Convex Lens F2200

O-PLCX-25.4-2.0-BL214
$149.60
In Stock
Key Specifications
Diameter 25.4mm
Request Quote

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening Gaussian Beam Calculator Model beam propagation through your optical system
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Nonlinear Crystals Optomechanics
RoHS REACH

Overview

Plano-convex lens for ultrafast laser applications. Positive focal length element for beam focusing and collimation in ultrafast laser systems. AR coating reduces reflection loss for high transmission.

Applications

  • Beam focusing for laser machining
  • Collimation in ultrafast systems
  • Optical relay imaging
  • Telescope construction (positive element)

Construction & Performance

  • Substrate: UVFS
  • Coating: Uncoated (Uncoated)
  • Diameter: 25.4 mm (+0/-0.1mm)
  • Thickness: 2.0 mm (+0/-0.1mm)
  • Focal Length: 2200.0 mm
  • Lens Shape: Plano-Convex

Storage & Handling

Store in clean, dry environment at 20-25°C and 40-60% relative humidity. Handle with lint-free gloves and avoid mechanical contact with optical surfaces. Clean using optical-grade solvents and lens tissue when necessary.

Focal Length2200.0 mm
Diameter25.4 mm (+0/-0.1mm)
Thickness2.0 mm (+0/-0.1mm)
SubstrateUVFS
Lens ShapePlano-Convex
Coating TypeUncoated
Coating SpecificationUncoated
Surface Flatnessλ/8@633nm
Surface Quality40-20
No documents available for this product.
No CAD drawings available for this product.
