WaveQuanta

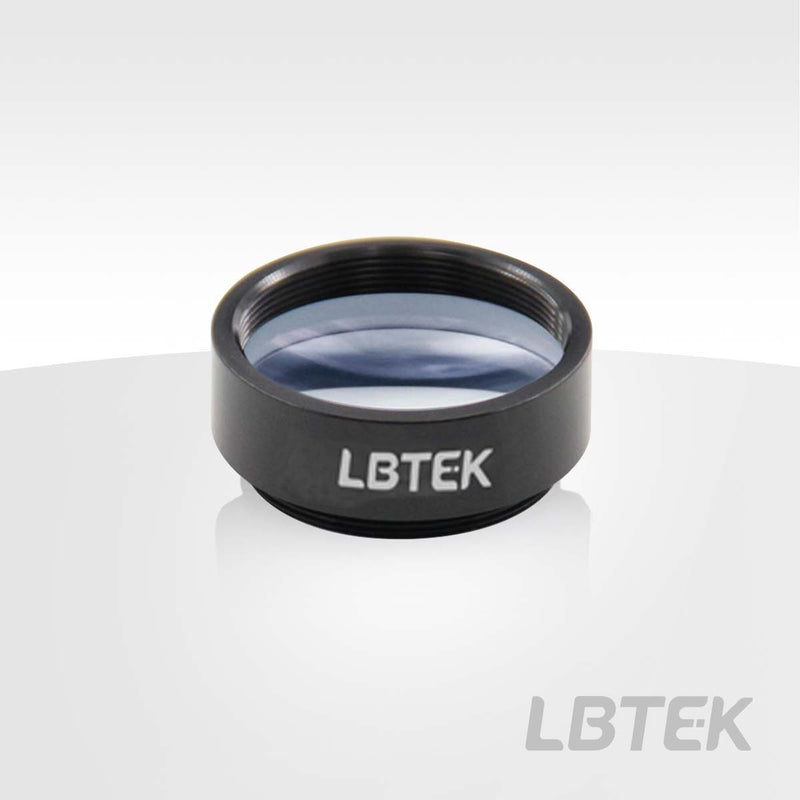

Plano-convex lens, UVFS, AR coating: 1050 nm-1700 nm, with mount MCX20616-C

MCX20616-C
$163.25
In Stock
Key Specifications
Wavelength 1050.0nm
Diameter 25.4mm
Reflectance 0.5%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Plano-convex lens, UVFS, AR coating: 1050 nm-1700 nm, with mount — Model MCX20616-C

Operating wavelength 1050 nm-1700 nm, focal length 175.6 mm, Ø25.4 mm, substrate UV Fused Silica.

Product Description

  • Optical Material: UV Fused Silica
  • Operating Wavelength: 1050 nm-1700 nm
  • Application: Imaging, Beam Expansion or Reduction

LBTEK plano-convex lenses are made from UV-grade fused silica glass, offering better homogeneity and a lower coefficient of thermal expansion compared to N-BK7 glass, making them suitable for ultraviolet and near-infrared wavelength applications. These lenses have a positive focal length and are commonly used in imaging or beam collimation applications. LBTEK provides both unmounted and mounted plano-convex lenses, with an operating wavelength range of 1050 nm to 1700 nm and available in diameters of 12.7 mm, 25.4 mm, and 50.8 mm. The mounted lenses are pre-installed in standard lens barrels, with the product model, type, diameter, and focal length engraved on the barrel surface for easy identification of lens parameters. Additionally, LBTEK supports flexible customization of specifications to meet diverse application needs. For more details, please contact LBTEK technical support.

Plano-convex lens, UVFS, AR coating: 1050 nm-1700 nm, with mount

  • Substrate Material: UVFS
  • Operating Wavelength: 1050 nm-1700 nm
  • Application: Imaging, Collimation, Beam Expansion
  • Pre-installed Mechanical Housing

LBTEK plano-convex lenses are made of UV fused silica glass, which offers better homogeneity and a lower coefficient of thermal expansion compared to N-BK7 glass, making them suitable for ultraviolet and near-infrared wavelength ranges. LBTEK plano-convex lenses have a positive focal length and are commonly used in applications such as imaging or beam collimation. LBTEK mounted lenses are pre-installed in standard lens tubes, with the product model, type, diameter, and focal length engraved on the tube surface for easy identification of lens parameters.

Clear Aperture90% CA
Operating Wavelength1050 nm-1700 nm
Diameter25.4 mm
Eccentricity≤3 arcmin
Design Wavelength587.6 nm
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download
